Simple Logger ® II Model AL834 (4-Channel, TRMS, Bluetooth, AmpFlex 300/3000Aac)

Description



Obsolete Replaced with model DL914 (#2153.62)

https://www.weschler.com/product/aemc-data-loggers-3-4-channel-wi-fi-usb-models-dl913-dl914/

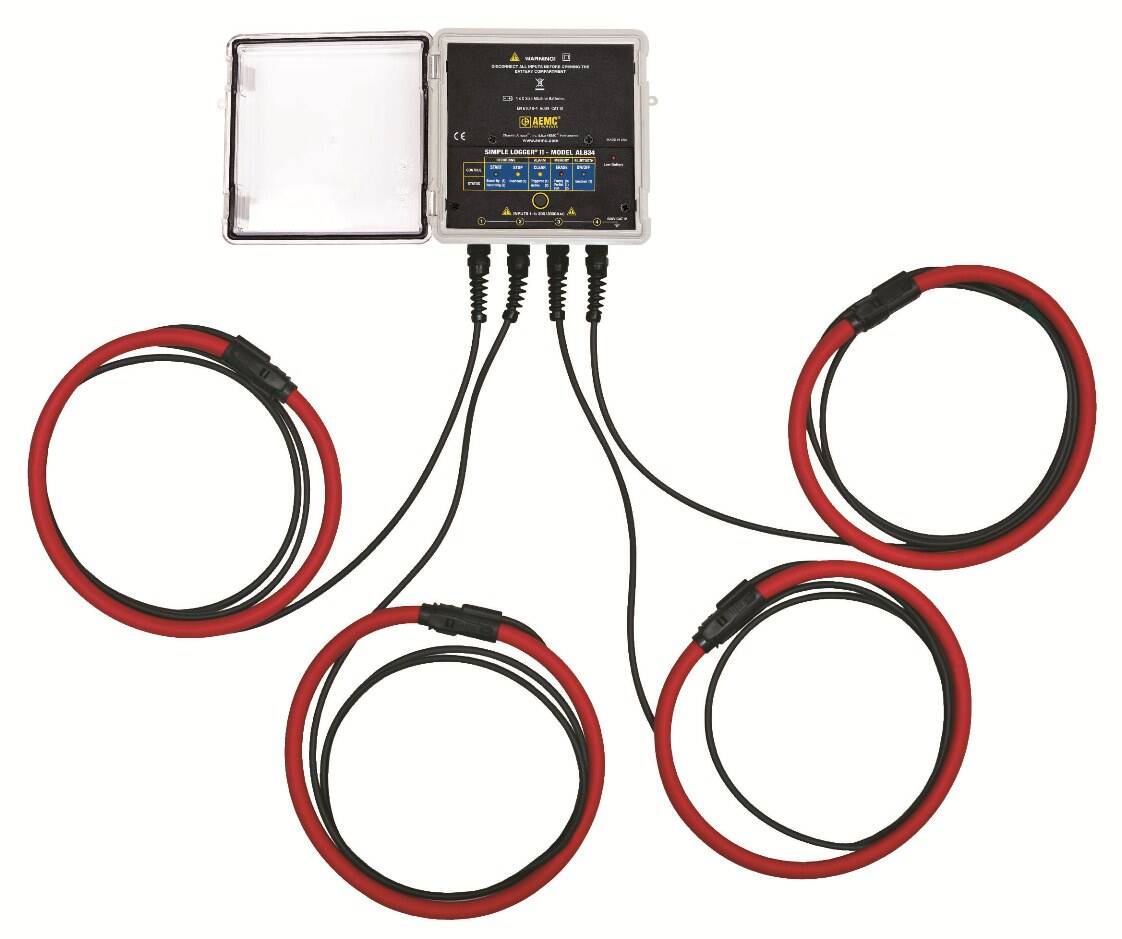

The Simple Logger II Model AL834 is a 4-channel AC current data logger with four integral flexible current sensors. Each sensor is 24 inches long and capable of wrapping around an 8-inch conductor. The AL834 has two measurement ranges of up to 300 and 3000 Amps. Both the data logger housing and the current sensors are water-resistant rated to IP 65. A selection of data storage modes, as well as data sampling rates, is user programmable through the DataView application software provided. Up to 1,000,000 measurements can be stored in internal non-volatile memory.

The Model AL834 is powered by four C cell alkaline batteries capable of providing six months or longer recording time. Data storage rates as fast as 8 per second are user-programmable. Communication with DataView software is accomplished through wireless Bluetooth technology. The Bluetooth adapter, provided, facilitates this communication link.

Features

  • Includes four integral AmpFlex flexible current probes that will measure from up to 3000A TRMS with 0.5A resolution
  • Dual range 300/3000A user selectable per channel
  • 64 samples per cycle
  • Programmable storage rates from 125ms to 1 per day
  • 4 user-selectable storage modes
  • Stores up to 1,000,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries for a period of up to 180 days
  • Lightweight, compact and weatherproof
  • 6 LED indicators quickly and clearly display logger status
  • Wireless Bluetooth communication
  • EN 61010-1; 600V CAT IV, 1000V CAT III
Simple Logger Power Logger

Includes: 4 C-cell Alkaline batteries, 4 – Integral 6″ MiniFlex flexible current probes, DataView software.

AEMC-AL834-DataSheet
