AEMC Data Loggers 3 & 4 Channel Wi-Fi / USB Models DL913 & DL914

Description

The DL913 and DL914 are easy-to-operate, rugged data loggers that can be used both indoors and outdoors. Recorded data is stored in the instrument’s internal memory. This data can then be downloaded to a computer using a Wi-Fi or USB connection. There, the data can be analyzed using the DataView software.

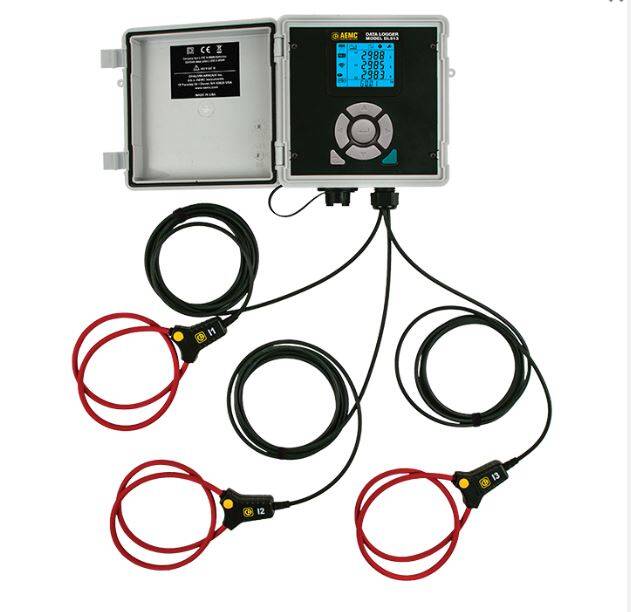

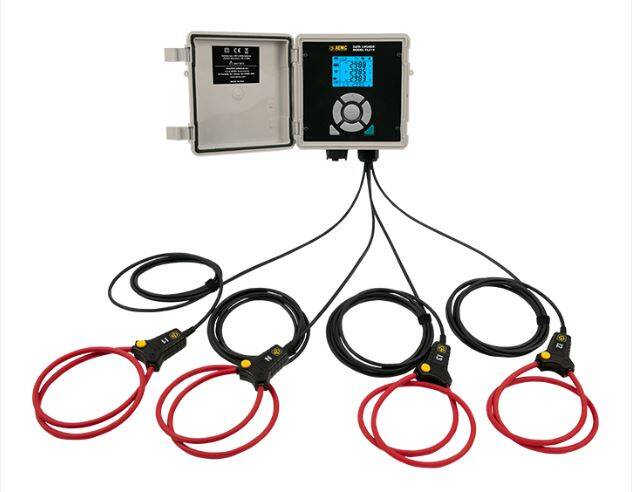

The Model DL913 (3-channel) and Model DL914 (4-channel) AC Current Data Loggers include an integral flexible current sensor for each channel. The sensor is 24″ (610mm) long and capable of wrapping around a 7.64″ (194mm) conductor. These data loggers have two measurement ranges of 300 and 3000 Amps. Both the data logger housing and the current sensors are water resistant and rated to IP 67. A selection of data storage modes, as well as data sampling rates, are user-programmable through the DataView® software that is included with the unit. Most of the setup can also be done from the keypad and LCD display on the instrument. Data storage rates as fast as once per second are available. Measurements are stored in internal nonvolatile memory.

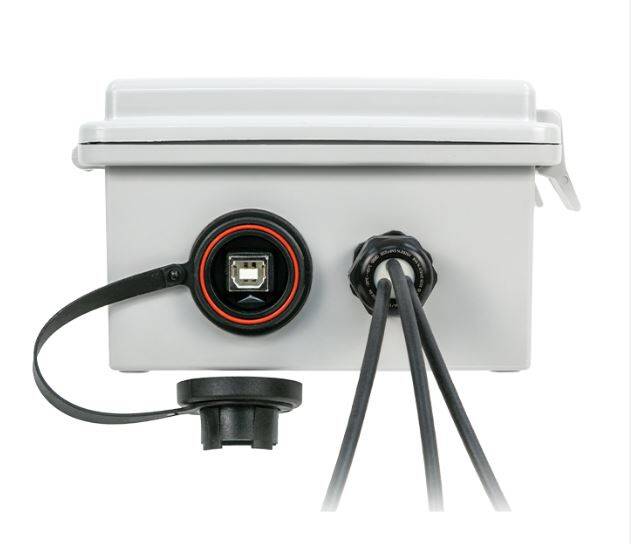

Communication is done through a USB port or wireless Wi-Fi and it is powered by two rechargeable NiMH batteries. The instrument can also be externally powered through the USB port.

FEATURES

  1. Simple-to-use, 3 (DL913) and 4 (DL914) channel AC current data loggers
  2. 4th channel for neutral current monitoring (Model DL914)
  3. Includes 3 (DL913) or 4 (DL914) integral 24-inch flexible current sensors
  4. Current measurements from 500 mA up to 3600 A
  5. LCD displays real-time measurements and parameters such as memory, power, and communication status
  6. Front panel navigation of configuration options and measurement screens
  7. Built-in web server for remote monitoring
  8. Extended recording mode for increased battery life
  9. Battery and/or USB-powered
  10. Frequency measurements
  11. Wi-Fi and USB communications
  12. Waterproof IP67 rated (USB cap on, cover closed)

APPLICATIONS

  1. Single/Split-phase and 3- or 4-phase load monitoring
  2. Neutral and ground current monitoring
  3. Intermittent problem detection
  4. Machine load monitoring / Load profiling
  5. Fault current detection

PRODUCT INCLUDES

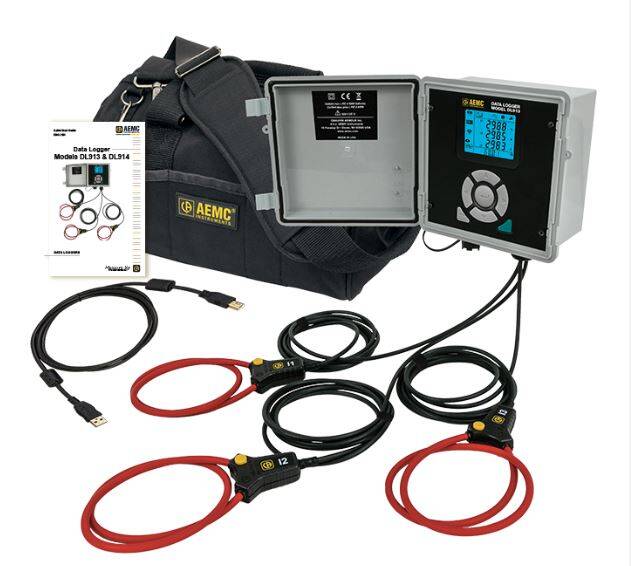

Includes small classic tool bag, 10 ft USB Type A to Type B cable, (4) stainless steel mounting brackets, (4) stainless steel M4 machine screws, USB power adapter, quick start guide, and USB thumb drive with DataView® software and user manual.

DL913-914_Datasheet                    DL913-914_Brochure

SKU: N/A Categories: , ,

products found
Item # Model Description Price
AE/2153.62DL9144-channel, TRMS, MiniFlex® 300/3000 A, Wi-Fi, DataView® Software$1,999.00
AE/2153.61DL9133-channel, TRMS, MiniFlex® 300/3000 A, Wi-Fi, DataView® Software$1,799.00
