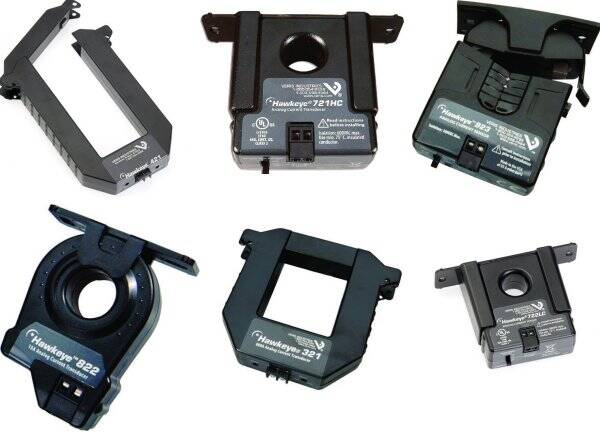

Veris AC Current Transducers
Description
Analog output current sensors providing a signal corresponding to actual amperage draw of the monitored load. Provided in a wide range of amperages and available with convenient slide switch range selection.
- Solid & split core styles
- Ranges from 10 to 2400A
- DC V & 4-20 mA outputs
- Self or loop powered
- Multi-range models for versatility (switch selectable range)
- Removable & adjustable bracket for installation flexibility
- 100% solid state, no moving parts to fail
- 5 year warranty
Show Advanced Filters
products found
| Item # | Range (AC Amperes) | Output (DC) | Housing | Window (in.) | Range Select |
|---|---|---|---|---|---|
| H721LC | 10/20/40 | 4-20mA | Solid-Core | 0.7 | switch |
| H723LC | 10/20/40 | 0-10V | Solid-Core | 0.7 | switch |
| H722LC | 10/20/40 | 0-5V | Solid-Core | 0.7 | switch |
| H822 | 10 | 0-5V | Solid-Core | 0.7 | switch |
| H822-20 | 20 | 0-5V | Solid-Core | 0.7 | switch |
| H721HC | 50/100/200 | 4-20mA | Solid-Core | 0.7 | switch |
| H722HC | 50/100/200 | 0-5V | Solid-Core | 0.7 | switch |
| H723HC | 50/100/200 | 0-10V | Solid-Core | 0.7 | switch |
| H921 | 30/60/120 | 4-20mA | Split-Core | 0.8 | switch |
| H922 | 30/60/120 | 0-5V | Split-Core | 0.8 | switch |
| H923 | 20/100/150 | 0-10V | Split-Core | 0.8 | switch |
| H221 | 100 to 300 | 4-20mA | Split-Core | 1.4 | adjustment pot |
| H321 | 300 to 800 | 4-20mA | Split-Core | 2.5 | adjustment pot |
| H421 | 1000 to 2400 | 4-20mA | Split-Core | 2.5 | adjustment pot |
