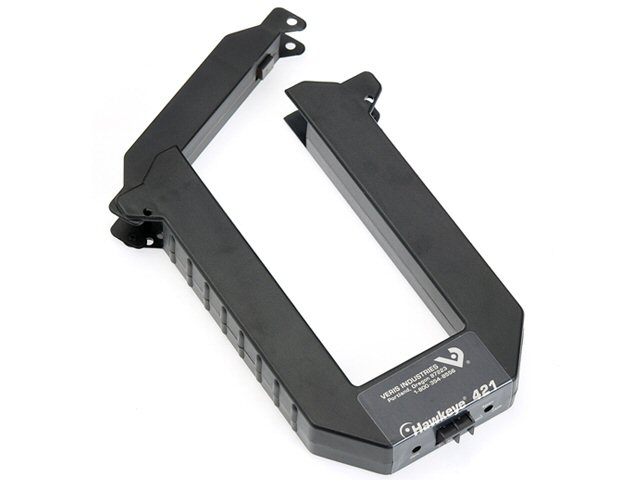

Item #H421, Veris AC Current Transducers

Analog output current sensors providing a signal corresponding to actual amperage draw of the monitored load. Provided in a wide range of amperages and available with convenient slide switch range selection.

  • Solid & split core styles
  • Ranges from 10 to 2400A
  • DC V & 4-20 mA outputs
  • Self or loop powered
  • Multi-range models for versatility (switch selectable range)
  • Removable & adjustable bracket for installation flexibility
  • 100% solid state, no moving parts to fail
  • 5 year warranty
Veris AC Current Transducers Specs

Catalog-Page-99b          H221-H321-H421        H721-H921

H722-H822-H922           H723-H923

Request a Quote

Specifications

Range (AC Amperes)
1000 to 2400
Output (DC)
4-20mA
Housing
Split-Core
Window (in.)
2.5
Range Select
adjustment pot
Size (in)
6.0x8.1x1.1
