mLine 8 Channel Scanner with Relays – KEP

Description

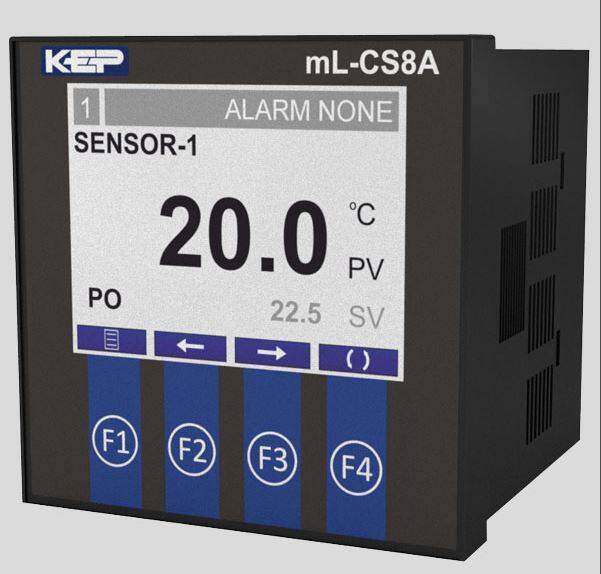

The mL-CS8A series 8 channel analog scanners are designed for measuring and communicating process values. They can be used in many applications with their 0-20mA, 4-20mA or 0-10VDC process input, relay outputs, selectable alarm functions, RS-232 / RS-485 communications.

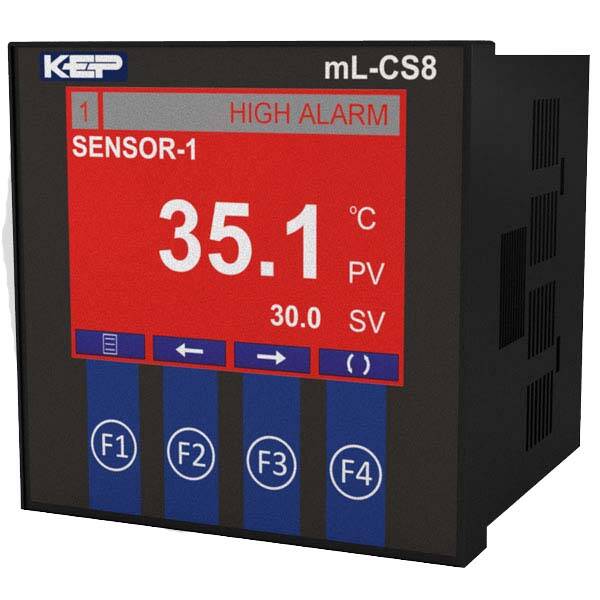

The mL-CS8 series 8 channel temperature scanners are designed for measuring and communicating process temperatures. They can be used in many applications with their Pt100 RTD inputs, alarm outputs, selectable alarm functions, RS-232 / RS-485 communications.

Features

  • 320 x 240 pixel TFT LCD display
  • 8 Analog inputs
  • ON-OFF control
  • Relay or (pnp “source”) transistor output
  • Sensor error detection
  • Adjustable temperature offset
  • 3 Different alarm and pre-alarm types for each channel (High, Low and Band Alarms)
  • User defined channel labels
  • Display scan modes
  • RS-232 and RS-485 with ModBus RTU communication protocol
  • Password protection for programming mode
8 channel analog scanners

mL-CS8-Datasheet                                mL-CS8A-Datasheet

This product is currently out of stock and unavailable.


products found
Item # Description
mL-CS8A8 CHANNEL ANALOG SCANNER WITH 10 RELAYS
mL-CS88 CHANNEL RTD PT-100 SCANNER WITH 10 RELAYS
Sorry, no products were found fitting that criteria. Please widen your search or reset item filters now
