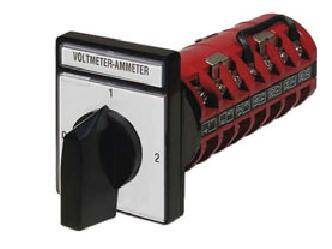

Ammeter Switches – Grounded CT, Grounded Ammeter – Control Switches
Description
Switch current transformer secondaries to AC ammeters.
Ammeter switches are shorting type (make before break).
Approvals: UL, CSA, CE.
Rotary cam switches series N have been developed to the latest achievements in the field of switching devices through the application of high quality insulation materials and contacts made with silver alloys. Their advantages are: high making and breaking capacities, electrical and mechanical endurance and small dimensions. The rotary cam switches are intended for multiple switching operations in main as well as in auxiliary circuits.
- Motor switches: They are designed for direct-online starting and stopping of single-phase and three-phase motors. They also come out as star-delta switches, reversing switches, pole-change over motor switches
- Auxiliary circuits: They are assembled in compliance with the switching program according to preference: switches for control, signaling and measuring circuits
- Switches, selector switches and step switches e.g. for transformers and welding apparatuses
- Group switches e.g. for switching operations of resistors and heaters
- Control switch with automatic return
The rotary cam switches can have 12 control positions and 12 switching elements (24 contacts) maximum and can be made with turning angle of 30˚, 45˚, 60˚ and 90˚.


Show Advanced Filters
products found
Item # | Size | Switch Positions | Mounting |
---|---|---|---|
N25-61384-01 | 25A, 600V, 10 AWG | CT1, CT2, CT3 | 64mm plate, 48mm hole pattern |
N25-61384-00 | 25A, 600V, 10 AWG | CT1, CT2, CT3 | 48mm plate, 36mm hole pattern |
N25-61326-01 | 25A, 600V, 10 AWG | CT1, CT2, CT3, CT4 | 64mm plate, 48mm hole pattern |
N25-61326-00 | 25A, 600V, 10 AWG | CT1, CT2, CT3, CT4 | 48mm plate, 36mm hole pattern |
N25-61325-00 | 25A, 600V, 10 AWG | CT1, CT2, CT3 | 48mm plate, 36mm hole pattern |
N20-61326-01 | 20A, 600V, 12 AWG | CT1, CT2, CT3, CT4 | 64mm plate, 48mm hole pattern |
N20-61321-00 | 20A, 600V, 12 AWG | CT1 On/Off | 48mm plate, 36mm hole pattern |
N25-61325-01 | 25A, 600V, 10 AWG | CT1, CT2, CT3 | 64mm plate, 48mm hole pattern |
N20-61326-00 | 20A, 600V, 12 AWG | CT1, CT2, CT3, CT4 | 48mm plate, 36mm hole pattern |
N20-61325-01 | 20A, 600V, 12 AWG | CT1, CT2, CT3 | 64mm plate, 48mm hole pattern |
N20-61384-01 | 20A, 600V, 12 AWG | CT1, CT2, CT3 | 64mm plate, 48mm hole pattern |
N20-61321-01 | 20A, 600V, 12 AWG | CT1 On/Off | 64mm plate, 48mm hole pattern |
N20-61384-00 | 20A, 600V, 12 AWG | CT1, CT2, CT3 | 48mm plate, 36mm hole pattern |
N25-61321-00 | 25A, 600V, 10 AWG | CT1 On/Off | 48mm plate, 36mm hole pattern |
N25-61321-01 | 25A, 600V, 10 AWG | CT1 On/Off | 64mm plate, 48mm hole pattern |
N20-61325-00 | 20A, 600V, 12 AWG | CT1, CT2, CT3 | 48mm plate, 36mm hole pattern |
