Weschler 20/20 Analog Panel Meters – DC Voltage & Current

Description

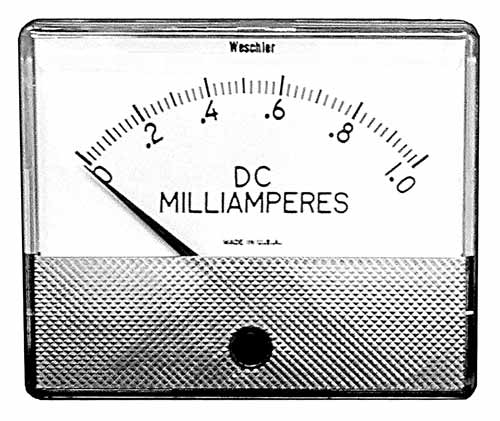

20/20 instruments GX-332, GX-352 & GX-372 have neat, clean lines that harmonize with highly styled electronic components. They can be properly applied to equipment ranging from a spectrometer to a unit of power switchgear.

Readability

GX332, GX352 & GX372 instruments were designed for maximum readability from a distance. The lance-design pointer in conjunction with the bold dial markings makes this instrument the most easily read in its field.

Enclosures

The 20/20 instrument case is made of black Lexan plastic, dimensioned to meet the industry standards for Custom Styled Panel Instruments as defined by ANSI C39.1.

The snap-on cover is made up of a high-grade Lexan plastic which will remain crystal clear in appearance. It is treated with Weschler Anti-Static Agent to keep it dust-free, and to ensure continued freedom from electrostatic effects. The side edges of the cover are also of clear plastic, allowing light to enter from any angle.

  • 2 ½”, 3 ½” & 4 ½” Sizes
  • 100º Scale
  • 2% Accuracy Class
  • Special scales and calibration.
  • Customer identification or trade names.
  • Mirror dials and knife-edge pointers.
  • Colored zones.
  • Special legends.
  • Center zero.
  • Suppressed zero.

Weschler-Panel-20-20                      Weschler-style_listings-panel

Clear
Show Advanced Filters

products found
Item # Model Type Rating Standard Scale Case Size
606B592A09GX-332DC Microammeter50 uA0-50 DC Microamperes2-1/2"
606B592A10GX-332DC Microammeter80 uA0-80 DC Microamperes2-1/2"
606B592A11GX-332DC Microammeter100 uA0-100 DC Microamperes2-1/2"
606B592A12GX-332DC Microammeter150 uA0-150 DC Microamperes2-1/2"
606B592A13GX-332DC Microammeter200 uA0-200 DC Microamperes2-1/2"
606B592A14GX-332DC Microammeter300 uA0-300 DC Microamperes2-1/2"
606B592A15GX-332DC Microammeter500 uA0-500 DC Microamperes2-1/2"
606B592A16GX-332DC Microammeter800 uA0-800 DC Microamperes2-1/2"
606B591A09GX-332DC Milliammeter1 mA0-1 DC Milliamperes2-1/2"
606B591A10GX-332DC Milliammeter1.5 mA0-1.5 DC Milliamperes2-1/2"
606B591A11GX-332DC Milliammeter2 mA0-2 DC Milliamperes2-1/2"
606B591A12GX-332DC Milliammeter3 mA0-3 DC Milliamperes2-1/2"
606B591A13GX-332DC Milliammeter5 mA0-5 DC Milliamperes2-1/2"
606B591A14GX-332DC Milliammeter8 mA0-8 DC Milliamperes2-1/2"
606B591A15GX-332DC Milliammeter10 mA0-10 DC Milliamperes2-1/2"
606B591A16GX-332DC Milliammeter15 mA0-15 DC Milliamperes2-1/2"
606B591A17GX-332DC Milliammeter20 mA0-20 DC Milliamperes2-1/2"
606B591A18GX-332DC Milliammeter30 mA0-30 DC Milliamperes2-1/2"
606B591A19GX-332DC Milliammeter50 mA0-50 DC Milliamperes2-1/2"
606B591A20GX-332DC Milliammeter80 mA0-80 DC Milliamperes2-1/2"
606B591A21GX-332DC Milliammeter100 mA0-100 DC Milliamperes2-1/2"
606B591A22GX-332DC Milliammeter150 mA0-150 DC Milliamperes2-1/2"
606B591A23GX-332DC Milliammeter200 mA0-200 DC Milliamperes2-1/2"
606B591A24GX-332DC Milliammeter300 mA0-300 DC Milliamperes2-1/2"
606B591A25GX-332DC Milliammeter500 mA0-500 DC Milliamperes2-1/2"
606B591A26GX-332DC Milliammeter800 mA0-800 DC Milliamperes2-1/2"
606B590A09GX-332DC Ammeter - Self Contained1 A0-1 DC Amperes2-1/2"
606B590A10GX-332DC Ammeter - Self Contained1.5 A0-1.5 DC Amperes2-1/2"
606B590A11GX-332DC Ammeter - Self Contained2 A0-2 DC Amperes2-1/2"
606B590A12GX-332DC Ammeter - Self Contained3 A0-3 DC Amperes2-1/2"
606B590A13GX-332DC Ammeter - Self Contained5 A0-5 DC Amperes2-1/2"
606B590A14GX-332DC Ammeter - Self Contained8 A0-8 DC Amperes2-1/2"
606B590A15GX-332DC Ammeter - Self Contained10 A0-10 DC Amperes2-1/2"
606B590A16GX-332DC Ammeter - Self Contained15 A0-15 DC Amperes2-1/2"
606B590A17GX-332DC Ammeter - Self Contained20 A0-20 DC Amperes2-1/2"
606B590A18GX-332DC Ammeter - Self Contained30 A0-30 DC Amperes2-1/2"
606B590A19GX-332DC Ammeter - Self Contained50 A0-50 DC Amperes2-1/2"
606B602A11GX-332DC Ammeter - Shunt Rated50 mV0-15 DC Amperes2-1/2"
606B602A12GX-332DC Ammeter - Shunt Rated50 mV0-25 DC Amperes2-1/2"
606B602A13GX-332DC Ammeter - Shunt Rated50 mV0-50 DC Amperes2-1/2"
606B602A14GX-332DC Ammeter - Shunt Rated50 mV0-75 DC Amperes2-1/2"
606B602A15GX-332DC Ammeter - Shunt Rated50 mV0-100 DC Amperes2-1/2"
606B602A16GX-332DC Ammeter - Shunt Rated50 mV0-150 DC Amperes2-1/2"
606B602A17GX-332DC Ammeter - Shunt Rated50 mV0-200 DC Amperes2-1/2"
606B602A18GX-332DC Ammeter - Shunt Rated50 mV0-250 DC Amperes2-1/2"
606B602A19GX-332DC Ammeter - Shunt Rated50 mV0-300 DC Amperes2-1/2"
606B602A20GX-332DC Ammeter - Shunt Rated50 mV0-400 DC Amperes2-1/2"
606B602A21GX-332DC Ammeter - Shunt Rated50 mV0-500 DC Amperes2-1/2"
606B602A22GX-332DC Ammeter - Shunt Rated50 mV0-600 DC Amperes2-1/2"
606B602A23GX-332DC Ammeter - Shunt Rated50 mV0-800 DC Amperes2-1/2"
606B602A24GX-332DC Ammeter - Shunt Rated50 mV0-1000 DC Amperes2-1/2"
606B598A09GX-352DC Microammeter50 uA0-50 DC Microamperes3-1/2"
606B598A10GX-352DC Microammeter80 uA0-80 DC Microamperes3-1/2"
606B598A11GX-352DC Microammeter100 uA0-100 DC Microamperes3-1/2"
606B598A12GX-352DC Microammeter150 uA0-150 DC Microamperes3-1/2"
606B598A13GX-352DC Microammeter200 uA0-200 DC Microamperes3-1/2"
606B598A14GX-352DC Microammeter300 uA0-300 DC Microamperes3-1/2"
606B598A15GX-352DC Microammeter500 uA0-500 DC Microamperes3-1/2"
606B598A16GX-352DC Microammeter800 uA0-800 DC Microamperes3-1/2"
606B599A09GX-352DC Milliammeter1 mA0-1 DC Milliamperes3-1/2"
606B599A10GX-352DC Milliammeter1.5 mA0-1.5 DC Milliamperes3-1/2"
606B599A11GX-352DC Milliammeter2 mA0-2 DC Milliamperes3-1/2"
606B599A12GX-352DC Milliammeter3 mA0-3 DC Milliamperes3-1/2"
606B599A13GX-352DC Milliammeter5 mA0-5 DC Milliamperes3-1/2"
606B599A14GX-352DC Milliammeter8 mA0-8 DC Milliamperes3-1/2"
606B599A15GX-352DC Milliammeter10 mA0-10 DC Milliamperes3-1/2"
606B599A16GX-352DC Milliammeter15 mA0-15 DC Milliamperes3-1/2"
606B599A17GX-352DC Milliammeter20 mA0-20 DC Milliamperes3-1/2"
606B599A18GX-352DC Milliammeter30 mA0-30 DC Milliamperes3-1/2"
606B599A19GX-352DC Milliammeter50 mA0-50 DC Milliamperes3-1/2"
606B599A20GX-352DC Milliammeter80 mA0-80 DC Milliamperes3-1/2"
606B599A21GX-352DC Milliammeter100 mA0-100 DC Milliamperes3-1/2"
606B599A22GX-352DC Milliammeter150 mA0-150 DC Milliamperes3-1/2"
606B599A23GX-352DC Milliammeter200 mA0-200 DC Milliamperes3-1/2"
606B599A24GX-352DC Milliammeter300 mA0-300 DC Milliamperes3-1/2"
606B599A25GX-352DC Milliammeter500 mA0-500 DC Milliamperes3-1/2"
606B599A26GX-352DC Milliammeter800 mA0-800 DC Milliamperes3-1/2"
606B597A09GX-352DC Ammeter - Self Contained1 A0-1 DC Amperes3-1/2"
606B597A10GX-352DC Ammeter - Self Contained1.5 A0-1.5 DC Amperes3-1/2"
606B597A11GX-352DC Ammeter - Self Contained2 A0-2 DC Amperes3-1/2"
606B597A12GX-352DC Ammeter - Self Contained3 A0-3 DC Amperes3-1/2"
606B597A13GX-352DC Ammeter - Self Contained5 A0-5 DC Amperes3-1/2"
606B597A14GX-352DC Ammeter - Self Contained8 A0-8 DC Amperes3-1/2"
606B597A15GX-352DC Ammeter - Self Contained10 A0-10 DC Amperes3-1/2"
606B597A16GX-352DC Ammeter - Self Contained15 A0-15 DC Amperes3-1/2"
606B597A17GX-352DC Ammeter - Self Contained20 A0-20 DC Amperes3-1/2"
606B597A18GX-352DC Ammeter - Self Contained30 A0-30 DC Amperes3-1/2"
606B597A19GX-352DC Ammeter - Self Contained50 A0-50 DC Amperes3-1/2"
606B609A11GX-352DC Ammeter - Shunt Rated50 mV0-15 DC Amperes3-1/2"
606B609A12GX-352DC Ammeter - Shunt Rated50 mV0-25 DC Amperes3-1/2"
606B609A13GX-352DC Ammeter - Shunt Rated50 mV0-50 DC Amperes3-1/2"
606B609A14GX-352DC Ammeter - Shunt Rated50 mV0-75 DC Amperes3-1/2"
606B609A15GX-352DC Ammeter - Shunt Rated50 mV0-100 DC Amperes3-1/2"
606B609A16GX-352DC Ammeter - Shunt Rated50 mV0-150 DC Amperes3-1/2"
606B609A17GX-352DC Ammeter - Shunt Rated50 mV0-200 DC Amperes3-1/2"
606B609A18GX-352DC Ammeter - Shunt Rated50 mV0-250 DC Amperes3-1/2"
606B609A19GX-352DC Ammeter - Shunt Rated50 mV0-300 DC Amperes3-1/2"
606B609A20GX-352DC Ammeter - Shunt Rated50 mV0-400 DC Amperes3-1/2"
606B609A21GX-352DC Ammeter - Shunt Rated50 mV0-500 DC Amperes3-1/2"
606B609A22GX-352DC Ammeter - Shunt Rated50 mV0-600 DC Amperes3-1/2"
606B609A23GX-352DC Ammeter - Shunt Rated50 mV0-800 DC Amperes3-1/2"
606B609A24GX-352DC Ammeter - Shunt Rated50 mV0-1000 DC Amperes3-1/2"
606B605A09GX-372DC Microammeter50 uA0-50 DC Microamperes4-1/2"
606B605A10GX-372DC Microammeter80 uA0-80 DC Microamperes4-1/2"
606B605A11GX-372DC Microammeter100 uA0-100 DC Microamperes4-1/2"
606B605A12GX-372DC Microammeter150 uA0-150 DC Microamperes4-1/2"
606B605A13GX-372DC Microammeter200 uA0-200 DC Microamperes4-1/2"
606B605A14GX-372DC Microammeter300 uA0-300 DC Microamperes4-1/2"
606B605A15GX-372DC Microammeter500 uA0-500 DC Microamperes4-1/2"
606B605A16GX-372DC Microammeter800 uA0-800 DC Microamperes4-1/2"
606B604A09GX-372DC Milliammeter1 mA0-1 DC Milliamperes4-1/2"
606B604A10GX-372DC Milliammeter1.5 mA0-1.5 DC Milliamperes4-1/2"
606B604A11GX-372DC Milliammeter2 mA0-2 DC Milliamperes4-1/2"
606B604A12GX-372DC Milliammeter3 mA0-3 DC Milliamperes4-1/2"
606B604A13GX-372DC Milliammeter5 mA0-5 DC Milliamperes4-1/2"
606B604A14GX-372DC Milliammeter8 mA0-8 DC Milliamperes4-1/2"
606B604A15GX-372DC Milliammeter10 mA0-10 DC Milliamperes4-1/2"
606B604A16GX-372DC Milliammeter15 mA0-15 DC Milliamperes4-1/2"
606B604A17GX-372DC Milliammeter20 mA0-20 DC Milliamperes4-1/2"
606B604A18GX-372DC Milliammeter30 mA0-30 DC Milliamperes4-1/2"
606B604A19GX-372DC Milliammeter50 mA0-50 DC Milliamperes4-1/2"
606B604A20GX-372DC Milliammeter80 mA0-80 DC Milliamperes4-1/2"
606B604A21GX-372DC Milliammeter100 mA0-100 DC Milliamperes4-1/2"
606B604A22GX-372DC Milliammeter150 mA0-150 DC Milliamperes4-1/2"
606B604A23GX-372DC Milliammeter200 mA0-200 DC Milliamperes4-1/2"
606B604A24GX-372DC Milliammeter300 mA0-300 DC Milliamperes4-1/2"
606B604A25GX-372DC Milliammeter500 mA0-500 DC Milliamperes4-1/2"
606B604A26GX-372DC Milliammeter800 mA0-800 DC Milliamperes4-1/2"
606B603A09GX-372DC Ammeter - Self Contained1 A0-1 DC Amperes4-1/2"
606B603A10GX-372DC Ammeter - Self Contained1.5 A0-1.5 DC Amperes4-1/2"
606B603A11GX-372DC Ammeter - Self Contained2 A0-2 DC Amperes4-1/2"
606B603A12GX-372DC Ammeter - Self Contained3 A0-3 DC Amperes4-1/2"
606B603A13GX-372DC Ammeter - Self Contained5 A0-5 DC Amperes4-1/2"
606B603A14GX-372DC Ammeter - Self Contained8 A0-8 DC Amperes4-1/2"
606B603A15GX-372DC Ammeter - Self Contained10 A0-10 DC Amperes4-1/2"
606B603A16GX-372DC Ammeter - Self Contained15 A0-15 DC Amperes4-1/2"
606B603A17GX-372DC Ammeter - Self Contained20 A0-20 DC Amperes4-1/2"
606B603A18GX-372DC Ammeter - Self Contained30 A0-30 DC Amperes4-1/2"
606B603A19GX-372DC Ammeter - Self Contained50 A0-50 DC Amperes4-1/2"
606B611A11GX-372DC Ammeter - Shunt Rated50 mV0-15 DC Amperes4-1/2"
606B611A12GX-372DC Ammeter - Shunt Rated50 mV0-25 DC Amperes4-1/2"
606B611A13GX-372DC Ammeter - Shunt Rated50 mV0-50 DC Amperes4-1/2"
606B611A14GX-372DC Ammeter - Shunt Rated50 mV0-75 DC Amperes4-1/2"
606B611A15GX-372DC Ammeter - Shunt Rated50 mV0-100 DC Amperes4-1/2"
606B611A16GX-372DC Ammeter - Shunt Rated50 mV0-150 DC Amperes4-1/2"
606B611A17GX-372DC Ammeter - Shunt Rated50 mV0-200 DC Amperes4-1/2"
606B611A18GX-372DC Ammeter - Shunt Rated50 mV0-250 DC Amperes4-1/2"
606B611A19GX-372DC Ammeter - Shunt Rated50 mV0-300 DC Amperes4-1/2"
606B611A20GX-372DC Ammeter - Shunt Rated50 mV0-400 DC Amperes4-1/2"
606B611A21GX-372DC Ammeter - Shunt Rated50 mV0-500 DC Amperes4-1/2"
606B611A22GX-372DC Ammeter - Shunt Rated50 mV0-600 DC Amperes4-1/2"
606B611A23GX-372DC Ammeter - Shunt Rated50 mV0-800 DC Amperes4-1/2"
606B611A24GX-372DC Ammeter - Shunt Rated50 mV0-1000 DC Amperes4-1/2"
606B602A34GX-332DC Millivoltmeter50 mVSpecify2-1/2"
606B602A35GX-332DC Millivoltmeter100 mVSpecify2-1/2"
606B609A34GX-352DC Millivoltmeter50 mVSpecify3-1/2"
606B609A35GX-352DC Millivoltmeter100 mVSpecify3-1/2"
606B611A34GX-372DC Millivoltmeter50 mVSpecify4-1/2"
606B611A35GX-372DC Millivoltmeter100 mVSpecify4-1/2"
606B595A11GX-332DC Millivoltmeter50 mV0-50 DC Millivolts2-1/2"
606B595A13GX-332DC Millivoltmeter100 mV0-100 DC Millivolts2-1/2"
606B595A15GX-332DC Millivoltmeter200 mV0-200 DC Millivolts2-1/2"
606B595A17GX-332DC Millivoltmeter500 mV0-500 DC Millivolts2-1/2"
606B596A11GX-352DC Millivoltmeter50 mV0-50 DC Millivolts3-1/2"
606B596A13GX-352DC Millivoltmeter100 mV0-100 DC Millivolts3-1/2"
606B596A15GX-352DC Millivoltmeter200 mV0-200 DC Millivolts3-1/2"
606B596A17GX-352DC Millivoltmeter500 mV0-500 DC Millivolts3-1/2"
606B608A11GX-372DC Millivoltmeter50 mV0-50 DC Millivolts4-1/2"
606B608A13GX-372DC Millivoltmeter100 mV0-100 DC Millivolts4-1/2"
606B608A15GX-372DC Millivoltmeter200 mV0-200 DC Millivolts4-1/2"
606B608A17GX-372DC Millivoltmeter500 mV0-500 DC Millivolts4-1/2"
606B593A09GX-332DC Voltmeter1 V0-1 DC Volts2-1/2"
606B593A10GX-332DC Voltmeter1.5 V0-1.5 DC Volts2-1/2"
606B593A11GX-332DC Voltmeter2 V0-2 DC Volts2-1/2"
606B593A12GX-332DC Voltmeter3 V0-3 DC Volts2-1/2"
606B593A13GX-332DC Voltmeter5 V0-5 DC Volts2-1/2"
606B593A14GX-332DC Voltmeter8 V0-8 DC Volts2-1/2"
606B593A15GX-332DC Voltmeter10 V0-10 DC Volts2-1/2"
606B593A16GX-332DC Voltmeter15 V0-15 DC Volts2-1/2"
606B593A17GX-332DC Voltmeter20 V0-20 DC Volts2-1/2"
606B593A18GX-332DC Voltmeter30 V0-30 DC Volts2-1/2"
606B593A19GX-332DC Voltmeter50 V0-50 DC Volts2-1/2"
606B593A27GX-332DC Voltmeter75 V0-75 DC Volts2-1/2"
606B593A20GX-332DC Voltmeter80 V0-80 DC Volts2-1/2"
606B593A21GX-332DC Voltmeter100 V0-100 DC Volts2-1/2"
606B593A22GX-332DC Voltmeter150 V0-150 DC Volts2-1/2"
606B593A23GX-332DC Voltmeter200 V0-200 DC Volts2-1/2"
606B593A24GX-332DC Voltmeter300 V0-300 DC Volts2-1/2"
606B593A25GX-332DC Voltmeter500 V0-500 DC Volts2-1/2"
606B601A09GX-352DC Voltmeter1 V0-1 DC Volts3-1/2"
606B601A10GX-352DC Voltmeter1.5 V0-1.5 DC Volts3-1/2"
606B601A11GX-352DC Voltmeter2 V0-2 DC Volts3-1/2"
606B601A12GX-352DC Voltmeter3 V0-3 DC Volts3-1/2"
606B601A13GX-352DC Voltmeter5 V0-5 DC Volts3-1/2"
606B601A14GX-352DC Voltmeter8 V0-8 DC Volts3-1/2"
606B601A15GX-352DC Voltmeter10 V0-10 DC Volts3-1/2"
606B601A16GX-352DC Voltmeter15 V0-15 DC Volts3-1/2"
606B601A17GX-352DC Voltmeter20 V0-20 DC Volts3-1/2"
606B601A18GX-352DC Voltmeter30 V0-30 DC Volts3-1/2"
606B601A19GX-352DC Voltmeter50 V0-50 DC Volts3-1/2"
606B601A27GX-352DC Voltmeter75 V0-75 DC Volts3-1/2"
606B601A20GX-352DC Voltmeter80 V0-80 DC Volts3-1/2"
606B601A21GX-352DC Voltmeter100 V0-100 DC Volts3-1/2"
606B601A22GX-352DC Voltmeter150 V0-150 DC Volts3-1/2"
606B601A23GX-352DC Voltmeter200 V0-200 DC Volts3-1/2"
606B601A24GX-352DC Voltmeter300 V0-300 DC Volts3-1/2"
606B601A25GX-352DC Voltmeter500 V0-500 DC Volts3-1/2"
606B607A09GX-372DC Voltmeter1 V0-1 DC Volts4-1/2"
606B607A10GX-372DC Voltmeter1.5 V0-1.5 DC Volts4-1/2"
606B607A11GX-372DC Voltmeter2 V0-2 DC Volts4-1/2"
606B607A12GX-372DC Voltmeter3 V0-3 DC Volts4-1/2"
606B607A13GX-372DC Voltmeter5 V0-5 DC Volts4-1/2"
606B607A14GX-372DC Voltmeter8 V0-8 DC Volts4-1/2"
606B607A15GX-372DC Voltmeter10 V0-10 DC Volts4-1/2"
606B607A16GX-372DC Voltmeter15 V0-15 DC Volts4-1/2"
606B607A17GX-372DC Voltmeter20 V0-20 DC Volts4-1/2"
606B607A18GX-372DC Voltmeter30 V0-30 DC Volts4-1/2"
606B607A19GX-372DC Voltmeter50 V0-50 DC Volts4-1/2"
606B607A27GX-372DC Voltmeter75 V0-75 DC Volts4-1/2"
606B607A20GX-372DC Voltmeter80 V0-80 DC Volts4-1/2"
606B607A21GX-372DC Voltmeter100 V0-100 DC Volts4-1/2"
606B607A22GX-372DC Voltmeter150 V0-150 DC Volts4-1/2"
606B607A23GX-372DC Voltmeter200 V0-200 DC Volts4-1/2"
606B607A24GX-372DC Voltmeter300 V0-300 DC Volts4-1/2"
606B607A25GX-372DC Voltmeter500 V0-500 DC Volts4-1/2"
Sorry, no products were found fitting that criteria. Please widen your search or reset item filters now
