UT55A Controller – Yokogawa
Description

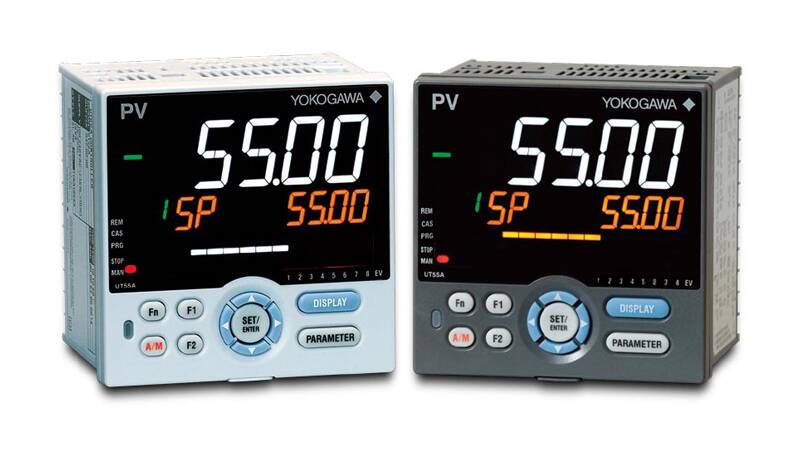

The Yokogawa UT55A is a 1/4 DIN advanced digital indicating controller that balances ease-of-use with the power to handle the most challenging applications. These controllers offer greatly improved measurement, display, operation, control, and networking functions that enhance the efficiency of user design and save money by eliminating the need for peripheral devices and associated wiring.
The UT55A employs a 14-segment color LCD display which is easier to read than conventional displays, along with new guidance screens and navigation keys that aid programming and help prevent operator errors. An Active color feature allows users to see the status of a process at a glance. The controller menus and layout are adjusted in accordance with the level (EASY, STD, PRO) of information required by the user. If simple temperature or level control is needed, then select the easy configuration. For sophisticated applications, select the PRO setting and make use of the additional functionality shown in this mode.
Applications include the measurement, display, and control of temperature, pressure, and flow rate in research, development and manufacturing operations such as heat treatment, washing and sterilizing processes.
- Advanced Control
8 built-in control functions and algorithms
Ladder sequence control
Fuzzy logic control
Optional suffix codes
/DR Additional direct input (TC & 3-wire/4-wire RTD) and current to Remote (1 additional aux. analog, 1 DI to be deleted)
/LP 24 V DC loop power supply
/HA Heater break alarm
/DC Power supply 24 V AC/DC
/CT Coating
Catalog-Page-5b YEW-UT52A/55A-Specifications
Downloads
Show Advanced Filters
products found
| Item # | Controls | Extra Functions | Network Options | Case |
|---|---|---|---|---|
| UT55A-241-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Light Gray |
| UT55A-042-10-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Light Gray |
| UT55A-021-11-00 | Standard Type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | RS-485 | Dark Gray |
| UT55A-050-10-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | None | Light Gray |
| UT55A-240-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UT55A-041-10-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Light Gray |
| UT55A-272-10-00 | Heating / cooling type | 3 additional aux. analog inputs & 3 additional Dls | Ethernet | Light Gray |
| UT55A-001-10-00 | Standard Type | None | RS-485 | Light Gray |
| UT55A-250-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | None | Light Gray |
| UT55A-102-10-00 | Position proportional type | None | Ethernet | Light Gray |
| UT55A-251-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | RS-485 | Light Gray |
| UT55A-040-10-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UT55A-252-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | Ethernet | Light Gray |
| UT55A-000-10-00 | Standard Type | None | None | Light Gray |
| UT55A-260-10-00 | Heating / cooling type | 5 additional Dls & 15 additional DOs | None | Light Gray |
| UT55A-002-10-00 | Standard Type | None | Ethernet | Light Gray |
| UT55A-270-10-00 | Heating / cooling type | 3 additional aux. analog inputs & 3 additional Dls | None | Light Gray |
| UT55A-010-10-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls, 5 additional DOs & RS-485 | None | Light Gray |
| UT55A-271-10-00 | Heating / cooling type | 3 additional aux. analog inputs & 3 additional Dls | RS-485 | Light Gray |
| UT55A-021-10-00 | Standard Type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | RS-485 | Light Gray |
| UT55A-242-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Light Gray |
| UT55A-031-10-00 | Standard Type | 5 additional Dls & 5 additional DOs | RS-485 | Light Gray |
| UT55A-000-11-00 | Standard Type | None | None | Dark Gray |
| UT55A-030-10-00 | Standard Type | 5 additional Dls & 5 additional DOs | None | Light Gray |
| UT55A-001-11-00 | Standard Type | None | RS-485 | Dark Gray |
| UT55A-022-10-00 | Standard Type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | Ethernet | Light Gray |
| UT55A-002-11-00 | Standard Type | None | Ethernet | Dark Gray |
| UT55A-032-10-00 | Standard Type | 5 additional Dls & 5 additional DOs | Ethernet | Light Gray |
| UT55A-031-11-00 | Standard Type | 5 additional Dls & 5 additional DOs | RS-485 | Dark Gray |
| UT55A-020-10-00 | Standard Type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | None | Light Gray |
| UT55A-020-11-00 | Standard Type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | None | Dark Gray |
| UT55A-232-10-00 | Heating / cooling type | 5 additional Dls & 5 additional DOs | Ethernet | Light Gray |
| UT55A-022-11-00 | Standard Type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | Ethernet | Dark Gray |
| UT55A-030-11-00 | Standard Type | 5 additional Dls & 5 additional DOs | None | Dark Gray |
| UT55A-032-11-00 | Standard Type | 5 additional Dls & 5 additional DOs | Ethernet | Dark Gray |
| UT55A-040-11-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Dark Gray |
| UT55A-010-11-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls, 5 additional DOs & RS-485 | None | Dark Gray |
| UT55A-130-10-00 | Position proportional type | 5 additional Dls & 5 additional DOs | None | Light Gray |
| UT55A-160-10-00 | Position proportional type | 5 additional Dls & 15 additional DOs | None | Light Gray |
| UT55A-121-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | RS-485 | Light Gray |
| UT55A-120-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | None | Light Gray |
| UT55A-122-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | Ethernet | Light Gray |
| UT55A-071-11-00 | Standard Type | 3 additional aux. analog inputs & 3 additional Dls | RS-485 | Dark Gray |
| UT55A-131-10-00 | Position proportional type | 5 additional Dls & 5 additional DOs | RS-485 | Light Gray |
| UT55A-041-11-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UT55A-140-10-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Light Gray |
| UT55A-141-10-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Light Gray |
| UT55A-142-10-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Light Gray |
| UT55A-150-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | None | Light Gray |
| UT55A-132-10-00 | Position proportional type | 5 additional Dls & 15 additional DOs | Ethernet | Light Gray |
| UT55A-152-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | Ethernet | Light Gray |
| UT55A-231-10-00 | Heating / cooling type | 5 additional Dls & 5 additional DOs | RS-485 | Light Gray |
| UT55A-170-10-00 | Position proportional type | 3 additional aux. analog inputs & 3 additional Dls | None | Light Gray |
| UT55A-171-10-00 | Position proportional type | 3 additional aux. analog inputs & 3 additional Dls | RS-485 | Light Gray |
| UT55A-172-10-00 | Position proportional type | 3 additional aux. analog inputs & 3 additional Dls | Ethernet | Light Gray |
| UT55A-200-10-00 | Heating / cooling type | None | None | Light Gray |
| UT55A-202-10-00 | Heating / cooling type | None | Ethernet | Light Gray |
| UT55A-201-10-00 | Heating / cooling type | None | RS-485 | Light Gray |
| UT55A-210-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls, 5 additional DOs & RS-485 | None | Light Gray |
| UT55A-221-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | RS-485 | Light Gray |
| UT55A-220-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | None | Light Gray |
| UT55A-222-10-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | Ethernet | Light Gray |
| UT55A-230-10-00 | Heating / cooling type | 5 additional Dls & 5 additional DOs | None | Light Gray |
| UT55A-232-11-00 | Heating / cooling type | 5 additional Dls & 5 additional DOs | Ethernet | Dark Gray |
| UT55A-151-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | RS-485 | Light Gray |
| UT55A-172-11-00 | Position proportional type | 3 additional aux. analog inputs & 3 additional Dls | Ethernet | Dark Gray |
| UT55A-200-11-00 | Heating / cooling type | None | None | Dark Gray |
| UT55A-201-11-00 | Heating / cooling type | None | RS-485 | Dark Gray |
| UT55A-202-11-00 | Heating / cooling type | None | Ethernet | Dark Gray |
| UT55A-210-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls, 5 additional DOs & RS-485 | None | Dark Gray |
| UT55A-220-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | None | Dark Gray |
| UT55A-221-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | RS-485 | Dark Gray |
| UT55A-042-11-00 | Standard Type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Dark Gray |
| UT55A-230-11-00 | Heating / cooling type | 5 additional Dls & 5 additional DOs | None | Dark Gray |
| UT55A-171-11-00 | Position proportional type | 3 additional aux. analog inputs & 3 additional Dls | RS-485 | Dark Gray |
| UT55A-222-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | Ethernet | Dark Gray |
| UT55A-231-11-00 | Heating / cooling type | 5 additional Dls & 5 additional DOs | RS-485 | Dark Gray |
| UT55A-240-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Dark Gray |
| UT55A-241-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UT55A-250-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | None | Dark Gray |
| UT55A-251-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | RS-485 | Dark Gray |
| UT55A-242-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Dark Gray |
| UT55A-252-11-00 | Heating / cooling type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | Ethernet | Dark Gray |
| UT55A-260-11-00 | Heating / cooling type | 5 additional Dls & 15 additional DOs | None | Dark Gray |
| UT55A-270-11-00 | Heating / cooling type | 3 additional aux. analog inputs & 3 additional Dls | None | Dark Gray |
| UT55A-271-11-00 | Heating / cooling type | 3 additional aux. analog inputs & 3 additional Dls | RS-485 | Dark Gray |
| UT55A-060-11-00 | Standard Type | 5 additional Dls & 15 additional DOs | None | Dark Gray |
| UT55A-272-11-00 | Heating / cooling type | 3 additional aux. analog inputs & 3 additional Dls | Ethernet | Dark Gray |
| UT55A-052-11-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | Ethernet | Dark Gray |
| UT55A-051-11-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | RS-485 | Dark Gray |
| UT55A-170-11-00 | Position proportional type | 3 additional aux. analog inputs & 3 additional Dls | None | Dark Gray |
| UT55A-070-11-00 | Standard Type | 3 additional aux. analog inputs & 3 additional Dls | None | Dark Gray |
| UT55A-072-11-00 | Standard Type | 3 additional aux. analog inputs & 3 additional Dls | Ethernet | Dark Gray |
| UT55A-100-11-00 | Position proportional type | None | None | Dark Gray |
| UT55A-101-11-00 | Position proportional type | None | RS-485 | Dark Gray |
| UT55A-102-11-00 | Position proportional type | None | Ethernet | Dark Gray |
| UT55A-110-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls, 5 additional DOs & RS-485 | None | Dark Gray |
| UT55A-120-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | None | Dark Gray |
| UT55A-122-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | Ethernet | Dark Gray |
| UT55A-121-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 1 additional Dl & RS-485 | RS-485 | Dark Gray |
| UT55A-130-11-00 | Position proportional type | 5 additional Dls & 5 additional DOs | None | Dark Gray |
| UT55A-131-11-00 | Position proportional type | 5 additional Dls & 5 additional DOs | RS-485 | Dark Gray |
| UT55A-132-11-00 | Position proportional type | 5 additional Dls & 5 additional DOs | Ethernet | Dark Gray |
| UT55A-160-11-00 | Position proportional type | 5 additional Dls & 15 additional DOs | None | Dark Gray |
| UT55A-050-11-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | None | Dark Gray |
| UT55A-152-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | Ethernet | Dark Gray |
| UT55A-150-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | None | Dark Gray |
| UT55A-151-11-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | RS-485 | Dark Gray |
| UT55A-140-11-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | None | Dark Gray |
| UT55A-141-11-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | RS-485 | Dark Gray |
| UT55A-142-11-00 | Position proportional type | Remote (1 additional aux. analog) input & 1 additional Dl | Ethernet | Dark Gray |
| UT55A-100-10-00 | Position proportional type | None | None | Light Gray |
| UT55A-110-10-00 | Position proportional type | Remote (1 additional aux. analog) input, 6 additional Dls, 5 additional DOs & RS-485 | None | Light Gray |
| UT55A-101-10-00 | Position proportional type | None | RS-485 | Light Gray |
| UT55A-072-10-00 | Standard Type | 3 additional aux. analog inputs & 3 additional Dls | Ethernet | Light Gray |
| UT55A-071-10-00 | Standard Type | 3 additional aux. analog inputs & 3 additional Dls | RS-485 | Light Gray |
| UT55A-070-10-00 | Standard Type | 3 additional aux. analog inputs & 3 additional Dls | None | Light Gray |
| UT55A-060-10-00 | Standard Type | 5 additional Dls & 15 additional DOs | None | Light Gray |
| UT55A-052-10-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | Ethernet | Light Gray |
| UT55A-051-10-00 | Standard Type | Remote (1 additional aux. analog) input, 6 additional Dls & 5 additional Dos | RS-485 | Light Gray |
