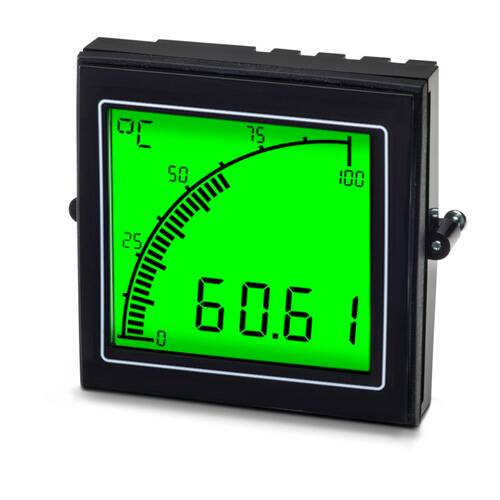

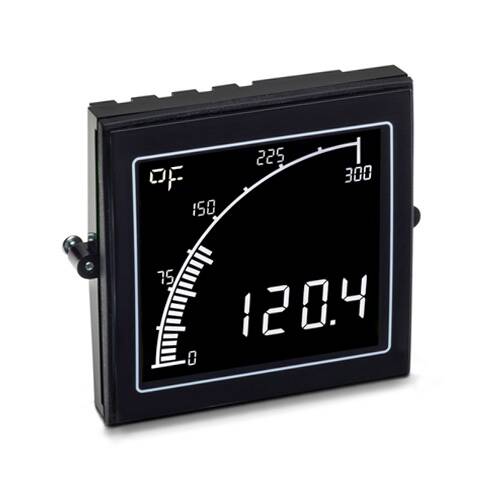

Trumeter APM Temperature Meter
Description
The Trumeter APM Temperature Meter is designed for use with thermocouples. Its versatile inputs and two outputs, which can be used to control other systems in the process, make it ideal for a wide range of °C and °F industrial applications.
FEATURES
- 40 segment bar graph display
- Large 4-digit display
- Separate Starburst display area for annunciators, custom messages and alarm information
- Dynamic backlight color
- Display Range (Both Min & Max Values)
- Custom annunciators
- User-selectable backlight color and intensity
- Two independent alarm set-points
- Two independent outputs
- 4-20mA analog retransmission output
- Configurable 20 point non-linear conversion table
- Innovative input signal optimization achieves 0.25% accuracy
Meters with Modbus© connectivity available by request
products found
| Item # | Description |
|---|---|

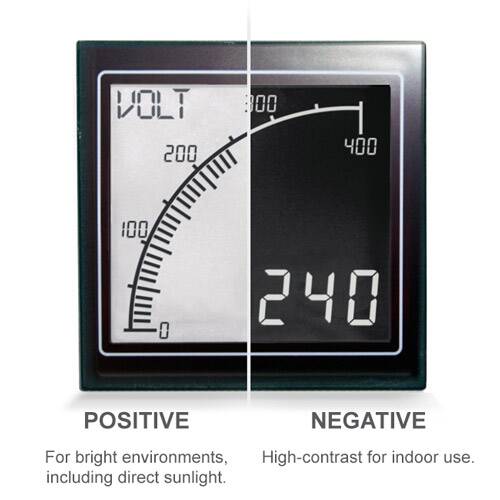

| APM-TEMP-APO | APM TEMPERATURE METER, POSITIVE LCD WITH OUTPUTS |
| APM-TEMP-ANO | APM TEMPERATURE METER, NEGATIVE LCD WITH OUTPUTS |
