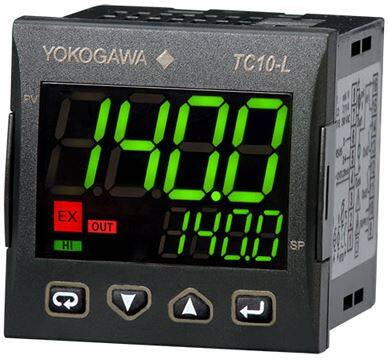

TC10-L Temperature Limit Controller – Yokogawa


The Yokogawa TC10-L is an all-in-one, FM approved limit controller with an easy-to-read, 3-color LED display. The shallow depth of the controller helps to save instrument panel space. The TC10-L supports easy configuration for a quick start-up, and it is configurable as a high limit or low limit controller. TC10-L is capable of a retransmission output and up to two alarm outputs. If applicable, a timer count control monitors the amount of time outside the setpoint and registers the maximum temperature reached. TC10-L’s compact design allows for a broad range of applications/uses while maintaining a high level of accuracy.


  • Compact size: 48 x 48 mm (1/16 DIN), depth of 48 mm + 14 mm (terminals)
  • 3 Dynamic Colors Led Display
  • Universal input: (TC, mV, V, mA, Pt100-Pt1000)
  • Easy User Control for high limit or low limit
  • Retransmission Output & 2 Alarm Outputs
  • Timer (Counts the total time the setpoint is exceeded)
  • Register to retain the maximum temperature reached
  • Serial communication: RS-485 Modbus (optional)
  • FM Approved
  • IP65 front panel (when the optional panel gasket is mounted)(optional)


Configure Product

Reset Form
View Result
Temperature Limit Controller
Universal Input, one logic input and one voltage output for SSR
Power Supply
PV Retransmission
Limit Trip Relay
Alarm Output Relay
Selectable I/O
RS485 Modbus
Panel Gasket for IP65
