Single & Three Phase Current Transducers – Texmate


Texmate TA Series transducers convert AC current signals to a DC value for easy readout or input to a SCADA system. Use these transducers with direct signals up to 5A. For higher signal levels, connect using a current transformer (CT). Both average and TRMS sensing models are available. TRMS sensing is recommended for input signals with distortion.

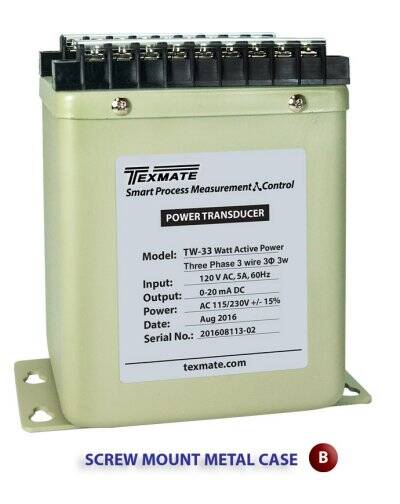

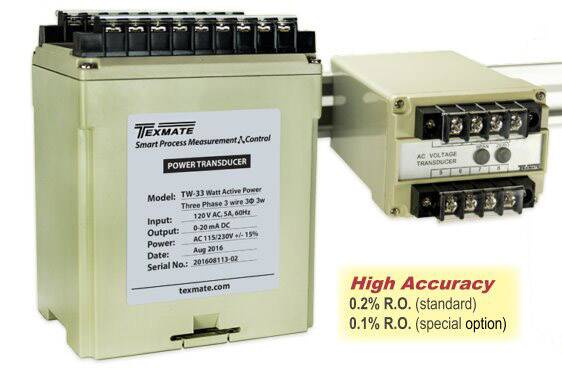

Two case styles provide mounting flexibility. The metal case versions with screw flanges easily attach to a plate or panel, Two plastic case sizes mount on a 35mm DIN rail. All Texmate transducers offer 2kV isolation and high immunity to external noise. Standard accuracy is ±0.2%, with ±0.1% also available. In addition to the standard input/output ranges shown below, custom ranges can be special ordered.

  •  Single phase & 3 phase models
  •  Average or TRMS sensing
  •  Direct connect up to 5A
  •  ±0.2% or ±0.1% accuracy
  •  Panel or DIN rail mounting

Catalog-Page-98a      Texmate Transducer Catalog

Configure Product

Reset Form
View Result
Base Model
Input Signal
Input Frequency
Output Signal
Auxiliary Power
Product #:
