Pyromation T71/T72 Temperature Transmitters

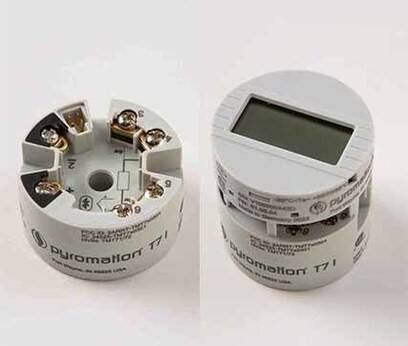

The T71 Programmable Head Transmitter is a two-wire transmitter with a 4-20mA analog output. It has measurement input for resistance thermometers (RTDs) in 2-, 3- or 4-wire connections, thermocouples, and voltage signals. Setup is done using the communication cable. This transmitter is available with or without a digital display, and can be mounted in a direct or remote general-purpose aluminum screw-cover housing. Certain configurations are specified with CSA-rated Intrinsically Safe and Explosion-Proof approvals for Hazardous Locations. These small units can be mounted in Pyromation DIN (Form B) connection heads or they can be surface mounted using 35 mm DIN rail mounting clips.

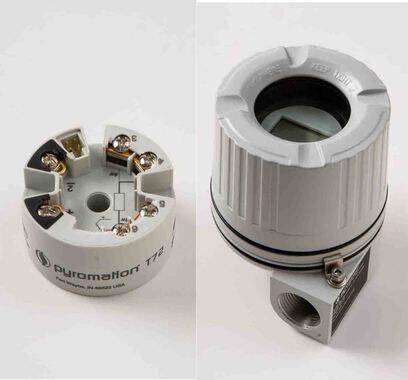

The T72 adds HART communication. This model can be programmed with a PC or HART® protocol hand-held terminal. There is also an optional Bluetooth® configuration.

  • Wide Operating Temperature Range
  • Factory or Field Configurable
  • Sensor Break & Short Circuit Detection
  • T/C Head Mounting
  • Optional Display with Direct or Remote Mount Housing
  • Intrinsically Safe or Explosion Proof Ratings

For field programming via PC, order Communication Cable P/N 10303
For mounting on 35mm DIN rail, order Mounting Clip P/N 10307

T71 replaces Pyromation 441; T72 replaces Pyromation 442

T71 Data Sheet                  T72 Data Sheet

Configure Product

Pyromation 4-20mA Temperature Transmitters

Reset Form
View Result
Model T72 incudes HART
Input Configuration
Default setting for unconfigured unit is 4-wire Pt100 RTD, 0-100 deg C
Sensor Input
Fault Condition
Enter lower and upper limit LLLL-UUUU
Temperature Units
Product #:
