Description

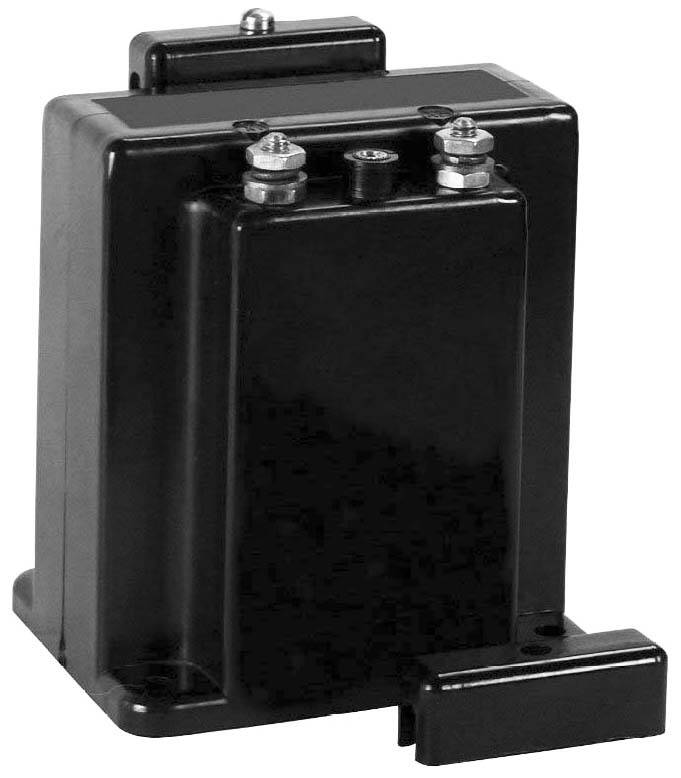

Weschler Model 468 Voltage Transformers: Single Phase; Accuracy: 0.6%@7.5 VA; Thermal Rating:75VA: These transformers are encased in a thermoplastic case with the core and windings encapsulated in resin. They are designed for line-to-line operation but may also be used in line-to-neutral or line-to-ground configuration at 58% of rated voltage.
It is recommended that a 0.80 Amp fuse be used in the secondary to protect the transformer
- 600V Insulation Level, 10kV BIL
- Accuracy Class 0.6W
- 75VA at 30°C, 50VA at 55°C
- 60Hz
- CSA & UR Approved
Terminals are brass studs No. 10-32 with one lockwasher, flatwasher and regular nut.
Show Advanced Filters
products found
| Item # | Voltage Rating (line to line) | Turns Ratio |
|---|---|---|
| 468-600 | 600:120 | 5:1 |
| 468-480 | 480:120 | 4:1 |
| 468-346 | 346:120 | 2.88:1 |
| 488-300 | 300:120 | 2.5:1 |
| 468-288 | 288:120 | 2.4:1 |
| 468-277 | 277:120 | 2.31:1 |
| 468-240 | 240:120 | 2:1 |
| 468-208 | 208:120 | 1.73:1 |
| 468-120 | 120:120 | 1:1 |
| 468-069 | 69.3:120 | 0.58:1 |
