Model 467 AC Voltage Transformers – Weschler

Description

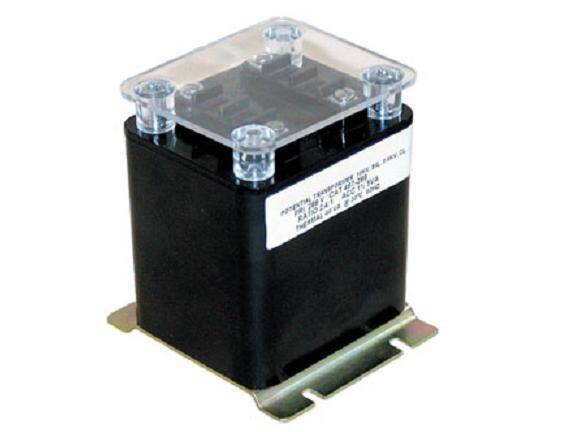

Weschler Model 467 Voltage Transformers: Single Phase;  Accuracy: 1%@5 VA ; Thermal Rating:40VA : These transformers are encased in a thermoplastic case with the core and windings encapsulated in resin. They are designed for line to line operation but may also be used in line to neutral or line to ground configuration at 58% of rated voltage.

It is recommended that a 0.40 Amp fuse be used in the secondary to protect the transformer

  • 600V Insulation Level, 10kV BIL
  • ±1% Accuracy Class up to 5VA Burden
  • 40VA at 30°C, 27VA at 55°C
  • 60Hz
  • CSA & UR Approved

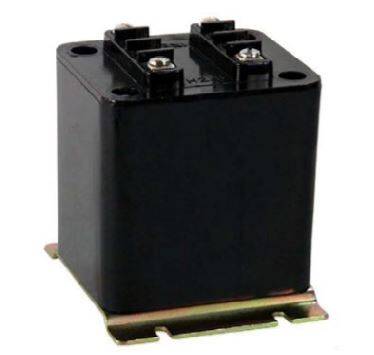

Terminals are No. 6-32 binding head screws and cup washer.

Catalog-Page-92                          Weschler-467-Datasheet

This product is currently out of stock and unavailable.

Show Advanced Filters

products found
Item # Voltage Rating (line to line) Ratio
467-208240:1201.73:1
467-480480:1204:1
467-380380:1203.17:1 for 50 Hz
467-06969.3:1200.58:1
467-600300:1205:1
467-300288:1202.5:1
467-288288:1202.4:1
467-24069.3:1202:1
467-120380:1201:1
