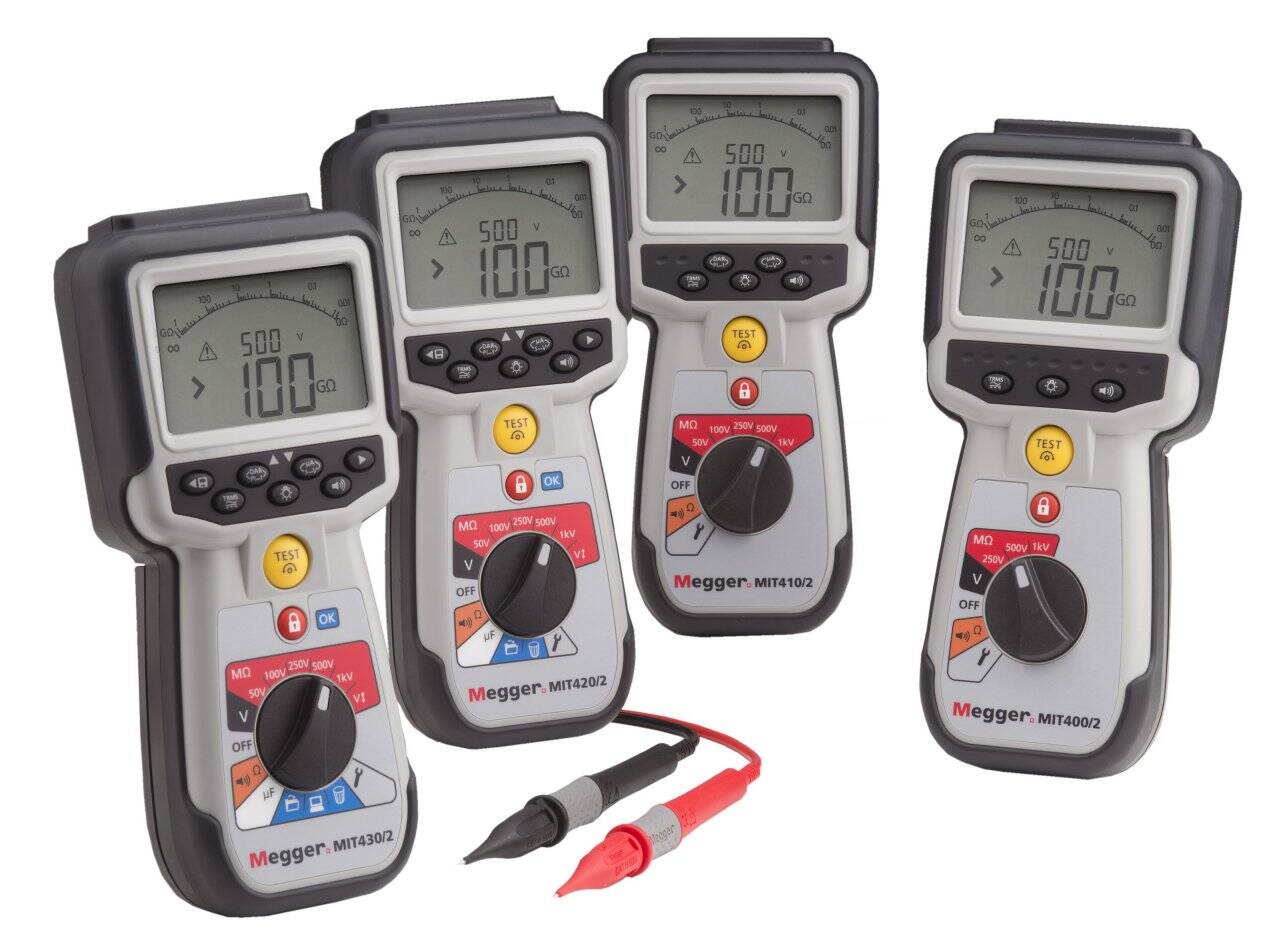

MIT400/2 Series Insulation Resistance Testers – Megger
Description
The MIT400/2 Series Insulation Testers offer outstanding performance and ease of use. Dual digital displays show test results and test voltage or current simultaneously. The hands-free, auto-ranging continuity function ensures the accurate measurement of circuit conductors and bonding. An audible continuity alarm speeds testing.
- Insulation resistance measurements to 200GΩ; selectable test voltages to 1000V
- Backlit LCD with dual digital and analog arc displays
- Leakage current readout
- Live circuit detection & protecton
- PI/DAR and Timer functions (except MIT400/2)IP54 & CAT IV 600V rating
The MIT series offers TRMS & DC Voltage measurements from 10mV to 600V. The MIT420/2 and MIT430/2 add capacitance (100pf to 10uF), and test result storage/recall. MIT430/2 has Bluetooth for wireless data transfer (including download software). All models except the MIT400/2 include frequency measurement (15-400Hz). Every unit comes with carrying case, test leads, and battery. All models except the MIT400/2 also include a remote switch probe for “hands free” testing
| Item # | Description | Test Voltage (VDC) | Insulation Resistance | Resistance Range | Display |
|---|---|---|---|---|---|
| ME/MIT430/2 | Cat# 1006-746 PI + DAR + VAR (New) + Bluetooth | 50, 100, 250, 500, 1000, variable | 0.01 Mohm to 200 Gohm | 0.01 ohm to 999 kohm | Analog/Dual Digital |
| ME/MIT420/2 | Cat# 1006-740 PI + DAR + VAR (New) & result storage | 50, 100, 250, 500, 1000, variable | 0.01 Mohm to 200 Gohm | 0.01 ohm to 999 kohm | Analog/Dual Digital |
| ME/MIT410/2 | Cat# 1006-732 PI+DAR | 50, 100, 250, 500, 1000 | 0.01 Mohm to 200 Gohm | 0.01 ohm to 999 kohm | Analog/Dual Digital |
| ME/MIT400/2 | Cat# 1006-719 | 250, 500, 1000 | 0.01 Mohm to 200 Gohm | 0.01 ohm to 999 kohm | Analog/Dual Digital |
