Laurel Universal Input Digital Meter – L40 series

Description

The Laurel L40 Universal Input Digital Meter has 65 user-selectable analog input signal types and ranges. These include DC voltage and current, AC RMS voltage and current, process signals (4-20 mA, 0-10V), thermocouple (10 types, °C or °F), RTD (6 types, °C or °F), thermistors (NTC or PTC), resistance (0-5k or 0-50k ohms), and potentiometer inputs. The same meter handles all signal types with no need for a plug-in signal conditioner board.

  •  Universal input: DC V/A, AC RMS V/A, process, temperature, resistance, potentiometer
  •  65 user selectable function/range combinations
  •  Measures frequency (15.0-100.0Hz) on an AC voltage or current input
  •  18-265V AC/DC power
  •  0.2% basic DC accuracy
  •  Relay & analog output options
  •  RS-485 Modbus option

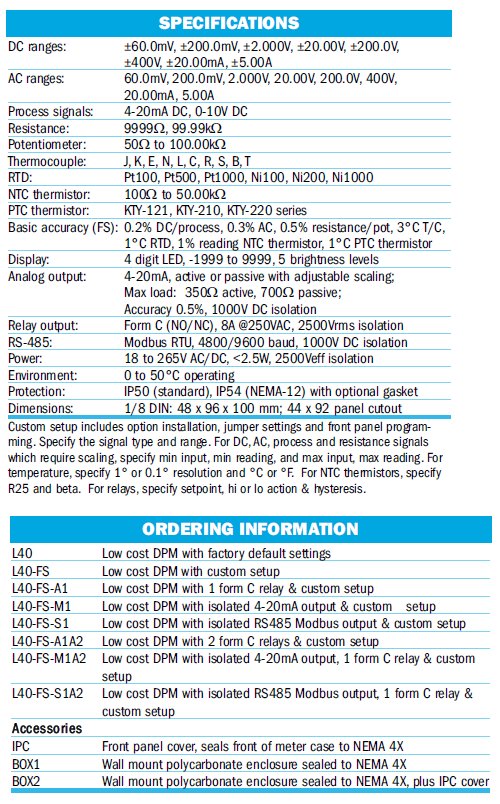

Catalog Page 021b                            Laurel-L40 Datasheet


products found
Item # Description Price
L40-FS-S1A2Low cost DPM with isolated RS485 Modbus output, 1 form C relay & custom setup$259.00
L40Low cost DPM with factory default settings$148.00
L40-FSLow cost DPM with custom setup$171.00
L40-FS-A1Low cost DPM with 1 form C relay & custom setup$204.00
L40-FS-M1Low cost DPM with isolated 4-20mA output & custom setup$226.00
L40-FS-S1Low cost DPM with isolated RS485 Modbus output & custom setup$226.00
L40-FS-A1A2Low cost DPM with 2 form C relays & custom setup$237.00
L40-FS-M1A2Low cost DPM with isolated 4-20mA output, 1 form C relay & custom setup$259.00
