Laurel Quad Loop Splitter

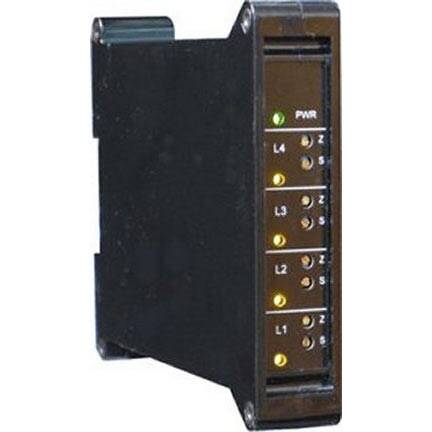

Laurel QLS Quad Output Current Loop Splitter / Retransmitter: The QLS Quad Output Loop Splitter sources up to four independently adjustable 4-20 mA current outputs from a single 4-20 mA, 1-5V, 0-5V or 0-10V input. The inputs and outputs can have the same or different grounds.

In many industrial applications, the same 4-20 DCmA signal from a transmitter is sent to multiple devices in series, such as panel meters, recorders and PLCs. This can cause a number of problems. The Laurel QLS Quad Loop Splitter solves these problems by sourcing up to 4 independently adjustable 4-20 DCmA outputs from a single input. If any device in an output loop is removed from a loop or fails, or if a wiring fault occurs, the remaining loops continue to operate properly. Each loop only drives a single load, avoiding compliance problems. The input to the quad loop splitter can be 4-20 DCmA, 0-5 DCV, 1-5 DCV, or 0-10 DCV as selected by jumpers.

  • Accepts 4-20mA, 1-5V, 0-5V or 0-10V Input
  • Four Independent 4-20mA Outputs
  • Remote Output Grounds Can Differ By Up to ±10V
  • Indicator LED for Each Connected Output
  • Loop Current Test Point for Each Output (200mV=20mA)
  • Front Panel Zero and Span Adjustments for Each Output
  • AC or DC Powered

ETL listed US & Canada

Laurel Quad Loop Splitter Specs

Catalog-Page-86a                    QLS Datasheet

products found
Item # Description Price
QLS-1Quad Isolated Output Loop Splitter/Retransmitter,95-264 Vac (47-63 Hz) or 90-300 Vdc power$274.00
QLS-2Quad Isolated Output Loop Splitter/Retransmitter, 10-48 Vdc or 12-32 Vac (47-63 Hz) power$274.00
