Datalogging Sound Level Meter – SDL600 – Extech

Description

click to view larger image

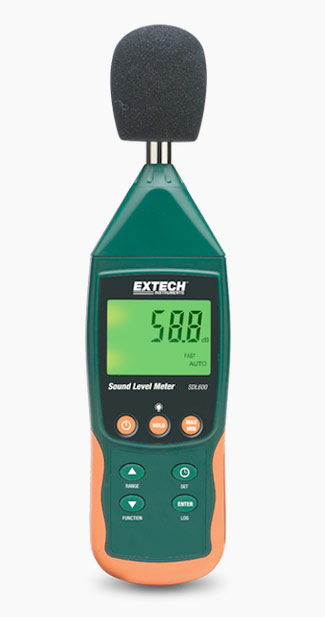

The Extech SDL600 records sound data on an SD card in Excel format. High accuracy of ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards for OSHA and other national or local noise standards.

• • ±1.4dB accuracy meets ANSI and IEC 61672-1 Type 2 standards
  • 30 to 130dB measurement range
  • Auto or Manual ranging
  • AC analog output for connection to an analyzer or recorder
  • Large backlit LCD display
  • Stores 99 readings manually and 20M readings via 2G SD card
  • Records readings with date and time stamp
  • User programmable sampling rate: 1 to 3600 seconds
  • Min/Max and Data Hold functions
  • Auto power off with disable function

  Complete with 6 AA batteries, SD Card, wind screen, and hard carrying case.

•

SDL600-Datasheet      407744 and 407766 Datasheet
