AEMC Simple Logger® II Data Loggers (1 and 2 Channel)
Description
- Compact size, battery operated
- Easily installed, operational in seconds
- TRMS measurement for accuracy on distorted waveforms
- Programmable alarm setpoints & triggers
- 5 LED indicators display logger status
- Choice of data storage modes
- Stores >240k measurements in non-volatile memory
- DataView software displays & analyzes real-time data on a PC
Simple Logger® II Model CL601 (Clamp-On)
The Simple Logger® II Model CL601 is a one channel recording device with an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. It records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals. This logger can perform a variety of recording tasks with easy and intuitive setup from a computer using the free DataView® software included with the unit.
Simple Logger® II Model L562
The Simple Logger® II Model L562 is a two channel Volt/Amp data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode XRMTM and delayed start time are just two of the many application friendly features. The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.
NOTE: There are many compatible current probes available as an accessory. The following current probes will also need the Adapter Cat. #2118.46 which is sold separately:
1000-24-1-1 | 1000-24-2-1 | 1000-36-2-1 | 6000-36-2-0.1 | MN03 | MN255 | MN353 | MN373 | MN375 | SR661 | SR752 | SR759

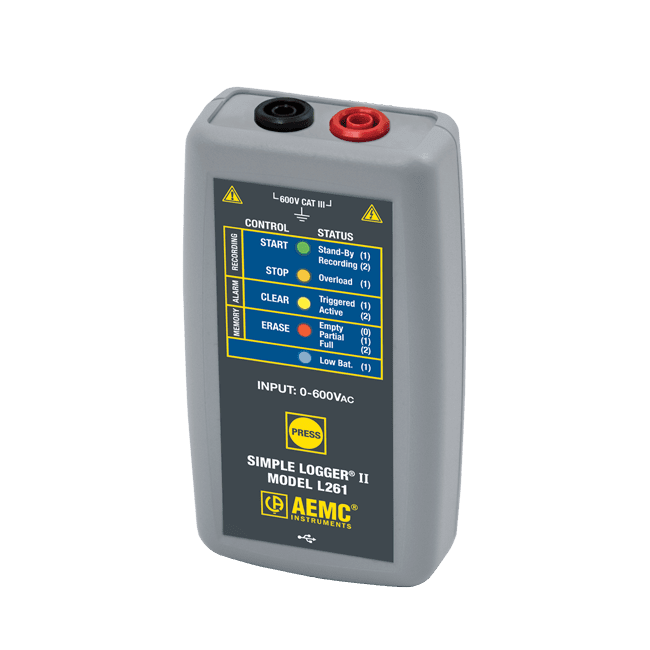

Simple Logger® II Model L261
The Simple Logger® II Model L261 is a one channel recording device powered by two alkaline batteries. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. Harmonics are only available from the Simple Logger® II Control Panel within the free DataView® software included with the unit. The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.
| Item # | Item Name | Price |
|---|---|---|
| AE/2126.01 | Simple Logger ® II Model CL601 (Clamp-On, TRMS Current, 0 to 600A, 1.65" jaw opening) | $525.00 |
| AE/2126.35 | Simple Logger ® II Model L562 (TRMS Voltage & Current) | $490.00 |
| AE/2126.05 | Simple Logger ® II Model L261 (TRMS, 0 to 600VAC/DC, 1 channel) | $499.00 |
