AEMC Portable Hand-Held Oscilloscopes with WiFi – OX 9000 series

Description

The AEMC OX 9000 series portable hand-held oscilloscopes are rugged two or four channel units with a bandwidth of 60, 100 or 300 MHz, FFT function, recording mode, and power measurement capability. The OX9000 Series Oscilloscopes with isolated channels are four instruments in one. They can be used as an Oscilloscope, Multimeter, Harmonic Analyzer or Data Logger. A simple press of a button or touch screen icon accesses the mode you want. They are ergonomically designed and utilize keypad benefits originally developed for the automotive industry. Time base and scaling adjustments are effortless by simply pressing the Auto Set button. Input probe characteristics are automatically identified when the probe is plugged in. They also have WiFi, Ethernet and USB communication capability.

  • OX 9062 IV  (2-Channel, 60MHz)  #2150.31
  • OX 9102 IV (2- Channel, 100MHz) #2150.32
  • OX 9104 IV (4-Channel, 100MHz)  #2150.33

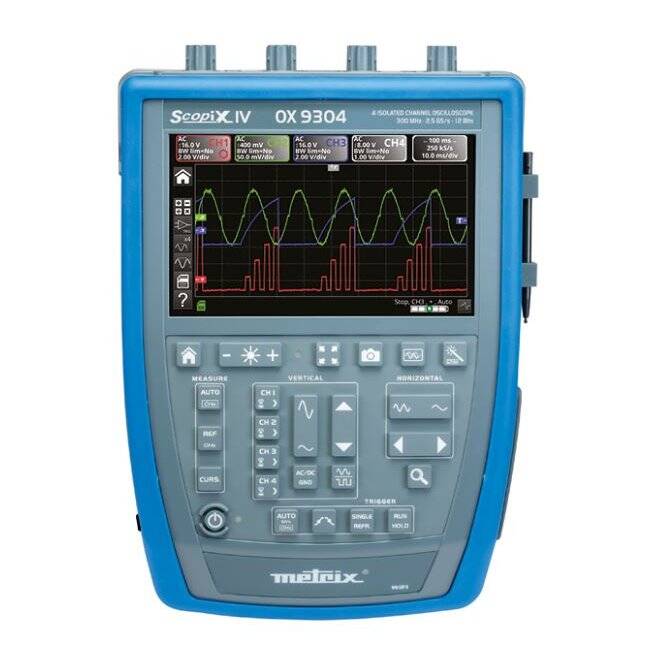

  • OX 9304 IV  (4-Channel, 300MHz)  #2150.34

FEATURES:

  • Two or four fully isolated 600V, CATIII rated channels
  • Scope, Multimeter, Harmonic Analysis and Recorder/Logger modes instantly available at the press of a button
  • 8 hours of rechargeable battery life
  • 60, 100 and 300 MHz bandwidth models
  • New triggering and recording options
  • 12 bit resolution and 2.5 GS/sec sampling
  • 7” WVGA color FFT touch screen with 800 x 480 dpi & manual or automatic brightness
  • WiFi, Ethernet and USB communication capability
  • Increased storage capacity (microSD) and much more!

APPLICATIONS:

  • Field Troubleshooting
  • Education
  • Electronic and Industrial Maintenance



AEMC-Brochure-OX9000Series

Clear
Show Advanced Filters

products found
Item # Model Channels Frequency Price
2150.34OX 9304 IV4300 MHz$4,950.00
2150.32OX 9102 IV2100MHz$3,750.00
2150.33OX 9104 IV4100MHz$4,350.00
2150.31OX 9062 IV260MHz$2,795.00
