AC Voltmeters (Switchboard) – Crompton
Description
High quality range of switchboard instruments with Class 1 accuracy and which complies with American ANSI-C39.1 specifications. Available in 4½” case size, the rugged design characteristics meet the needs of the most demanding environmental applications. This extensive range of analog and digital/analog meters utilizes high shock and provides 1% accuracy for all RMS AC and DC ranges. The range offers various customized options and features.
Mounting is by four integral studs. Scales are 240° moving iron and 250° moving coil with parallax error-free platform dials. Standard dials are white matte with black printed scales and bar knife-edge pointers
Crompton Switchboard Meters offers two case types; models 007 and 078

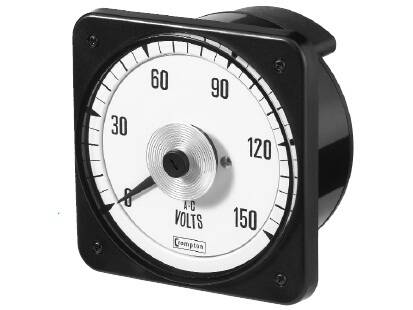

- Model 007 is a one piece flame retardant polycarbonate moulding with a black matte finished bezel area, and a specially contoured window to minimize reflection from adjacent light sources.
- Model 078 is high shock hermetically sealed and all models have heavy gauge pressed steel cases.They have a die-cast bezel and a projecting moulded toughened glass window, which incorporates a gas tight zero adjuster.
Features
- 250° Linear Scale
- AC Instruments with True RMS Circuit
- Rugged Pivot & Jewel Movement
- IP54 Front
- c-UL-us & CE Certification
- Optional Terminal Cover (007 Case)
Show Advanced Filters
products found
| Item # | Type | Rating (V) | Scale | Case |
|---|---|---|---|---|
| 007-05GA-PZPZ-C7 | RMS Reading Self Contained | 150 | 0-150 V | 4 1/2 Plastic Case |
| 007-05GA-RXRX-C7 | RMS Reading Self Contained | 300 | 0-300 V | 4 1/2 Plastic Case |
| 007-05GA-SJSJ-C7 | RMS Reading Self Contained | 600 | 0-600 V | 4 1/2 Plastic Case |
| 007-05GA-SMSM-C7 | RMS Reading Self Contained | 750 | 0-750 V | 4 1/2 Plastic Case |
| 078-05GJ-PZPZ-C6 | RMS Reading Self Contained | 150 | 0-150 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-RSRS-C7 | RMS Reading Self Contained | 250 | 0-250 V | 4 1/2 Plastic Case |
| 078-05GJ-SMSM-C6 | RMS Reading Self Contained | 750 | 0-750 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-SFSF-C7 | RMS Reading Self Contained | 500 | 0-500 V | 4 1/2 Plastic Case |
| 078-05GJ-RXRX-C6 | RMS Reading Self Contained | 300 | 0-300 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-PZSJ-C7 | RMS Reading Transformer Rated | 150 | 0-600 V | 4 1/2 Plastic Case |
| 078-05GJ-SJSJ-C6 | RMS Reading Self Contained | 600 | 0-600 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-PZSM-C7 | RMS Reading Transformer Rated | 150 | 0-750 V | 4 1/2 Plastic Case |
| 007-05GA-PZUA-C7 | RMS Reading Transformer Rated | 150 | 0-3000 V | 4 1/2 Plastic Case |
| 078-05GJ-RSRS-C6 | RMS Reading Self Contained | 250 | 0-250 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-SFSF-C6 | RMS Reading Self Contained | 500 | 0-500 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-PZRX-C7 | RMS Reading Transformer Rated | 150 | 0-300 V | 4 1/2 Plastic Case |
| 007-05GA-PZUL-C7 | RMS Reading Transformer Rated | 150 | 0-5250 V | 4 1/2 Plastic Case |
| 007-05GA-PZWJ-C7 | RMS Reading Transformer Rated | 150 | 0-45k V | 4 1/2 Plastic Case |
| 007-05GA-PZUY-C7 | RMS Reading Transformer Rated | 150 | 0-9000 V | 4 1/2 Plastic Case |
| 078-05GJ-PZSM-C6 | RMS Reading Transformer Rated | 150 | 0-750 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-PZWJ-C6 | RMS Reading Transformer Rated | 150 | 0-45k V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-PZUP-C7 | RMS Reading Transformer Rated | 150 | 0-6000 V | 4 1/2 Plastic Case |
| 007-05GA-RSSJ-C7 | RMS Reading Transformer Rated | 250 | 0-600 V | 4 1/2 Plastic Case |
| 007-05YA-PN**-C6 | RMS Expanded Scale | 110-130 | To Suit PT | 4 1/2 Plastic Case |
| 078-05GJ-PZWD-C6 | RMS Reading Transformer Rated | 150 | 0-18k V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-PZWC-C6 | RMS Reading Transformer Rated | 150 | 0-15k V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05YJ-PN**-C6 | RMS Expanded Scale | 110-130 | To Suit PT | 4 1/2 Square Flange Hi-Shock Case |
| 007-05YA-PNPN-C6 | RMS Expanded Scale | 110-130 | 110-130 V | 4 1/2 Plastic Case |
| 078-05GJ-RSSJ-C6 | RMS Reading Transformer Rated | 250 | 0-600 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-PZUY-C6 | RMS Reading Transformer Rated | 150 | 0-9000 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-PZWC-C7 | RMS Reading Transformer Rated | 150 | 0-15k V | 4 1/2 Plastic Case |
| 078-05GJ-PZRX-C6 | RMS Reading Transformer Rated | 150 | 0-300 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05YJ-PNPN-C6 | RMS Expanded Scale | 110-130 | 110-130 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-PZUL-C6 | RMS Reading Transformer Rated | 150 | 0-5250 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-PZUA-C6 | RMS Reading Transformer Rated | 150 | 0-3000 V | 4 1/2 Square Flange Hi-Shock Case |
| 078-05GJ-PZUP-C6 | RMS Reading Transformer Rated | 150 | 0-6000 V | 4 1/2 Square Flange Hi-Shock Case |
| 007-05GA-PZWD-C7 | RMS Reading Transformer Rated | 150 | 0-18k V | 4 1/2 Plastic Case |
| 078-05GJ-PZSJ-C6 | RMS Reading Transformer Rated | 150 | 0-600 V | 4 1/2 Square Flange Hi-Shock Case |
