Yokogawa Juxta Signal Conditioners

Description

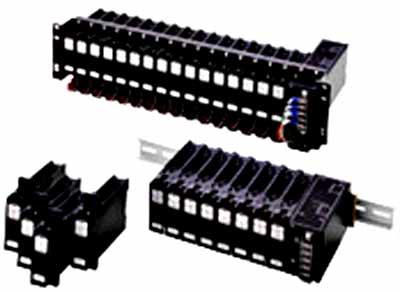

Juxta F Series signal conditioners are compact, space-saving (24 mm width) signal conditioners with front panel terminals. Microprocessor based models receive an input signal, apply various computing functions (e.g. square root), and output an isolated DC current or DC voltage signal.  The F Series provides field configuration capability and minimum stock of spares. Installation is either DIN-Rail, Rack or Wall mounting, and the power supply is 24 V DC.

The specifications of W Series signal conditioners are same as F Series signal conditioners except for power supply voltage, second output and case width.

The Juxta VJ Series signal conditioners are compact, but the line-up includes versatile I/O specifications, wide-range of power supply, isolated two outputs and field configurable models.  Plug-in style and microprocessor based performance (Multi-function types) make the VJ Series an excellent choice for almost every application. Analog output, Hi-Lo alarm relay outputs or RS-485 MODBUS communication is available as an optional second output. Various parameters such as input range and computation programs can be set and modified using a PC or Hand Terminal.

The VJ series limit alarms are compact, plug-in type alarm setting devices with easy-to-use functions. Four models are available: the VJAK for 2-wire system transmitters; the VJHK with DC voltage/DC current inputs; the VJRK with RTD inputs; the VJTK with thermocouple inputs; and the VJUK with universal inputs.

Input functions for Juxta signal conditioners include mA DC, V DC, V AC, 1A or 5A AC, RTD, thermocouple, potentiometer, pulse and tach generator.    Standard output is a DC process signal.  Pulse output available on select models.



Contact Weschler for specific part numbers and pricing.  Also contact Weschler for replacement of obsolete Juxta 2469 and 2489 Series transducers.

This product is currently out of stock and unavailable.


products found
Item # Type
Juxta VJ Series Signal ConditionerSignal Conditioner & Isolator
Juxta W Series Signal ConditonerSignal Conditioner & Isolator
Juxta F Series Signal ConditionerSignal Conditioner & Isolator
Juxta VJ Series AlarmIsolator & Alarm
