Yokogawa Dual Display Process Meters – PROPLUS YPP6000
Description

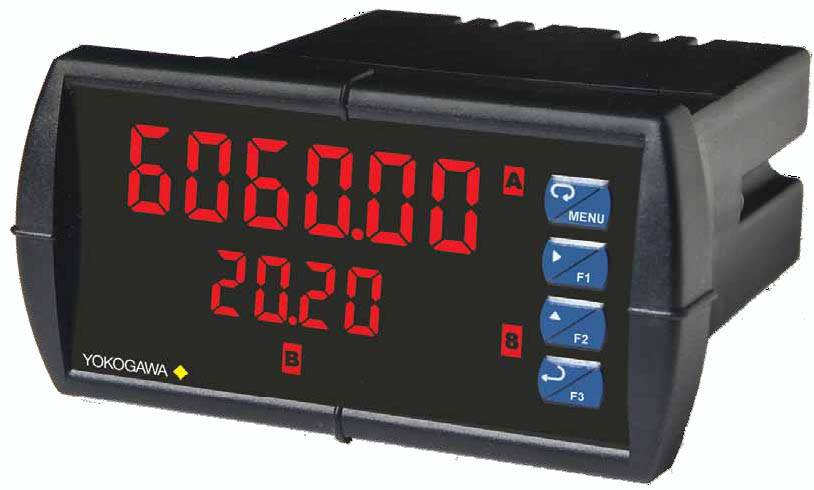

The Yokogawa PROPLUS YPP6000 meter boasts specifications and functionality that clearly make it one of the most advanced process meters available. Its dual-line 6-digit display (999,999), advanced signal input conditioning functions, function keys, Modbus RTU serial communications, and optional expansion modules are only a few of the features available.
The PROPLUS YPP6000 has a rather unique, and very flexible dual-scale capability; a second scaled display can represent the measured input in a different form (i.e. gallons & height). This is of particular value in level applications. Please see the examples shown below. Both displays are independently scaled and are based on the 4-20 mA input signal. Beyond level, this function has been used for pressure & force, current & power, feet & meters, GPM & CFM, and more.
PROPLUS’s large 0.6″ upper display provides a highly accurate and precise 6-digit view of the process measurement. Its 24-bit A/D is accurate to ±0.03% of calibrated span ±1 count. The upper display can be programmed to indicate PV, maximum (peak), minimum (valley), alternating maximum/minimum, one of eight alarm set points, or Modbus input. The lower display can also be configured to display engineering units, set points, user defined legends, or simply turned off.
- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Ranges
- Dual-Scale for Level Applications – Single Input
- Isolated 24 VDC @ 200 mA Transmitter Power Supply
- Signal Conditioning for Flow & Round Horizontal Tanks
- 32-Point, Square Root, or Exponential Linearization
- Multi-Pump Alternation Control
- Tare Function
Catalog Page 22a ProPlus-Software Guide YEW-YPP6000-Datasheet
| Item # | Input | Power | Display | Options |
|---|---|---|---|---|
| YPP6060-6H0 | Dual Process V & mA | 85-265 VAC | Sunlight Bright red | None |
| YPP6060-6H2 | Dual Process V & mA | 85-265 VAC | Sunlight Bright red | 2 relays |
| YPP6060-6H3 | Dual Process V & mA | 85-265 VAC | Sunlight Bright red | 4-20mA output |
| YPP6060-6H4 | Dual Process V & mA | 85-265 VAC | Sunlight Bright red | 4 relays |
| YPP6060-6H5 | Dual Process V & mA | 85-265 VAC | Sunlight Bright red | 2 relays & 4-2mA out |
| YPP6060-6H7 | Dual Process V & mA | 85-265 VAC | Sunlight Bright red | 4 relays & 4-20mA out |
| YPP6060-7H0 | Dual Process V & mA | 12/24 VDC | Sunlight Bright red | None |
| YPP6060-7H2 | Dual Process V & mA | 12/24 VDC | Sunlight Bright red | 2 relays |
| YPP6060-7H3 | Dual Process V & mA | 12/24 VDC | Sunlight Bright red | 4-20mA output |
| YPP6060-7H4 | Dual Process V & mA | 12/24 VDC | Sunlight Bright red | 4 relays |
| YPP6060-7H5 | Dual Process V & mA | 12/24 VDC | Sunlight Bright red | 2 relays & 4-2mA out |
| YPP6060-7H7 | Dual Process V & mA | 12/24 VDC | Sunlight Bright red | 4 relays & 4-20mA out |
| YPP6060-6R0 | Dual Process V & mA | 85-265 VAC | Standard Red | None |
| YPP6060-6R2 | Dual Process V & mA | 85-265 VAC | Standard Red | 2 relays |
| YPP6060-6R3 | Dual Process V & mA | 85-265 VAC | Standard Red | 4-20mA output |
| YPP6060-6R4 | Dual Process V & mA | 85-265 VAC | Standard Red | 4 relays |
| YPP6060-6R5 | Dual Process V & mA | 85-265 VAC | Standard Red | 2 relays & 4-2mA out |
| YPP6060-6R7 | Dual Process V & mA | 85-265 VAC | Standard Red | 4 relays & 4-20mA out |
| YPP6060-7R0 | Dual Process V & mA | 12/24 VDC | Standard Red | None |
| YPP6060-7R2 | Dual Process V & mA | 12/24 VDC | Standard Red | 2 relays |
| YPP6060-7R3 | Dual Process V & mA | 12/24 VDC | Standard Red | 4-20mA output |
| YPP6060-7R4 | Dual Process V & mA | 12/24 VDC | Standard Red | 4 relays |
| YPP6060-7R5 | Dual Process V & mA | 12/24 VDC | Standard Red | 2 relays & 4-2mA out |
| YPP6060-7R7 | Dual Process V & mA | 12/24 VDC | Standard Red | 4 relays & 4-20mA out |
| YPP6000-6H3 | Process V & mA | 85-265 VAC | Sunlight Bright red | 4-20mA output |
| YPP6000-6H4 | Process V & mA | 85-265 VAC | Sunlight Bright red | 4 relays |
| YPP6000-6H5 | Process V & mA | 85-265 VAC | Sunlight Bright red | 2 relays & 4-2mA out |
| YPP6000-6H7 | Process V & mA | 85-265 VAC | Sunlight Bright red | 4 relays & 4-20mA out |
| YPP6000-7H0 | Process V & mA | 12/24 VDC | Sunlight Bright red | None |
| YPP6000-7H2 | Process V & mA | 12/24 VDC | Sunlight Bright red | 2 relays |
| YPP6000-7H3 | Process V & mA | 12/24 VDC | Sunlight Bright red | 4-20mA output |
| YPP6000-7H4 | Process V & mA | 12/24 VDC | Sunlight Bright red | 4 relays |
| YPP6000-7H5 | Process V & mA | 12/24 VDC | Sunlight Bright red | 2 relays & 4-2mA out |
| YPP6000-7H7 | Process V & mA | 12/24 VDC | Sunlight Bright red | 4 relays & 4-20mA out |
| YPP6000-6R0 | Process V & mA | 85-265 VAC | Standard Red | None |
| YPP6000-6R2 | Process V & mA | 85-265 VAC | Standard Red | 2 relays |
| YPP6000-6R3 | Process V & mA | 85-265 VAC | Standard Red | 4-20mA output |
| YPP6000-6R4 | Process V & mA | 85-265 VAC | Standard Red | 4 relays |
| YPP6000-6R5 | Process V & mA | 85-265 VAC | Standard Red | 2 relays & 4-2mA out |
| YPP6000-6R7 | Process V & mA | 85-265 VAC | Standard Red | 4 relays & 4-20mA out |
| YPP6000-7R0 | Process V & mA | 12/24 VDC | Standard Red | None |
| YPP6000-7R2 | Process V & mA | 12/24 VDC | Standard Red | 2 relays |
| YPP6000-7R3 | Process V & mA | 12/24 VDC | Standard Red | 4-20mA output |
| YPP6000-7R4 | Process V & mA | 12/24 VDC | Standard Red | 4 relays |
| YPP6000-7R5 | Process V & mA | 12/24 VDC | Standard Red | 2 relays & 4-2mA out |
| YPP6000-7R7 | Process V & mA | 12/24 VDC | Standard Red | 4 relays & 4-20mA out |
| YPP6000-6H0 | Process V & mA | 85-265 VAC | Sunlight Bright red | None |
| YPP6000-6H2 | Process V & mA | 85-265 VAC | Sunlight Bright red | 2 relays |
