Yokogawa 185 Edgewise Panel Meter – Replacements

Description

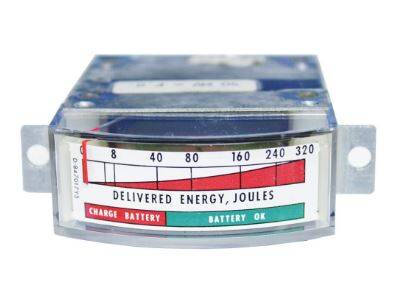

The 685 series of edgewise panel meters, are 2 1/2″ meters designed to handle applications where panel space is at a premium. They can be mounted in a horizontal or vertical orientation and can be flush mounted in space-saving clusters or with a bezel. They are accurate to within ±2% of full scale in DC and ±3% for AC. Special scaling and color swatches are possible for those applications that require complex scaling.

Replacements for Yokogawa 185 Edgewise Meters

  • 2.5″ Edgewise.
  • 2-Hole.
  • #10 Input Terminals.
  • Panel Mount with Bezel (Vertical or Horizontal).
  • Pivot & Jewel.
  • Black Lance Pointer.
  • Polystrene Case.
  • Made in the USA.
  • Warranty: 1 Year
  • Accuracy: 2% (0 to 100% Full Scale Deflection).
  • Relative Humidity: 20% to 80%RH (Nominal Use).
  • Operating Temperature: 32°F to 104°F (0°C to 40°C).
  • Performance: ANSI C39.1.
  • Enclosure: IP42

Optional custom dials available



Optional Bezel Mounting Kit for Single, Double or Triple Stack

685-DataSheet

Clear
Show Advanced Filters

products found
Item # Yokogawa PN Type Range Standard Scale
685011MTMT185011MTMTDC Voltmeter10 VDC0-10 VDC
685011NDND185011NDNDDC Voltmeter15 VDC0-15 VDC
685011NLNL185011NLNLDC Voltmeter30 VDC0-30 VDC
685011NTNT185011NTNTDC Voltmeter50 VDC0-50 VDC
685011PKPK185011PKPKDC Voltmeter100 VDC0-100 VDC
685011PZPZ185011PZPZDC Voltmeter150 VDC0-150 VDC
685011RXRX185011RXRXDC Voltmeter300 VDC0-300 VDC
685012NDND185012NDNDDC Voltmeter - Zero Center15-0-15 VDC15-0-15 VDC
685012NTNT185012NTNTDC Voltmeter - Zero Center50-0-50 VDC50-0-50 VDC
685012PZPZ185012PZPZDC Voltmeter - Zero Center150-0-150 VDC150-0-150 VDC
685171FASF185171FASFDC Voltmeter - Ext Resistor1 mADC0-500 VDC
685171FASJ185171FASJDC Voltmeter - Ext Resistor1 mADC0-600 VDC
685171FASM185171FASMDC Voltmeter - Ext Resistor1 mADC0-750 VDC
685111CYCY185111CYCYDC Microammeter50 uADC0-50 uADC
685111DRDR185111DRDRDC Microammeter100 uADC0-100 uADC
685111EMEM185111EMEMDC Microammeter500 uADC0-500 uADC
685111FAFA185111FAFADC Milliammeter1 mADC0-1 mADC
685111FXFX185111FXFXDC Milliammeter5 mADC0-5 mADC
685111GZGZ185111GZGZDC Milliammeter10 mADC0-10 mADC
685111HFHF185111HFHFDC Milliammeter20 mADC0-20 mADC
685111HYHY185111HYHYDC Milliammeter50 mADC0-50 mADC
685111JRJR185111JRJRDC Milliammeter100 mADC0-100 mADC
685111KGKG185111KGKGDC Milliammeter300 mADC0-300 mADC
685111KMKM185111KMKMDC Milliammeter500 mADC0-500 mADC
685112FAFA185112FAFADC Milliammeter - Zero Center1-0-1 mADC1-0-1 mADC
685112FXFX185112FXFXDC Milliammeter - Zero Center5-0-5 mADC5-0-5 mADC
685112GZGZ185112GZGZDC Milliammeter - Zero Center10-0-10 mADC10-0-10 mADC
685112HYHY185112HYHYDC Milliammeter - Zero Center50-0-50 mADC50-0-50 mADC
685112KMKM185112KMKMDC Milliammeter - Zero Center500-0-500 mADC500-0-500 mADC
685111LALA185111LALADC Ammeter - Self Contained1 ADC0-1 ADC
685111LSLS185111LSLSDC Ammeter - Self Contained5 ADC0-5 ADC
685111MTMT185111MTMTDC Ammeter - Self Contained10 ADC0-10 ADC
685121ECNG185121ECNGDC Ammeter - Shunt Rated50 mVDC0-20 ADC
685121ECNT185121ECNTDC Ammeter - Shunt Rated50 mVDC0-50 ADC
685121ECRX185121ECRXDC Ammeter - Shunt Rated50 mVDC0-300 ADC
685121ECSF185121ECSFDC Ammeter - Shunt Rated50 mVDC0-500 ADC
685051MTMT185051MTMTAC Voltmeter10 VAC0-10 VAC
685051NDND185051NDNDAC Voltmeter15 VAC0-15 VAC
685051NLNL185051NLNLAC Voltmeter30 VAC0-30 VAC
685051NTNT185051NTNTAC Voltmeter50 VAC0-50 VAC
685051PKPK185051PKPKAC Voltmeter100 VAC0-100 VAC
685051PZPZ185051PZPZAC Voltmeter150 VAC0-150 VAC
685151FAFA185151FAFAAC Milliammeter3 mAAC0-3 mAAC
685151FXFX185151FXFXAC Milliammeter5 mAAC0-5 mAAC
685151GZGZ185151GZGZAC Milliammeter10 mAAC0-10 mAAC
685151HFHF185151HFHFAC Milliammeter20 mAAC0-20 mAAC
685013MTMT185013MTMTDC Voltmeter10 VDC0-10 VDC
685013NDND185013NDNDDC Voltmeter15 VDC0-15 VDC
685013NLNL185013NLNLDC Voltmeter30 VDC0-30 VDC
685013NTNT185013NTNTDC Voltmeter50 VDC0-50 VDC
685013PKPK185013PKPKDC Voltmeter100 VDC0-100 VDC
685013PZPZ185013PZPZDC Voltmeter150 VDC0-150 VDC
685013RXRX185013RXRXDC Voltmeter300 VDC0-300 VDC
685014NDND185014NDNDDC Voltmeter - Zero Center15-0-15 VDC15-0-15 VDC
685014NTNT185014NTNTDC Voltmeter - Zero Center50-0-50 VDC50-0-50 VDC
685014PZPZ185014PZPZDC Voltmeter - Zero Center150-0-150 VDC150-0-150 VDC
685173FASF185173FASFDC Voltmeter - Ext Resistor1 mADC0-500 VDC
685173FASJ185173FASJDC Voltmeter - Ext Resistor1 mADC0-600 VDC
685173FASM185173FASMDC Voltmeter - Ext Resistor1 mADC0-750 VDC
685113CYCY185113CYCYDC Microammeter50 uADC0-50 uADC
685113DRDR185113DRDRDC Microammeter100 uADC0-100 uADC
685113EMEM185113EMEMDC Microammeter500 uADC0-500 uADC
685113FAFA185113FAFADC Milliammeter1 mADC0-1 mADC
685113FXFX185113FXFXDC Milliammeter5 mADC0-5 mADC
685113GZGZ185113GZGZDC Milliammeter10 mADC0-10 mADC
685113HFHF185113HFHFDC Milliammeter20 mADC0-20 mADC
685113HYHY185113HYHYDC Milliammeter50 mADC0-50 mADC
685113JRJR185113JRJRDC Milliammeter100 mADC0-100 mADC
685113KGKG185113KGKGDC Milliammeter300 mADC0-300 mADC
685113KMKM185113KMKMDC Milliammeter500 mADC0-500 mADC
685114FAFA185114FAFADC Milliammeter - Zero Center1-0-1 mADC1-0-1 mADC
685114FXFX185114FXFXDC Milliammeter - Zero Center5-0-5 mADC5-0-5 mADC
685114GZGZ185114GZGZDC Milliammeter - Zero Center10-0-10 mADC10-0-10 mADC
685114HYHY185114HYHYDC Milliammeter - Zero Center50-0-50 mADC50-0-50 mADC
685114KMKM185114KMKMDC Milliammeter - Zero Center500-0-500 mADC500-0-500 mADC
685113LALA185113LALADC Ammeter - Self Contained1 ADC0-1 ADC
685113LSLS185113LSLSDC Ammeter - Self Contained5 ADC0-5 ADC
685113MTMT185113MTMTDC Ammeter - Self Contained10 ADC0-10 ADC
685123ECNG185123ECNGDC Ammeter - Shunt Rated50 mVDC0-20 ADC
685123ECNT185123ECNTDC Ammeter - Shunt Rated50 mVDC0-50 ADC
685123ECRX185123ECRXDC Ammeter - Shunt Rated50 mVDC0-300 ADC
685123ECSF185123ECSFDC Ammeter - Shunt Rated50 mVDC0-500 ADC
685053MTMT185053MTMTAC Voltmeter10 VAC0-10 VAC
685053NDND185053NDNDAC Voltmeter15 VAC0-15 VAC
685053NLNL185053NLNLAC Voltmeter30 VAC0-30 VAC
685053NTNT185053NTNTAC Voltmeter50 VAC0-50 VAC
685053PKPK185053PKPKAC Voltmeter100 VAC0-100 VAC
685053PZPZ185053PZPZAC Voltmeter150 VAC0-150 VAC
685153FAFA185153FAFAAC Milliammeter3 mAAC0-3 mAAC
685153FXFX185153FXFXAC Milliammeter5 mAAC0-5 mAAC
685153GZGZ185153GZGZAC Milliammeter10 mAAC0-10 mAAC
685153HFHF185153HFHFAC Milliammeter20 mAAC0-20 mAAC
