Weschler Edgewise Switchboard Meters – Vertical

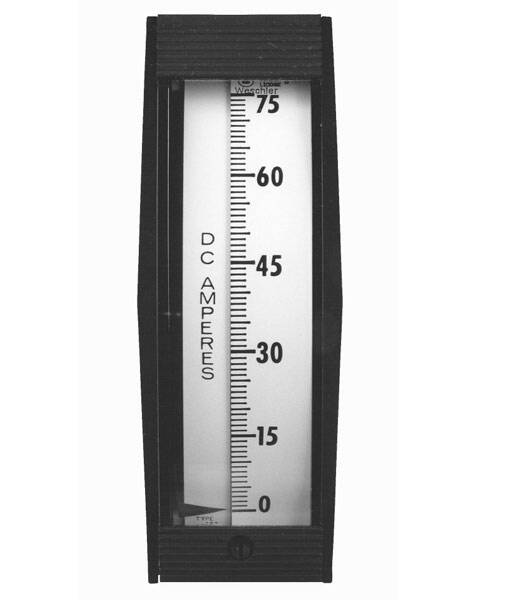

The VX-252, VC-252 & VR3-252 edgewise switchboard meters were designed specifically for the nuclear power industry. Their ruggedness and reliability make them an excellent choice for any control panel. They are used for direct measurement of standard electrical quantities, or in combination with transducers for measuring any other electrical or mechanical quantity that can be converted into a proportional electrical quantity.

The V252 Meters exceed the requirements for the 2% class specified in ANSI C39.1, and may be calibrated to 1% initial accuracy. They meet the flammability requirements of IEEE Standard 420-1973 and they have passed the seismic qualification tests under IEEE Standard 344-1987. Transducer-type frequency meters, varmeter, wattmeters and power factor meters are available.

Edgewise Switchboard Meters specs

VX252 & VC252 modifications available on request: white on black dial, dual scale, special colors, illumination, special calibration and custom ranges.

Catalog Page 055                X-252 Specifications                 Style-Listings-Switchboard


Show Advanced Filters

products found
Item # Model Type Rating Standard Scale
644B018A11VC-252AC Volts Transformer-Rated0-150 V0-3000 AC Volts
644B651A10VX-252DC Microammeter0-50 uA0-50 Microamperes
670B408A16VR3-252Frequency Meter, Self-Contained120 V350-450 Hertz
644B651A11VX-252DC Micoammeter0-100 uA0-100 Microamperes
671B379A09VX-252Power Factor, 3 Phase, 3 Wire, 60 Hz120V, 5A.5-1-.5 (Lag - Lead) Power Factor
644B651A12VX-252DC Microammeter0-200 uA0-200 DC Microamperes
714B607A09VX-252Single Phase Watts - 1 Element120V, 5ASpecify
644B651A13VX-252DC Microammeter0-500 uA0-500 DC Microamperes
714B607A10VX-252Single Phase Watts - 2 Element, 3 Wire120V, 5ASpecify
606B419A09VX-252DC Milliammeter0-1 mA0-1 DC Milliamperes
714B607A11VX-2523 Phase Watts - 2 1/2 Element, 4 Wire120V, 5ASpecify
606B419A10VX-252DC Milliammeter0-2 mA0-2 DC Milliamperes
714B607A26VX-2523 Phase VAR - 2 Element, 3 Wire120V, 5ASpecify
606B419A11VX-252DC Milliammeter0-3 mA0-3 DC Milliamperes
714B607A27VX-2523 Phase VAR - 2 1/2 Element, 4 Wire120V, 5ASpecify
606B419A27VX-252DC Milliamperes4-20 mAAdvise
606B419A12VX-252DC Milliammeter0-5 mA0-5 DC Milliamperes
606B419A14VX-252DC Milliammeter0-10 mA0-10 DC Milliamperes
606B419A16VX-252DC Milliammeter0-20 mA0-20 DC Milliamperes
606B419A18VX-252DC Milliammeter0-50 mA0-50 DC Milliamperes
606B419A21VX-252DC Milliammeter0-200 mA0-200 DC Milliamperes
606B419A24VX-252DC Milliammeter0-500 mA0-500 DC Milliamperes
606B421A10VX-252DC Ammeter0-2 A0-2 DC Amperes
606B421A11VX-252DC Ammeter0-5 A0-5 DC Amperes
606B421A15VX-252DC Ammeter15 A0-15 DC Amperes
606B421A14VX-252DC Ammeter0-20 A0-20 DC Amperes
606B623A14VX-252DC Ammeter - Shunt Rated0-50 mV0-10 DC Amperes
606B623A15VX-252DC Ammeter - Shunt Rated0-50 mV0-15 DC Amperes
606B623A16VX-252DC Ammeter - Shunt Rated0-50 mV0-25 DC Amperes
606B623A17VX-252DC Ammeter - Shunt Rated0-50 mV0-50 DC Amperes
606B623A18VX-252DC Ammeter - Shunt Rated0-50 mV0-75 DC Amperes
606B623A19VX-252DC Ammeter - Shunt Rated0-50 mV0-100 DC Amperes
606B623A20VX-252DC Ammeter - Shunt Rated0-50 mV0-150 DC Amperes
606B623A21VX-252DC Ammeter - Shunt Rated0-50 mV0-200 DC Amperes
606B623A22VX-252DC Ammeter - Shunt Rated0-50 mV0-250 DC Amperes
606B623A23VX-252DC Ammeter - Shunt Rated0-50 mV0-300 DC Amperes
606B623A24VX-252DC Ammeter - Shunt Rated0-50 mV0-400 DC Amperes
606B623A25VX-252DC Ammeter - Shunt Rated0-50 mV0-500 DC Amperes
606B623A26VX-252DC Ammeter - Shunt Rated0-50 mV0-600 DC Amperes
606B623A28VX-252DC Ammeter - Shunt Rated0-50 mV0-1000 DC Amperes
606B623A29VX-252DC Ammeter - Shunt Rated0-50 mV0-1500 DC Amperes
606B623A33VX-252DC Ammeter - Shunt Rated0-50 mV0-4000 DC Amperes
606B623A38VX-252DC Ammeter - Shunt Rated0-50 mVSpecify
606B623A39VX-252DC Ammeter - Shunt Rated0-100 mVSpecify
606B623A09VX-252DC Millivoltmeter - Self-Contained0-50 mV0-50 DC Millivolts
606B623A11VX-252DC Millivoltmeter - Self-Contained0-200 mV0-200 DC Millivolts
606B623A10VX-252DC Millivoltmeter - Self-Contained0-100 mV0-100 DC Millivolts
606B623A12VX-252DC Millivoltmeter - Self-Contained0-500 mV0-500 DC Millivolts
606B413A22VX-252DC Volts0-1 V0-1 DC Volts
606B413A09VX-252DC Volts0-2 V0-2 DC Volts
606B413A10VX-252DC Volts0-5 V0-5 DC Volts
606B413A11VX-252DC Volts0-8 V0-8 DC Volts
606B413A12VX-252DC Volts0-10 V0-10 DC Volts
606B413A13VX-252DC Volts0-15 V0-15 DC Volts
606B413A14VX-252DC Volts0-30 V0-30 DC Volts
606B413A16VX-252DC Volts0-80 V0-80 DC Volts
606B413A17VX-252DC Volts0-100 V0-100 DC Volts
606B413A18VX-252DC Volts0-150 V0-150 DC Volts
606B413A19VX-252DC Volts0-300 V0-300 DC Volts
606B413A20VX-252DC Volts0-600 V0-600 DC Volts
606B413A23VX-252DC Volts0-800 V0-800 DC Volts
644B655A09VC-252AC Milliammeter0-10 mA10 AC Milliamperes
644B655A12VC-252AC Milliammeter100 mA100 AC Milliamperes
644B655A14VC-252AC Milliammeter0-500 mA500 AC Milliamperes
644B014A12VC-252AC Amperes Transformer-Rated5 A0-25 AC Amperes
644B014A14VC-252AC Amperes Transformer-Rated5 A0-40 AC Amperes
644B014A15VC-252AC Amperes Transformer-Rated5 A0-50 AC Amperes
644B014A16VC-252AC Amperes Transformer-Rated5 A0-75 AC Amperes
644B014A17VC-252AC Amperes Transformer-Rated5 A0-100 AC Amperes
644B014A18VC-252AC Amperes Transformer-Rated5 A0-150 AC Amperes
644B014A19VC-252AC Amperes Transformer-Rated5 A0-200 AC Amperes
644B014A20VC-252AC Amperes Transformer-Rated5 A0-300 AC Amperes
644B014A21VC-252AC Amperes Transformer-Rated5 A0-400 AC Amperes
644B014A22VC-252AC Amperes Transformer-Rated5 A0-500 AC Amperes
644B014A23VC-252AC Amperes Transformer-Rated5 A0-600 AC Amperes
644B014A24VC-252AC Amperes Transformer-Rated5 A0-800 AC Amperes
644B014A25VC-252AC Amperes Transformer-Rated5 A0-1000 AC Amperes
644B014A26VC-252AC Amperes Transformer-Rated5 A0-1200 AC Amperes
644B014A27VC-252AC Amperes Transformer-Rated5 A0-1500 AC Amperes
644B014A28VC-252AC Amperes Transformer-Rated5 A0-2000 AC Amperes
644B014A29VC-252AC Amperes Transformer-Rated5 A0-2500 AC Amperes
644B014A30VC-252AC Amperes Transformer-Rated5 A0-3000 AC Amperes
644B014A31VC-252AC Amperes Transformer-Rated5 A0-4000 AC Amperes
644B014A32VC-252AC Amperes Transformer-Rated5 A0-5000 AC Amperes
644B014A08VC-252AC Amperes Transformer-Rated5 ASpecify
606B424A11VC-252AC Amperes Self-Contained5 A0-5 AC Amperes
606B424A16VC-252AC Amperes Self-Contained8 A0-8 AC Amperes
606B424A12VC-252AC Amperes Self-Contained10 A0-10 AC Amperes
606B424A17VC-252AC Amperes Self-Contained15 A0-15 AC Amperes
606B424A13VC-252AC Amperes Self-Contained20 A0-20 AC Amperes
606B618A09VC-252AC Volts Self-Contained0-150 V0-150 AC Volts
606B618A10VC-252AC Volts Self-Contained0-300 V0-300 AC Volts
606B618A11VC-252AC Volts Self-Contained0-600 V0-600 AC Volts
644B018A10VC-252AC Volts Transformer-Rated0-150 V0-600 AC Volts
644B018A14VC-252AC Volts Transformer-Rated0-150 V0-9000 AC Volts
644B018A12VC-252AC Volts Transformer-Rated0-150 V0-5.25 AC Kilovolts
644B018A16VC-252AC Volts Transformer-Rated0-150 V0-18 AC Kilovolts
670B121A13VC-252Expanded Scale (Zener), Self-Contained90-130 V90-130 AC Volts
670B121A10VC-252Expanded Scale (Zener), Self-Contained100-140 V100-140 AC Volts
670B121A09VC-252Expanded Scale (Zener), Self-Contained110-130 V110-130 AC Volts
670B408A15VR3-252Frequency Meter, Self-Contained120 V59-61 Hertz
670B408A14VR3-252Frequency Meter, Self-Contained120 V58-62 Hertz
670B408A13VR3-252Frequency Meter, Self-Contained120 V55-65 Hertz
670B408A12VR3-252Frequency Meter, Self-Contained120 V50-70 Hertz
670B408A09VR3-252Frequency Meter, Self-Contained120 V45-55 Hertz
670B408A11VR3-252Frequency Meter, Self-Contained120 V45-65 Hertz
