Weschler Conventional Analog Panel Meters – DC Voltage & Current

Description

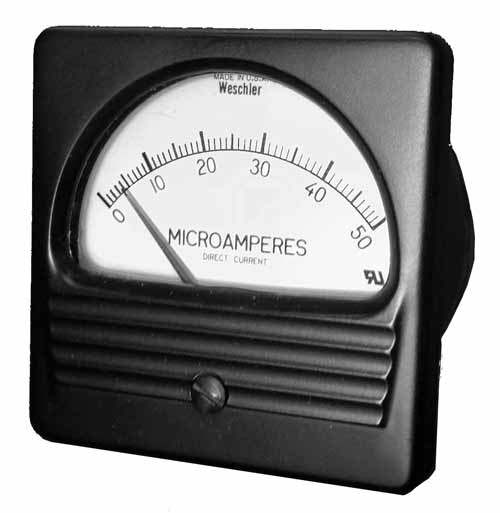

DC Panel Instruments Types 351 (3-1/2”), 371 (4-1/2″) Round and Rectangular

Weschler NX-351, NX-371, RA-371, RX-351 & RX-371 meet all performance requirements of ANSI C39.1-1981 for round and rectangular panel instruments. They employ conventional Taut Band mechanisms enclosed in black fluted cases designed to match the appearance of Westinghouse switchboard instruments and relays and other devices used on traditionally styled control panels.

Features
High Torque To Weight Ratio: Ensures rapid, accurate readings with high damping and minimum frictional effect. Easy To Read Scales: Linear on dc. Virtually linear above 10% of full scale on ac. Self Shielding: DC types are magnetically shielded and calibration is unaffected regardless of material or thickness of the mounting panel.

NX351, NX371, RA371, RX351 & RX371

Weschler-Panel-Conventional Weschler-style_listings-panel

Model

Type

Rating

Standard Scale

Case Size

Accuracy

Clear

SKU: N/A Categories: Ammeters, Analog Meters, Analog Panel Meters, Voltmeters, Weschler, Westinghouse

Show Advanced Filters

products found

Item #	Model	Type	Rating	Standard Scale	Case Size
291B554A12	RX-351	DC Microammeter	50 uA	0-50 DC Microamperes	3-1/2" Rectangular
409C534A15	RX-351	DC Microammeter	80 uA	0-80 DC Microamperes	3-1/2" Rectangular
409C534A09	RX-351	DC Microammeter	100 uA	0-100 DC Microamperes	3-1/2" Rectangular
409C534A10	RX-351	DC Microammeter	150 uA	0-150 DC Microamperes	3-1/2" Rectangular
409C534A11	RX-351	DC Microammeter	200 uA	0-200 DC Microamperes	3-1/2" Rectangular
409C534A12	RX-351	DC Microammeter	300 uA	0-300 DC Microamperes	3-1/2" Rectangular
409C534A13	RX-351	DC Microammeter	500 uA	0-500 DC Microamperes	3-1/2" Rectangular
409C534A14	RX-351	DC Microammeter	800 uA	0-800 DC Microamperes	3-1/2" Rectangular
291B554A23	NX-351	DC Microammeter	50 uA	0-50 DC Microamperes	3-1/2" Round
409C534A27	NX-351	DC Microammeter	80 uA	0-80 DC Microamperes	3-1/2" Round
409C534A21	NX-351	DC Microammeter	100 uA	0-100 DC Microamperes	3-1/2" Round
409C534A22	NX-351	DC Microammeter	150 uA	0-150 DC Microamperes	3-1/2" Round
409C534A23	NX-351	DC Microammeter	200 uA	0-200 DC Microamperes	3-1/2" Round
409C534A24	NX-351	DC Microammeter	300 uA	0-300 DC Microamperes	3-1/2" Round
409C534A25	NX-351	DC Microammeter	500 uA	0-500 DC Microamperes	3-1/2" Round
409C534A26	NX-351	DC Microammeter	800 uA	0-800 DC Microamperes	3-1/2" Round
291B290A11	RA-371	DC Microammeter	50 uA	0-50 DC Microamperes	4-1/2" Rectangular
409C569A14	RA-371	DC Microammeter	80 uA	0-80 DC Microamperes	4-1/2" Rectangular
409C569A08	RA-371	DC Microammeter	100 uA	0-100 DC Microamperes	4-1/2" Rectangular
409C569A09	RA-371	DC Microammeter	150 uA	0-150 DC Microamperes	4-1/2" Rectangular
409C569A10	RA-371	DC Microammeter	200 uA	0-200 DC Microamperes	4-1/2" Rectangular
409C569A11	RA-371	DC Microammeter	300 uA	0-300 DC Microamperes	4-1/2" Rectangular
409C569A12	RA-371	DC Microammeter	500 uA	0-500 DC Microamperes	4-1/2" Rectangular
409C569A13	RA-371	DC Microammeter	800 uA	0-800 DC Microamperes	4-1/2" Rectangular
291B290A23	NX-371	DC Microammeter	50 uA	0-50 DC Microamperes	4-1/2" Round
409C569A26	NX-371	DC Microammeter	80 uA	0-80 DC Microamperes	4-1/2" Round
409C569A20	NX-371	DC Microammeter	100 uA	0-100 DC Microamperes	4-1/2" Round
409C569A21	NX-371	DC Microammeter	150 uA	0-150 DC Microamperes	4-1/2" Round
409C569A22	NX-371	DC Microammeter	200 uA	0-200 DC Microamperes	4-1/2" Round
409C569A23	NX-371	DC Microammeter	300 uA	0-300 DC Microamperes	4-1/2" Round
409C569A24	NX-371	DC Microammeter	500 uA	0-500 DC Microamperes	4-1/2" Round
409C569A25	NX-371	DC Microammeter	800 uA	0-800 DC Microamperes	4-1/2" Round
409C531A08	RX-351	DC Milliammeter	1 mA	0-1 DC Milliamperes	3-1/2" Rectangular
409C531A09	RX-351	DC Milliammeter	1.5 mA	0-1.5 DC Milliamperes	3-1/2" Rectangular
409C531A10	RX-351	DC Milliammeter	2 mA	0-2 DC Milliamperes	3-1/2" Rectangular
409C531A11	RX-351	DC Milliammeter	3 mA	0-3 DC Milliamperes	3-1/2" Rectangular
409C531A12	RX-351	DC Milliammeter	5 mA	0-5 DC Milliamperes	3-1/2" Rectangular
409C531A13	RX-351	DC Milliammeter	8 mA	0-8 DC Milliamperes	3-1/2" Rectangular
409C531A14	RX-351	DC Milliammeter	10 mA	0-10 DC Milliamperes	3-1/2" Rectangular
409C531A15	RX-351	DC Milliammeter	15 mA	0-15 DC Milliamperes	3-1/2" Rectangular
409C531A16	RX-351	DC Milliammeter	20 mA	0-20 DC Milliamperes	3-1/2" Rectangular
409C531A17	RX-351	DC Milliammeter	30 mA	0-30 DC Milliamperes	3-1/2" Rectangular
409C531A18	RX-351	DC Milliammeter	50 mA	0-50 DC Milliamperes	3-1/2" Rectangular
409C531A19	RX-351	DC Milliammeter	80 mA	0-80 DC Milliamperes	3-1/2" Rectangular
409C531A20	RX-351	DC Milliammeter	100 mA	0-100 DC Milliamperes	3-1/2" Rectangular
409C531A21	RX-351	DC Milliammeter	150 mA	0-150 DC Milliamperes	3-1/2" Rectangular
409C531A22	RX-351	DC Milliammeter	200 mA	0-200 DC Milliamperes	3-1/2" Rectangular
409C531A23	RX-351	DC Milliammeter	300 mA	0-300 DC Milliamperes	3-1/2" Rectangular
409C531A24	RX-351	DC Milliammeter	500 mA	0-500 DC Milliamperes	3-1/2" Rectangular
409C531A25	RX-351	DC Milliammeter	800 mA	0-800 DC Milliamperes	3-1/2" Rectangular
409C531A32	NX-351	DC Milliammeter	1 mA	0-1 DC Milliamperes	3-1/2" Round
409C531A33	NX-351	DC Milliammeter	1.5 mA	0-1.5 DC Milliamperes	3-1/2" Round
409C531A34	NX-351	DC Milliammeter	2 mA	0-2 DC Milliamperes	3-1/2" Round
409C531A35	NX-351	DC Milliammeter	3 mA	0-3 DC Milliamperes	3-1/2" Round
409C531A36	NX-351	DC Milliammeter	5 mA	0-5 DC Milliamperes	3-1/2" Round
409C531A37	NX-351	DC Milliammeter	8 mA	0-8 DC Milliamperes	3-1/2" Round
409C531A38	NX-351	DC Milliammeter	10 mA	0-10 DC Milliamperes	3-1/2" Round
409C531A39	NX-351	DC Milliammeter	15 mA	0-15 DC Milliamperes	3-1/2" Round
409C531A40	NX-351	DC Milliammeter	20 mA	0-20 DC Milliamperes	3-1/2" Round
409C531A41	NX-351	DC Milliammeter	30 mA	0-30 DC Milliamperes	3-1/2" Round
409C531A42	NX-351	DC Milliammeter	50 mA	0-50 DC Milliamperes	3-1/2" Round
409C531A43	NX-351	DC Milliammeter	80 mA	0-80 DC Milliamperes	3-1/2" Round
409C531A44	NX-351	DC Milliammeter	100 mA	0-100 DC Milliamperes	3-1/2" Round
409C531A45	NX-351	DC Milliammeter	150 mA	0-150 DC Milliamperes	3-1/2" Round
409C531A46	NX-351	DC Milliammeter	200 mA	0-200 DC Milliamperes	3-1/2" Round
409C531A47	NX-351	DC Milliammeter	300 mA	0-300 DC Milliamperes	3-1/2" Round
409C531A48	NX-351	DC Milliammeter	500 mA	0-500 DC Milliamperes	3-1/2" Round
409C531A49	NX-351	DC Milliammeter	800 mA	0-800 DC Milliamperes	3-1/2" Round
409C565A08	RX-371	DC Milliammeter	1 mA	0-1 DC Milliamperes	4-1/2" Rectangular
409C565A09	RX-371	DC Milliammeter	1.5 mA	0-1.5 DC Milliamperes	4-1/2" Rectangular
409C565A10	RX-371	DC Milliammeter	2 mA	0-2 DC Milliamperes	4-1/2" Rectangular
409C565A11	RX-371	DC Milliammeter	3 mA	0-3 DC Milliamperes	4-1/2" Rectangular
409C565A12	RX-371	DC Milliammeter	5 mA	0-5 DC Milliamperes	4-1/2" Rectangular
409C565A13	RX-371	DC Milliammeter	8 mA	0-8 DC Milliamperes	4-1/2" Rectangular
409C565A14	RX-371	DC Milliammeter	10 mA	0-10 DC Milliamperes	4-1/2" Rectangular
409C565A15	RX-371	DC Milliammeter	15 mA	0-15 DC Milliamperes	4-1/2" Rectangular
409C565A16	RX-371	DC Milliammeter	20 mA	0-20 DC Milliamperes	4-1/2" Rectangular
409C565A17	RX-371	DC Milliammeter	30 mA	0-30 DC Milliamperes	4-1/2" Rectangular
409C565A18	RX-371	DC Milliammeter	50 mA	0-50 DC Milliamperes	4-1/2" Rectangular
409C565A19	RX-371	DC Milliammeter	80 mA	0-80 DC Milliamperes	4-1/2" Rectangular
409C565A20	RX-371	DC Milliammeter	100 mA	0-100 DC Milliamperes	4-1/2" Rectangular
409C565A21	RX-371	DC Milliammeter	150 mA	0-150 DC Milliamperes	4-1/2" Rectangular
409C565A22	RX-371	DC Milliammeter	200 mA	0-200 DC Milliamperes	4-1/2" Rectangular
409C565A23	RX-371	DC Milliammeter	300 mA	0-300 DC Milliamperes	4-1/2" Rectangular
409C565A24	RX-371	DC Milliammeter	500 mA	0-500 DC Milliamperes	4-1/2" Rectangular
409C565A25	RX-371	DC Milliammeter	800 mA	0-800 DC Milliamperes	4-1/2" Rectangular
409C565A32	NX-371	DC Milliammeter	1 mA	0-1 DC Milliamperes	4-1/2" Round
409C565A33	NX-371	DC Milliammeter	1.5 mA	0-1.5 DC Milliamperes	4-1/2" Round
409C565A34	NX-371	DC Milliammeter	2 mA	0-2 DC Milliamperes	4-1/2" Round
409C565A35	NX-371	DC Milliammeter	3 mA	0-3 DC Milliamperes	4-1/2" Round
409C565A36	NX-371	DC Milliammeter	5 mA	0-5 DC Milliamperes	4-1/2" Round
409C565A37	NX-371	DC Milliammeter	8 mA	0-8 DC Milliamperes	4-1/2" Round
409C565A38	NX-371	DC Milliammeter	10 mA	0-10 DC Milliamperes	4-1/2" Round
409C565A39	NX-371	DC Milliammeter	15 mA	0-15 DC Milliamperes	4-1/2" Round
409C565A40	NX-371	DC Milliammeter	20 mA	0-20 DC Milliamperes	4-1/2" Round
409C565A41	NX-371	DC Milliammeter	30 mA	0-30 DC Milliamperes	4-1/2" Round
409C565A42	NX-371	DC Milliammeter	50 mA	0-50 DC Milliamperes	4-1/2" Round
409C565A43	NX-371	DC Milliammeter	80 mA	0-80 DC Milliamperes	4-1/2" Round
409C565A44	NX-371	DC Milliammeter	100 mA	0-100 DC Milliamperes	4-1/2" Round
409C565A45	NX-371	DC Milliammeter	150 mA	0-150 DC Milliamperes	4-1/2" Round
409C565A46	NX-371	DC Milliammeter	200 mA	0-200 DC Milliamperes	4-1/2" Round
409C565A47	NX-371	DC Milliammeter	300 mA	0-300 DC Milliamperes	4-1/2" Round
409C565A48	NX-371	DC Milliammeter	500 mA	0-500 DC Milliamperes	4-1/2" Round
409C565A49	NX-371	DC Milliammeter	800 mA	0-800 DC Milliamperes	4-1/2" Round
409C530A08	RX-351	DC Ammeter - Self-Contained	1 A	0-1 DC Amperes	3-1/2" Rectangular
409C530A09	RX-351	DC Ammeter - Self-Contained	1.5 A	0-1.5 DC Amperes	3-1/2" Rectangular
409C530A10	RX-351	DC Ammeter - Self-Contained	2 A	0-2 DC Amperes	3-1/2" Rectangular
409C530A11	RX-351	DC Ammeter - Self-Contained	3 A	0-3 DC Amperes	3-1/2" Rectangular
409C530A12	RX-351	DC Ammeter - Self-Contained	5 A	0-5 DC Amperes	3-1/2" Rectangular
409C530A13	RX-351	DC Ammeter - Self-Contained	8 A	0-8 DC Amperes	3-1/2" Rectangular
409C530A14	RX-351	DC Ammeter - Self-Contained	10 A	0-10 DC Amperes	3-1/2" Rectangular
409C530A15	RX-351	DC Ammeter - Self-Contained	15 A	0-15 DC Amperes	3-1/2" Rectangular
409C530A16	RX-351	DC Ammeter - Self-Contained	20 A	0-20 DC Amperes	3-1/2" Rectangular
409C530A17	RX-351	DC Ammeter - Self-Contained	30 A	0-30 DC Amperes	3-1/2" Rectangular
409C530A18	RX-351	DC Ammeter - Self-Contained	50 A	0-50 DC Amperes	3-1/2" Rectangular
409C530A32	NX-351	DC Ammeter - Self-Contained	1 A	0-1 DC Amperes	3-1/2" Round
409C530A33	NX-351	DC Ammeter - Self-Contained	1.5 A	0-1.5 DC Amperes	3-1/2" Round
409C530A34	NX-351	DC Ammeter - Self-Contained	2 A	0-2 DC Amperes	3-1/2" Round
409C530A35	NX-351	DC Ammeter - Self-Contained	3 A	0-3 DC Amperes	3-1/2" Round
409C530A36	NX-351	DC Ammeter - Self-Contained	5 A	0-5 DC Amperes	3-1/2" Round
409C530A37	NX-351	DC Ammeter - Self-Contained	8 A	0-8 DC Amperes	3-1/2" Round
409C530A38	NX-351	DC Ammeter - Self-Contained	10 A	0-10 DC Amperes	3-1/2" Round
409C530A39	NX-351	DC Ammeter - Self-Contained	15 A	0-15 DC Amperes	3-1/2" Round
409C530A40	NX-351	DC Ammeter - Self-Contained	20 A	0-20 DC Amperes	3-1/2" Round
409C530A41	NX-351	DC Ammeter - Self-Contained	30 A	0-30 DC Amperes	3-1/2" Round
409C530A42	NX-351	DC Ammeter - Self-Contained	50 A	0-50 DC Amperes	3-1/2" Round
409C568A08	RX-371	DC Ammeter - Self-Contained	1 A	0-1 DC Amperes	4-1/2" Rectangular
409C568A09	RX-371	DC Ammeter - Self-Contained	1.5 A	0-1.5 DC Amperes	4-1/2" Rectangular
409C568A10	RX-371	DC Ammeter - Self-Contained	2 A	0-2 DC Amperes	4-1/2" Rectangular
409C568A11	RX-371	DC Ammeter - Self-Contained	3 A	0-3 DC Amperes	4-1/2" Rectangular
409C568A12	RX-371	DC Ammeter - Self-Contained	5 A	0-5 DC Amperes	4-1/2" Rectangular
409C568A13	RX-371	DC Ammeter - Self-Contained	8 A	0-8 DC Amperes	4-1/2" Rectangular
409C568A14	RX-371	DC Ammeter - Self-Contained	10 A	0-10 DC Amperes	4-1/2" Rectangular
409C568A15	RX-371	DC Ammeter - Self-Contained	15 A	0-15 DC Amperes	4-1/2" Rectangular
409C568A16	RX-371	DC Ammeter - Self-Contained	20 A	0-20 DC Amperes	4-1/2" Rectangular
409C568A17	RX-371	DC Ammeter - Self-Contained	30 A	0-30 DC Amperes	4-1/2" Rectangular
409C568A18	RX-371	DC Ammeter - Self-Contained	50 A	0-50 DC Amperes	4-1/2" Rectangular
409C568A32	NX-371	DC Ammeter - Self-Contained	1 A	0-1 DC Amperes	4-1/2" Round
409C568A33	NX-371	DC Ammeter - Self-Contained	1.5 A	0-1.5 DC Amperes	4-1/2" Round
409C568A34	NX-371	DC Ammeter - Self-Contained	2 A	0-2 DC Amperes	4-1/2" Round
409C568A35	NX-371	DC Ammeter - Self-Contained	3 A	0-3 DC Amperes	4-1/2" Round
409C568A36	NX-371	DC Ammeter - Self-Contained	5 A	0-5 DC Amperes	4-1/2" Round
409C568A37	NX-371	DC Ammeter - Self-Contained	8 A	0-8 DC Amperes	4-1/2" Round
409C568A38	NX-371	DC Ammeter - Self-Contained	10 A	0-10 DC Amperes	4-1/2" Round
409C568A39	NX-371	DC Ammeter - Self-Contained	15 A	0-15 DC Amperes	4-1/2" Round
409C568A40	NX-371	DC Ammeter - Self-Contained	20 A	0-20 DC Amperes	4-1/2" Round
409C568A41	NX-371	DC Ammeter - Self-Contained	30 A	0-30 DC Amperes	4-1/2" Round
409C568A42	NX-371	DC Ammeter - Self-Contained	50 A	0-50 DC Amperes	4-1/2" Round
409C530A20	RX-351	DC Ammeter - Shunt Rated	50 mV	0-15 DC Amperes	3-1/2" Rectangular
409C530A21	RX-351	DC Ammeter - Shunt Rated	50 mV	0-20 DC Amperes	3-1/2" Rectangular
409C530A22	RX-351	DC Ammeter - Shunt Rated	50 mV	0-30 DC Amperes	3-1/2" Rectangular
409C530A23	RX-351	DC Ammeter - Shunt Rated	50 mV	0-50 DC Amperes	3-1/2" Rectangular
409C530A24	RX-351	DC Ammeter - Shunt Rated	50 mV	0-80 DC Amperes	3-1/2" Rectangular
409C530A25	RX-351	DC Ammeter - Shunt Rated	50 mV	0-100 DC Amperes	3-1/2" Rectangular
409C530A26	RX-351	DC Ammeter - Shunt Rated	50 mV	0-150 DC Amperes	3-1/2" Rectangular
409C530A27	RX-351	DC Ammeter - Shunt Rated	50 mV	0-200 DC Amperes	3-1/2" Rectangular
409C530A28	RX-351	DC Ammeter - Shunt Rated	50 mV	0-300 DC Amperes	3-1/2" Rectangular
409C530A29	RX-351	DC Ammeter - Shunt Rated	50 mV	0-400 DC Amperes	3-1/2" Rectangular
409C530A30	RX-351	DC Ammeter - Shunt Rated	50 mV	0-500 DC Amperes	3-1/2" Rectangular
409C530A48	NX-351	DC Ammeter - Shunt Rated	50 mV	0-15 DC Amperes	3-1/2" Round
409C530A49	NX-351	DC Ammeter - Shunt Rated	50 mV	0-20 DC Amperes	3-1/2" Round
409C530A50	NX-351	DC Ammeter - Shunt Rated	50 mV	0-30 DC Amperes	3-1/2" Round
409C530A51	NX-351	DC Ammeter - Shunt Rated	50 mV	0-50 DC Amperes	3-1/2" Round
409C530A52	NX-351	DC Ammeter - Shunt Rated	50 mV	0-80 DC Amperes	3-1/2" Round
409C530A53	NX-351	DC Ammeter - Shunt Rated	50 mV	0-100 DC Amperes	3-1/2" Round
409C530A54	NX-351	DC Ammeter - Shunt Rated	50 mV	0-150 DC Amperes	3-1/2" Round
409C530A55	NX-351	DC Ammeter - Shunt Rated	50 mV	0-200 DC Amperes	3-1/2" Round
409C530A56	NX-351	DC Ammeter - Shunt Rated	50 mV	0-300 DC Amperes	3-1/2" Round
409C530A57	NX-351	DC Ammeter - Shunt Rated	50 mV	0-400 DC Amperes	3-1/2" Round
409C530A58	NX-351	DC Ammeter - Shunt Rated	50 mV	0-500 DC Amperes	3-1/2" Round
409C530A62	NX-351	DC Ammeter - Shunt Rated	50 mV	0-600 DC Amperes	3-1/2" Round
409C530A63	NX-351	DC Ammeter - Shunt Rated	50 mV	0-800 DC Amperes	3-1/2" Round
409C530A59	NX-351	DC Ammeter - Shunt Rated	50 mV	0-1000 DC Amperes	3-1/2" Round
409C568A20	RX-371	DC Ammeter - Shunt Rated	50 mV	0-15 DC Amperes	4-1/2" Rectangular
409C568A21	RX-371	DC Ammeter - Shunt Rated	50 mV	0-20 DC Amperes	4-1/2" Rectangular
409C568A22	RX-371	DC Ammeter - Shunt Rated	50 mV	0-30 DC Amperes	4-1/2" Rectangular
409C568A23	RX-371	DC Ammeter - Shunt Rated	50 mV	0-50 DC Amperes	4-1/2" Rectangular
409C568A24	RX-371	DC Ammeter - Shunt Rated	50 mV	0-80 DC Amperes	4-1/2" Rectangular
409C568A25	RX-371	DC Ammeter - Shunt Rated	50 mV	0-100 DC Amperes	4-1/2" Rectangular
409C568A26	RX-371	DC Ammeter - Shunt Rated	50 mV	0-150 DC Amperes	4-1/2" Rectangular
409C568A27	RX-371	DC Ammeter - Shunt Rated	50 mV	0-200 DC Amperes	4-1/2" Rectangular
.409C568A28	RX-371	DC Ammeter - Shunt Rated	50 mV	0-300 DC Amperes	4-1/2" Rectangular
409C568A29	RX-371	DC Ammeter - Shunt Rated	50 mV	0-400 DC Amperes	4-1/2" Rectangular
409C568A30	RX-371	DC Ammeter - Shunt Rated	50 mV	0-500 DC Amperes	4-1/2" Rectangular
409C568A62	RX-371	DC Ammeter - Shunt Rated	50 mV	0-600 DC Amperes	4-1/2" Rectangular
409C568A63	RX-371	DC Ammeter - Shunt Rated	50 mV	0-800 DC Amperes	4-1/2" Rectangular
409C568A48	NX-371	DC Ammeter - Shunt Rated	50 mV	0-15 DC Amperes	4-1/2" Round
409C568A49	NX-371	DC Ammeter - Shunt Rated	50 mV	0-20 DC Amperes	4-1/2" Round
409C568A50	NX-371	DC Ammeter - Shunt Rated	50 mV	0-30 DC Amperes	4-1/2" Round
409C568A51	NX-371	DC Ammeter - Shunt Rated	50 mV	0-50 DC Amperes	4-1/2" Round
409C568A52	NX-371	DC Ammeter - Shunt Rated	50 mV	0-80 DC Amperes	4-1/2" Round
409C568A53	NX-371	DC Ammeter - Shunt Rated	50 mV	0-100 DC Amperes	4-1/2" Round
409C568A54	NX-371	DC Ammeter - Shunt Rated	50 mV	0-150 DC Amperes	4-1/2" Round
409C568A55	NX-371	DC Ammeter - Shunt Rated	50 mV	0-200 DC Amperes	4-1/2" Round
.409C568A56	NX-371	DC Ammeter - Shunt Rated	50 mV	0-300 DC Amperes	4-1/2" Round
409C568A57	NX-371	DC Ammeter - Shunt Rated	50 mV	0-400 DC Amperes	4-1/2" Round
409C568A58	NX-371	DC Ammeter - Shunt Rated	50 mV	0-500 DC Amperes	4-1/2" Round
409C534A50	RX-351	DC Millivoltmeter - Shunt Rated	50 mV	Specify	3-1/2" Rectangular
409C615A08	NX-351	DC Millivoltmeter - Shunt Rated	100 mV	Specify	3-1/2" Round
409C534A55	RX-371	DC Millivoltmeter - Shunt Rated	50 mV	Specify	4-1/2" Rectangular
409C615A24	NX-371	DC Millivoltmeter - Shunt Rated	100 mV	Specify	4-1/2" Round
409C569A50	RX-351	DC Millivoltmeter - Shunt Rated	50 mV	Specify	3-1/2" Rectangular
409C622A08	NX-351	DC Millivoltmeter - Shunt Rated	100 mV	Specify	3-1/2" Round
409C569A63	RX-371	DC Millivoltmeter - Shunt Rated	50 mV	Specify	4-1/2" Rectangular
409C622A24	NX-371	DC Millivoltmeter - Shunt Rated	100 mV	Specify	4-1/2" Round
409C534A32	RX-351	DC Millivoltmeter	50 mV	0-50 DC Millivolts	3-1/2" Rectangular
409C534A33	RX-351	DC Millivoltmeter	100 mV	0-100 DC Millivolts	3-1/2" Rectangular
409C534A34	RX-351	DC Millivoltmeter	200 mV	0-200 DC Millivolts	3-1/2" Rectangular
409C534A35	RX-351	DC Millivoltmeter	500 mV	0-500 DC Millivolts	3-1/2" Rectangular
409C534A41	NX-351	DC Millivoltmeter	50 mV	0-50 DC Millivolts	3-1/2" Round
409C534A42	NX-351	DC Millivoltmeter	100 mV	0-100 DC Millivolts	3-1/2" Round
409C534A43	NX-351	DC Millivoltmeter	200 mV	0-200 DC Millivolts	3-1/2" Round
409C534A44	NX-351	DC Millivoltmeter	500 mV	0-500 DC Millivolts	3-1/2" Round
409C569A32	RX-371	DC Millivoltmeter	50 mV	0-50 DC Millivolts	4-1/2" Rectangular
409C569A33	RX-371	DC Millivoltmeter	100 mV	0-100 DC Millivolts	4-1/2" Rectangular
409C569A34	RX-371	DC Millivoltmeter	200 mV	0-200 DC Millivolts	4-1/2" Rectangular
409C569A35	RX-371	DC Millivoltmeter	500 mV	0-500 DC Millivolts	4-1/2" Rectangular
409C569A41	NX-371	DC Millivoltmeter	50 mV	0-50 DC Millivolts	4-1/2" Round
409C569A42	NX-371	DC Millivoltmeter	100 mV	0-100 DC Millivolts	4-1/2" Round
409C569A43	NX-371	DC Millivoltmeter	200 mV	0-200 DC Millivolts	4-1/2" Round
409C569A44	NX-371	DC Millivoltmeter	500 mV	0-500 DC Millivolts	4-1/2" Round
409C532A09	RX-351	DC Voltmeter	1 V	0-1 DC Volts	3-1/2" Rectangular
409C532A10	RX-351	DC Voltmeter	1.5 V	0-1.5 DC Volts	3-1/2" Rectangular
409C532A11	RX-351	DC Voltmeter	2 V	0-2 DC Volts	3-1/2" Rectangular
409C532A12	RX-351	DC Voltmeter	3 V	0-3 DC Volts	3-1/2" Rectangular
409C532A13	RX-351	DC Voltmeter	5 V	0-5 DC Volts	3-1/2" Rectangular
409C532A14	RX-351	DC Voltmeter	8 V	0-8 DC Volts	3-1/2" Rectangular
409C532A15	RX-351	DC Voltmeter	10 V	0-10 DC Volts	3-1/2" Rectangular
409C532A16	RX-351	DC Voltmeter	15 V	0-15 DC Volts	3-1/2" Rectangular
409C532A17	RX-351	DC Voltmeter	20 V	0-20 DC Volts	3-1/2" Rectangular
409C532A18	RX-351	DC Voltmeter	30 V	0-30 DC Volts	3-1/2" Rectangular
409C532A19	RX-351	DC Voltmeter	50 V	0-50 DC Volts	3-1/2" Rectangular
409C532A20	RX-351	DC Voltmeter	80 V	0-80 DC Volts	3-1/2" Rectangular
409C532A21	RX-351	DC Voltmeter	100 V	0-100 DC Volts	3-1/2" Rectangular
409C532A22	RX-351	DC Voltmeter	150 V	0-150 DC Volts	3-1/2" Rectangular
409C532A23	RX-351	DC Voltmeter	200 V	0-200 DC Volts	3-1/2" Rectangular
409C532A24	RX-351	DC Voltmeter	300 V	0-300 DC Volts	3-1/2" Rectangular
409C532A28	RX-351	DC Voltmeter	400 V	0-400 DC Volta	3-1/2" Rectangular
409C532A25	RX-351	DC Voltmeter	500 V	0-500 DC Volts	3-1/2" Rectangular
409C532A27	RX-351	DC Voltmeter	600 V	0-600 DC Volts	3-1/2" Rectangular
409C532A36	NX-351	DC Voltmeter	1 V	0-1 DC Volts	3-1/2" Round
409C532A37	NX-351	DC Voltmeter	1.5 V	0-1.5 DC Volts	3-1/2" Round
409C532A38	NX-351	DC Voltmeter	2 V	0-2 DC Volts	3-1/2" Round
409C532A39	NX-351	DC Voltmeter	3 V	0-3 DC Volts	3-1/2" Round
409C532A40	NX-351	DC Voltmeter	5 V	0-5 DC Volts	3-1/2" Round
409C532A41	NX-351	DC Voltmeter	8 V	0-8 DC Volts	3-1/2" Round
409C532A42	NX-351	DC Voltmeter	10 V	0-10 DC Volts	3-1/2" Round
409C532A43	NX-351	DC Voltmeter	15 V	0-15 DC Volts	3-1/2" Round
409C532A44	NX-351	DC Voltmeter	20 V	0-20 DC Volts	3-1/2" Round
409C532A45	NX-351	DC Voltmeter	30 V	0-30 DC Volts	3-1/2" Round
409C532A46	NX-351	DC Voltmeter	50 V	0-50 DC Volts	3-1/2" Round
409C532A47	NX-351	DC Voltmeter	80 V	0-80 DC Volts	3-1/2" Round
409C532A48	NX-351	DC Voltmeter	100 V	0-100 DC Volts	3-1/2" Round
409C532A49	NX-351	DC Voltmeter	150 V	0-150 DC Volts	3-1/2" Round
409C532A50	NX-351	DC Voltmeter	200 V	0-200 DC Volts	3-1/2" Round
409C532A51	NX-351	DC Voltmeter	300 V	0-300 DC Volts	3-1/2" Round
409C532A55	NX-351	DC Voltmeter	400 V	0-400 DC Volta	3-1/2" Round
409C532A52	NX-351	DC Voltmeter	500 V	0-500 DC Volts	3-1/2" Round
409C532A54	NX-351	DC Voltmeter	600 V	0-600 DC Volts	3-1/2" Round
409C570A09	RX-371	DC Voltmeter	1 V	0-1 DC Volts	4-1/2" Rectangular
409C570A10	RX-371	DC Voltmeter	1.5 V	0-1.5 DC Volts	4-1/2" Rectangular
409C570A11	RX-371	DC Voltmeter	2 V	0-2 DC Volts	4-1/2" Rectangular
409C570A12	RX-371	DC Voltmeter	3 V	0-3 DC Volts	4-1/2" Rectangular
409C570A13	RX-371	DC Voltmeter	5 V	0-5 DC Volts	4-1/2" Rectangular
409C570A14	RX-371	DC Voltmeter	8 V	0-8 DC Volts	4-1/2" Rectangular
409C570A15	RX-371	DC Voltmeter	10 V	0-10 DC Volts	4-1/2" Rectangular
409C570A16	RX-371	DC Voltmeter	15 V	0-15 DC Volts	4-1/2" Rectangular
409C570A17	RX-371	DC Voltmeter	20 V	0-20 DC Volts	4-1/2" Rectangular
409C570A18	RX-371	DC Voltmeter	30 V	0-30 DC Volts	4-1/2" Rectangular
409C570A19	RX-371	DC Voltmeter	50 V	0-50 DC Volts	4-1/2" Rectangular
409C570A20	RX-371	DC Voltmeter	80 V	0-80 DC Volts	4-1/2" Rectangular
409C570A21	RX-371	DC Voltmeter	100 V	0-100 DC Volts	4-1/2" Rectangular
409C570A22	RX-371	DC Voltmeter	150 V	0-150 DC Volts	4-1/2" Rectangular
409C570A23	RX-371	DC Voltmeter	200 V	0-200 DC Volts	4-1/2" Rectangular
409C570A24	RX-371	DC Voltmeter	300 V	0-300 DC Volts	4-1/2" Rectangular
409C570A25	RX-371	DC Voltmeter	500 V	0-500 DC Volts	4-1/2" Rectangular
409C570A26	RX-371	DC Voltmeter	600 V	0-600 DC Volts	4-1/2" Rectangular
409C570A36	NX-371	DC Voltmeter	1 V	0-1 DC Volts	4-1/2" Round
409C570A37	NX-371	DC Voltmeter	1.5 V	0-1.5 DC Volts	4-1/2" Round
409C570A38	NX-371	DC Voltmeter	2 V	0-2 DC Volts	4-1/2" Round
409C570A39	NX-371	DC Voltmeter	3 V	0-3 DC Volts	4-1/2" Round
409C570A40	NX-371	DC Voltmeter	5 V	0-5 DC Volts	4-1/2" Round
409C570A41	NX-371	DC Voltmeter	8 V	0-8 DC Volts	4-1/2" Round
409C570A42	NX-371	DC Voltmeter	10 V	0-10 DC Volts	4-1/2" Round
409C570A43	NX-371	DC Voltmeter	15 V	0-15 DC Volts	4-1/2" Round
409C570A44	NX-371	DC Voltmeter	20 V	0-20 DC Volts	4-1/2" Round
409C570A45	NX-371	DC Voltmeter	30 V	0-30 DC Volts	4-1/2" Round
409C570A46	NX-371	DC Voltmeter	50 V	0-50 DC Volts	4-1/2" Round
409C570A47	NX-371	DC Voltmeter	80 V	0-80 DC Volts	4-1/2" Round
409C570A48	NX-371	DC Voltmeter	100 V	0-100 DC Volts	4-1/2" Round
409C570A49	NX-371	DC Voltmeter	150 V	0-150 DC Volts	4-1/2" Round
409C570A50	NX-371	DC Voltmeter	200 V	0-200 DC Volts	4-1/2" Round
409C570A51	NX-371	DC Voltmeter	300 V	0-300 DC Volts	4-1/2" Round
409C570A52	NX-371	DC Voltmeter	500 V	0-500 DC Volts	4-1/2" Round

Sorry, no products were found fitting that criteria. Please widen your search or

Shop by Category

Weschler Conventional Analog Panel Meters – DC Voltage & Current

Description

Related products
