UM33A Controller – Yokogawa

Description

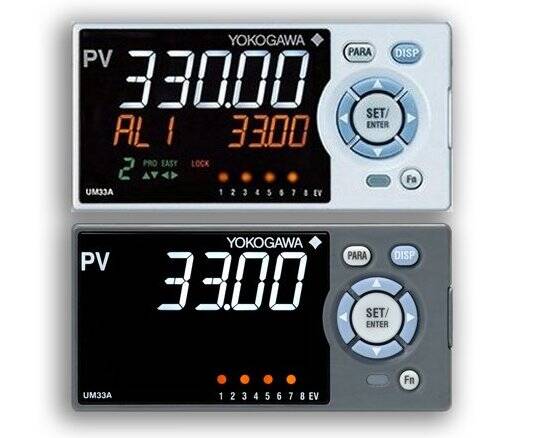

The Yokogawa UM33A digital indicator with alarms is a 1/8 DIN indicator designed to monitor and display processes such as temperature, pressure, flow rate, and other types of data while providing an alarm when an input signal reaches a preset value.

The Yokogawa UM33A digital indicator has eight alarm outputs and eight screen display points, twice the number of comparable models. A dedicated program eases the task of entering alarm values and other information, eliminating the need to input them using the keys on the front panel of each device. Measurements are shown on the large, easy to ready, 14 segment color LCD. The UM33A includes a scrolling text feature for parameters, user-friendly navigation, programmable function keys, user settable default values, and RS-485 (Modbus/RTU, peer to peer, coordinated, PC-Link) communications.

Main Features

  • 1/8 DIN model
  • Up to 9 alarm outputs (including one Fail)
  • Input correction function (PV bias, polygonalline approximation, polygonal line bias)
  • 24 VDC sensor power supply available
  • Simple operation

Optional suffix codes

/LP 24 V DC loop power supply

/DC Power supply 24 V AC/DC

/CT Coating



Catalog-Page-5b            YEW-Advanced Controllers

This product is currently out of stock and unavailable.

SKU: N/A Categories: , ,
Show Advanced Filters

products found
Item # Controls Function Case Color
UM33A-030-11Standard Type6 additional DO'sDark Gray
UM33A-010-11Standard Type1 additional DO & RS-485 commDark Gray
UM33A-020-11Standard Type1 additional DODark Gray
UM33A-000-11Standard TypeNoneDark Gray
UM33A-030-10Standard Type6 additional DO'sLight Gray
UM33A-020-10Standard Type1 additional DOLight Gray
UM33A-010-10Standard Type1 additional DO & RS-485 commLight Gray
UM33A-000-10Standard TypeNoneLight Gray
