Tyco Crompton Protector Trip Relays

Description

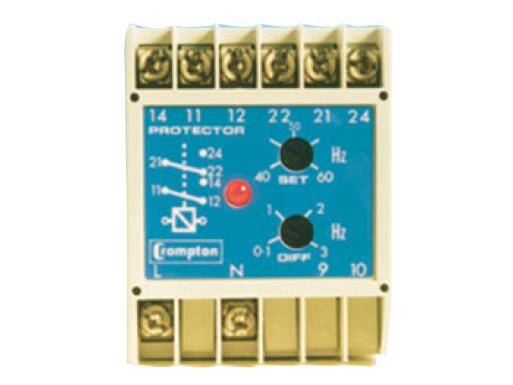

The Crompton Protectors provide continuous surveillance of the monitored circuit. When the current moves outside the set point limit, the relay operates. A red LED indicates when the relay is energized. For 3 phase systems, the sequence of connection is not important.

Standard overcurrent relays will energize on trip when the nominal input current plus the user adjustable “over nominal value” is exceeded, after the preset additional delay period if set. The relay will automatically reset to de-energize when the input current is lowered past the setpoint minus the hysteresis (differential) value.

Standard undercurrent relays will de-energize on trip when the input current is below the nominal value minus the user adjustable “under nominal value” after the preset additional delay period if set. The relay will automatically reset to energize when the input current is raised past the setpoint plus the hysteresis value.

  • Phase Loss, Reversal or Sequence
  • Under and Over Current or Voltage Protection
  • Load Detection
  • Monitoring of Systems



On request, any product can be manufactured with the energize/de-energize functions reversed.

UL & CSA approved.

Catalog-Page-131             Protector_Trip_Relays-DS

Clear
SKU: N/A Categories: ,
Show Advanced Filters

products found
Item # Type System Input Protection Auxiliary Power
253-PH3U-BGBX-FS-V2Speed Sensing5V to 75V peak to peak3 Trip Points12VDC
253-PH3U-BGBX-FS-V4Speed Sensing5V to 75V peak to peak3 Trip Points24VDC
252-PAUU-LSBX-C6-DG-D1-EBAC CurrentSingle Phase5AUnder current 40-120%120V
252-PAOU-LSBX-C6-DG-D1-EAAC CurrentSingle Phase5AOver current 40-120%120V
253-PADU-LSBX-C6-DG-D1-ECAC CurrentSingle Phase5AUnder & over current120V
253-PAVU-LSBX-C6-DG-D1-EBAC Current3 Phase 3 or 4 Wire5AUnder current120V
253-PAPU-LSBX-C6-DG-D1-EAAC Current3 Phase 3 or 4 Wire5AOver current120V
252-PVUU-PQBX-C6-EBAC VoltageSingle Phase L-N5AUnder Voltage 75-100%120V
252-PVOU-PQBX-C6-EAAC VoltageSingle Phase L-N5AOver Voltage 100-125%120V
253-PVBU-PQBX-C6-ECAC VoltageSingle Phase L-N5AOver and Under Voltage120V
252-PVKU-PQBX-C6-EBAC Voltage3 Phase, 3 Wire L-L5AUnder Voltage 75-100%120V
252-PVAU-PQBX-C6-EAAC Voltage3 Phase, 3 Wire L-L5AOver Voltage 100-12%120V
253-PVMU-PQBX-C6-ECAC Voltage3 Phase, 3 Wire L-L5AOver and Under Voltage120V
252-PVVU-PQBX-C6-EBAC Voltage3 Phase, 4 Wire L-N5AUnder Voltage 75-100%120V
252-PVPU-PQBX-C6-EAAC Voltage3 Phase, 4 Wire L-N5AOver Voltage 100-12%120V
253-PVEU-PQBX-C6-ECAC Voltage3 Phase, 4 Wire L-N5AOver and Under Voltage120V
252-PVZU-PQBX-C6-EB-T1AC VoltageSingle Phase L-N5AUnder Voltage 75-100%120V
252-PVHU-PQBX-C6-EA-T1AC VoltageSingle Phase L-N5AOver Voltage 100-12%120V
252-PVJU-PQBX-C6-EB-T1AC Voltage3 Phase, 3 Wire L-L5AUnder Voltage 75-100%120V
252-PVCU-PQBX-C6-EA-T1AC Voltage3 Phase, 3 Wire L-L5AOver Voltage 100-12%120V
252-PVXU-PQBX-C6-EB-T1AC Voltage3 Phase, 4 Wire L-N5AUnder Voltage 75-100%120V
252-PVSU-PQBX-C6-EA-T1AC Voltage3 Phase, 4 Wire L-N5AOver Voltage 100-12%120V
252-PHUU-PQBX-C6-EBFrequencySingle Phase120 VACUnder Frequency 55-65 Hz120V
252-PHOU-PQBX-C6-EAFrequencySingle Phase120 VACOver Frequency 55-65 Hz120V
253-PHDU-PQBX-C6-ECFrequencySingle Phase120 VACUnder & Over (2 output relays)120V
252-PDUU-NABX-T1-EBDC Voltage RelayDC Relay18-20VUnder Voltage External Time Delay120V
252-PDEU-NABX-EBDC Voltage RelayDC Relay18-20VUnder Voltage Differential 1-15%120V
252-PTOU-TBX-DB-T1-EADC Millivolts/ThermocoupleThermocoupleJ,K,T,S,THigh Trip120V
252-PTUU-TBX-DB-T1-EBDC Millivolts/ThermocoupleThermocoupleJ,K,T,S,TLow Trip120V
256-PHUV-PQBX-C6Combined Under/Over Voltage and Under/Over FrequencySingle Phase120V / 60 HzOver & Under Voltage
Over & Under Frequency (50-70 Hz)
(4 Independent Double Pole change over relays)
120V
252-PVRU-PQBX-C6Phase Sequence & Phase Failure3 Phase 3 or 4 Wire120V L-L 60 HzPhase Sequence, Under Voltage120V
252-PSFU-PQBX-C6Phase Balance3 Phase 3 or 4 Wire120V L-L 60 HzPhase Loss & Unbalance120V
252-PSFU-SEBX-C6Phase Balance3 Phase 3 or 4 Wire480V L-L 60 HzPhase Loss & Unbalance120V
252-PSGU-PQBX-C6-T1-1APhase Balance3 Phase 3 or 4 Wire120V L-L 60 HzPhase Loss, Unbalance, Under Voltage120V
252-PSGU-SEBX-C6-T1-1APhase Balance3 Phase 3 or 4 Wire480V L-L 60 HzPhase Loss, Unbalance, Under Voltage120V
256-PASU-LSBX-PQ-C6-EAReverse Power1 ph or 3 ph, 4w5A, 120V, 60 HzReverse Power 2-20%120V
256-PATU-LSBX-PQ-C6-EAReverse Power3 Phase, 3 Wire5A, 120V, 60 HzReverse Power 2-20%120V
256-PAQU-LSBX-PQ-C6-EAReverse Power1 ph or 3 ph, 4w, Push5A, 120V, 60 HzReverse Power 2-20%120V
256-PARU-LSBX-PQ-C6-EAReverse Power3 ph 3w Push5A, 120V, 60 HzReverse Power 2-20%120V
256-PLLU-PQBX-C6Synchro-Check (Paralleling)1ph or 3ph, 3w or 4w120V/60 HzPhase Angle & Voltage120V
256-PLDU-PQBX-C6Synchro-Check (Paralleling)1ph or 3ph, 3w or 4w120V/60 HzPhase Angle & Voltage120V
253-PDCU-BDBX-T1-EC-BDDC Voltage RelayDC Relay24VOver & Under Voltage (2 relays)120V
252-PBTU-ECBX-DG-T1-EADC Millivolts/ThermocoupleDC Millivolt50 mVHigh Trip120V
252-PBSU-ECBX-DG-T1-EADC Millivolts/ThermocoupleDC Millivolt50 mVLow Trip120V
252-PBTU-GBBX-DG-T1-EADC Millivolts/ThermocoupleDC Millivolt100 mVHigh Trip120V
252-PBSU-GBBX-DG-T1-EADC Millivolts/ThermocoupleDC Millivolt100 mVLow Trip120V
252-PBAU-FABX-DG-T1-EBDC Transducer TripTransducer1 mADCLow Trip 0-80%120V
252-PBBU-FABX-DG-T1-EADC Transducer TripTransducer1 mADCHip Trip 40-120%120V
253-PBVU-FABX-DG-T1-ECDC Transducer TripTransducer1 mADCLow/High, 2 relays120V
252-PBAU-HGBX-DG-T1-EBDC Transducer TripTransducer4-20 mADCLow Trip 0-80%120V
252-PBBU-HGBX-DG-T1-EADC Transducer TripTransducer4-20 mADCHip Trip 40-120%120V
253-PBVU-HGBX-DG-T1-ECDC Transducer TripTransducer4-20 mADCLow/High, 2 relays120V
252-PBAU-MTBX-DG-T1-EBDC Transducer TripTransducer10 VDCLow Trip 0-80%120V
252-PBBU-MTBX-DG-T1-EADC Transducer TripTransducer10 VDCHip Trip 40-120%120V
253-PBVU-MTBX-DG-T1-ECDC Transducer TripTransducer10 VDCLow/High, 2 relays120V
