Tyco Crompton Meter Relays

Description

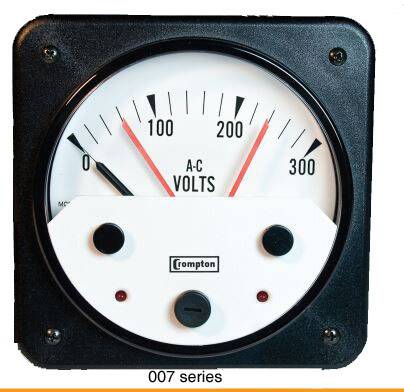

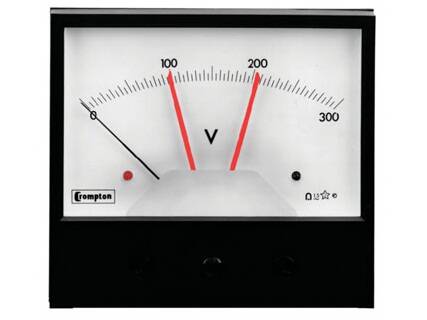

Series 239 and 007 meter relays combine a highly accurate indicator with High and Low set point relays. The relays can operate alarm and control devices when the monitored signal value moves outside the chosen set point limits shown by adjustable red index pointers. A single compact case houses the unit which requires only the input signal and power supply thus saving space and installation time.

  • Monitors and Controls Any Variable Which Can be Converted
  • Into an AC or DC Signal
  • Rugged Shock and Vibration Resistant Design
  • Indicator, Relays and Power Unit in One Housing
  • Control Function Continues if the Indicator Becomes Damaged
  • Stable Electronic Switching Circuit Does Not Use Lamps, Photocells, Inductors or Capacitors
  • Taut Band, Fluid Damped Indicator
  • Isolated Input Signal
  • LED Relay State Indicators

Catalog Page 77-78            239 Series-DS           007-Series-DS

This product is currently out of stock and unavailable.

Show Advanced Filters

products found
Item # Type Output Relays Setpoints Relays Operating Time
239-302AHigh/Low Control22DPDT contact on each setpoint250 ms to 20 sec adjustable
239-300AHigh/Low Control12DPDT contact on each setpoint250 ms to 20 sec adjustable
239-30RAfor RTD Applications22DPDT contact on each setpoint250 ms to 20 sec adjustable
239-305Aboth Relays Downscale Energized22DPDT contact on each setpoint250 ms to 20 sec adjustable
007-302AMid band de-energized, outside band energized22SPDT contact on each setpoint250 ms to 10 sec adjustable
007-301AUpscale energized, downscale de-energized11SPDT contact on each setpoint250 ms to 10 sec adjustable
007-300AUpscale de-energized, downscale energized12SPDT contact on each setpoint250 ms to 10 sec adjustable
007-30TAMidband de-energized, outside band energized - operates from thermocouple input22SPDT contact on each setpoint250 ms to 10 sec adjustable
007-30RAMidband de-energized, outside band energized - operates from 2, 3 or 4 wire RTD22SPDT contact on each setpoint250 ms to 10 sec adjustable
007-304AHigh and low midband energized, outside band de-energized - no time delay22SPDT contact on each setpoint250 ms to 10 sec adjustable
007-307AUpscale de-energized, down scale energized11SPDT contact on each setpoint250 ms to 10 sec adjustable
239-301AHigh Control Only11DPDT contact on each setpoint250 ms to 20 sec adjustable
007-305ABoth upscale de-energized, downscale energized22SPDT contact on each setpoint250 ms to 10 sec adjustable
239-304AHigh Relay Downscale Energized, Low Relay Upscale Energized22DPDT contact on each setpoint250 ms to 20 sec adjustable
239-30TAHigh/Low Control, Thermocouple Applications Fitted with Cold Junction Compensation Circuitry22DPDT contact on each setpoint250 ms to 20 sec adjustable
239-307ALow Control Only11DPDT contact on each setpoint250 ms to 20 sec adjustable
007-303ABoth upscale energized, downscale de-energized22SPDT contact on each setpoint250 ms to 10 sec adjustable
