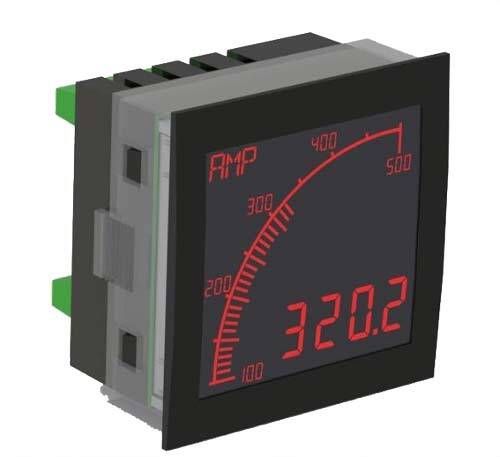

Trumeter Process Meter – APM-PROC Series

Description

This APM utilizes user-configurable, non-linearization techniques to customize performance. This allows non-linear sensors such as thermocouples and pressure transducers to be used to their maximum potential. Up to 20 points can be entered in a non-linear conversion table.

It has been designed to work in conjunction with flow sensors or pressure transducers to display, for example, rate of flow or tank levels. It offers precise control and measurement with readings accurate to 0.1% or better. The digital and analog outputs allow for the process meter to be integrated with other systems in the process. By using its user-programmable input the process meter can measure -10V to +10V; 0-10V; 4-20mA; 0-20mA or 10-50mA.

The APM-PROC has 15 configurations pre-installed for use straight out of the box. Alternatively, it can be user-programmed to display critical parameters exactly as needed. The process meter helps increase productivity and improve safety.  Users can customize the annunciators, scale, set points and alarms all through the APM configuration software.

Trumeter Process Meters

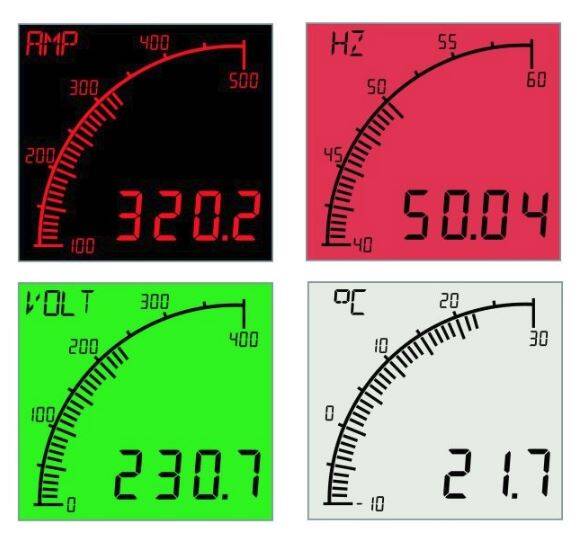

Dynamic backlighting, in conjunction with customizable set points, display when critical parameters have been met. Operators are visually alerted when a parameter is out of range (or is approaching it) by the panel meter’s screen flashing and/or changing color or intensity.

Trumeter Process Meter

Feature-packed and precisely designed and engineered, the APM is the ideal modern digital process panel meter. The APM’s unique design combines the instant recognition of traditional analogue panel meters with the precision of modern digital process panel meters. The LCD screen has a wide viewing angle and is backlit for enhanced visibility in almost any environmental conditions and available in either positive or negative LCD display.

  • User selectable V/mA input
  • Accuracy 0.1% or better
  • 20 point linearization table
  • Large 4 digit main display
  • Alphanumeric display for units, alarm or custom message
  • 40 segment curved bargraph
  • Dynamic backlight color
  • Digital & analog outputs
  • USB setup software
Trumeter Process Meters Specs

Catalog Page 034b         APM-PROC-DS             APM-PROC-Manual

This product is currently out of stock and unavailable.


products found
Item # Description
TM/022128-01USB Cable
APM-PROC-APOAPM Process Meter, Positive LCD with Outputs
APM-PROC-ANOAPM Process Meter, Negative LCD with Outputs
Sorry, no products were found fitting that criteria. Please widen your search or reset item filters now
