Tri-Color Edgewise Bargraph Meters – Weschler

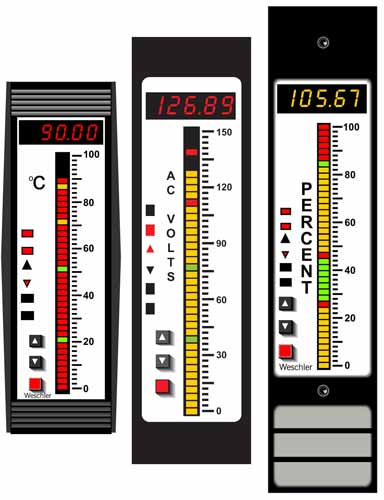

The Weschler Instruments TriColor Bargraphs include the BG252TC, BH252TC, BV5ATC & BD101TC.  These meters provide the quickest way to spot problems in process control panels with bright changing colors. Quick identification of trouble conditions can help prevent equipment damage or production loss, thus reducing down time and maintenance costs, and improving operational safety. Each 40 segment LED (Light Emitting Diode) of the BG TC family has the ability to illuminate as Red (Danger), Yellow (Caution), or Green (Safe) condition. The bar color identification can be easily changed by the user, from the front pushbuttons or through a tamper safe mode. The fully programmable Weschler BG TC BarGraph™ fits the widest range of inputs and retrofits most edgewise switchboard and panel meters. Weschler’s instruments satisfy the high quality standards set forth by the utility, OEM, and process control industries.


  • Large, high resolution 40 segment LED bar array
  • 5 digit display with resolution to 0.01%
  • Form-C relay outputs
  • Peak and Valley hold
  • Trend indication for signal direction
  • RS-232 or RS-485 Communication
  • Analog retransmit

Versatile selection of inputs:

  • DC – Up to 5A & 250V
  • AC – Up to 5A & 250V
  • Thermocouple – J, K, T
  • RTD – 10ohm Cu or 100ohm Pt
  • Serial – ASCII
  • Frequency – Line or mag pickup
  • Process Control – V, mA

Field programmable functions:

  • Zero and full scale point location
  • Setpoint type (Hi or Low)
  • Hysteresis & latching
  • Setpoint time delay
  • 16 step dimming
  • Digital display for engineering units
  • Enable/disable front buttons
  • I.D. selection for communication
  • Bar form, Peak / Valley enable
    Color zones
  • Over-range/Under-range flashing
  • Lamp test

Retrofit sizes for:

  • GE/Yokogawa 180
  • Bailey draft gauges
  • Crompton 128
  • Dixson SA/BB 101 (all models), Dixson BJ101, K051
  • Hays Republic 216, 3600/V5A
  • Foxboro 65PP
  • Sigma/International Instruments 1151

Use the configuration tool to select model and options for the BG-252TC, BH-252TC, BV-5ATC & BD-101TC.
