Tri-Color Bargraph Gate Position Indicator – Weschler

Description

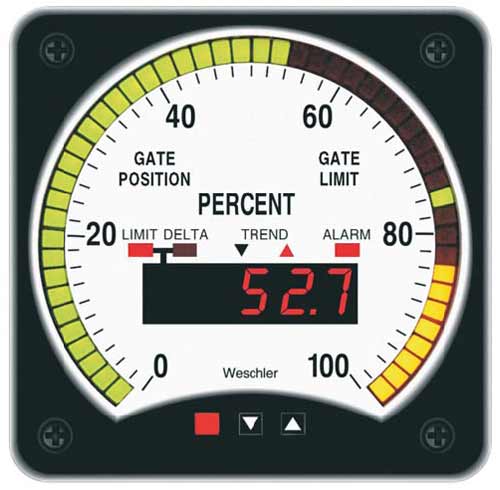

The Weschler TriColor BarGraph Gate Position Indicator (GPI) provides a rapid visual display of gate position and gate limit. The GPI also gives a precise digital readout of either signal or their
difference. Bar colors for position and limit are user selectable (red, green or yellow). Overlap defaults to the third color. Two relay outputs are available. One is tied to the gate limit value. The
second is user adjustable and indicated by front panel annunciators. Optional trend LEDs show the direction of gate movement.

A rugged switchboard metal case is standard on the Weschler GPI. An optional splash-proof bezel provides additional environmental protection. Analog retransmit of the gate position is available for connection to SCADA systems. Units can be ordered with custom dial scales and legends.

Features:

  • Simultaneous Position & Limit Display
  • Bright 50 Segment TriColor Bar
  • Volt or mA Inputs
  • Optional Alarm Relay Outputs
  • Rugged Metal Case

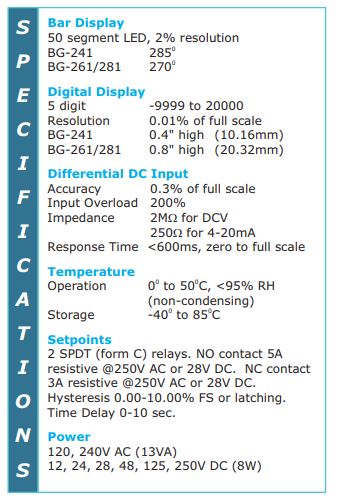

BarGraph Gate Position Indicator Specs BarGraph Gate Position Indicator

Gate_Position_data2019a



Configure Product

Reset Form
View Result
Type
Tri-Color Bargraph Gate Position Indicator
Circular Bargraph Meter
Circular Bargraph Meter
Bar Zero Display
Digital Display
Setpoint Relays
Setpoint Hysteresis
Input
Both channels.
Power
Retransmit
Trend Indicators
Options
Bar Color
Product #:
