TC10 Temperature Controller – Yokogawa

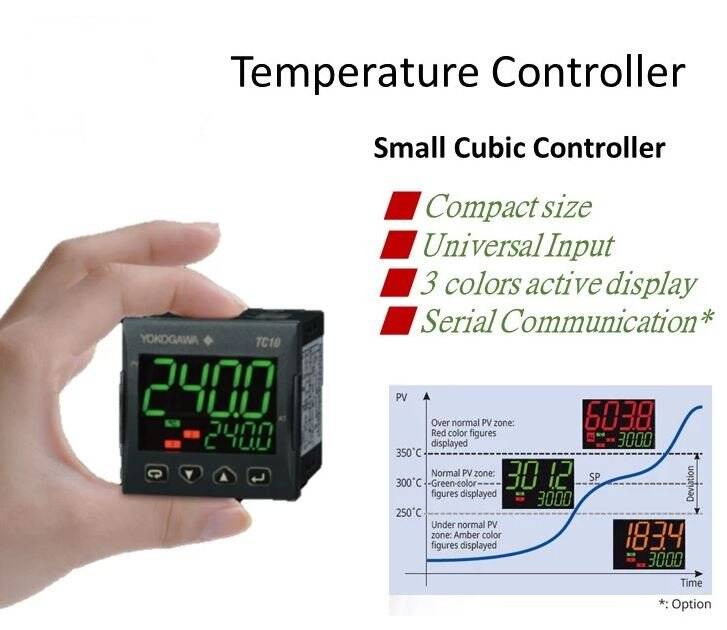

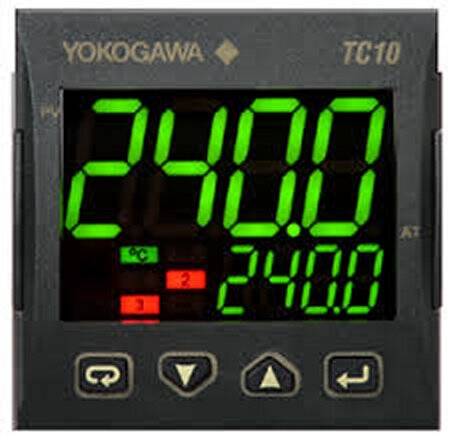

The Yokogawa TC10 is an all-in-one, single loop temperature controller with an easy-to-read, 3-color LED display. The shallow depth of the controller helps to save instrument panel space. The TC10 supports easy configuration for quick start-up, and its PID allows for overshoot and undershoot control, so the end user can maintain a direct and constant temperature or accurate flow. TC10’s compact design allows for a broad range of applications/uses while maintaining a high level of accuracy.


  • Compact size: 48 x 48 mm (1/16 DIN), depth of 48 mm + 14 mm (terminals)
  • 3 Dynamic Colors Led Display
  • Universal input: (TC, mV, V, mA, Pt100-Pt1000)
  • 4 Set Points and alarm functions
  • Serial communication: RS-485 Modbus
  • PID control, ON/OFF, Auto-tuning
  • IP65 front panel (when the optional panel gasket is mounted)(optional)


Configure Product

Reset Form
View Result
Temperature Limit Controller
Universal Input, one logic input and one selectable I/O
Power Supply
Control Output
Alarm 1 / Cooling Output
Alarm 2
Panel Gasket for IP65
Product #:
