Short Depth DC Voltmeters – NLS

Description

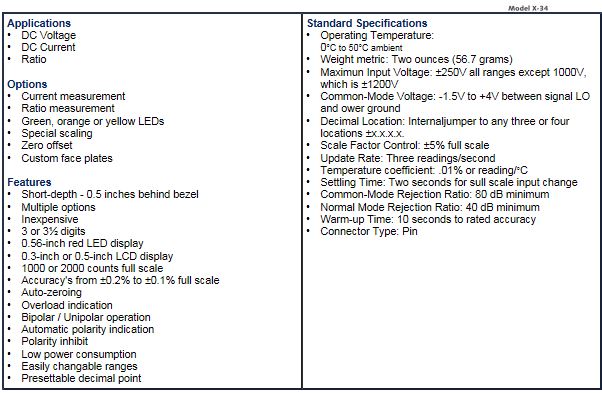

The NLS X Series are low cost, short-depth digital panel meters extending only one-half inch behind the bezel, making them ideal for OEM equipment. These meters have LED or LCD displays and are available in 100mV, 200mV, 1V, 2V, 10V, 20V, 100V, 200V, or 1000V ranges (depending on the model). All X meters have proven popular in end-user applications where low cost and high quality are requirements.

  • Only 1/2″ behind panel
  • 0.56″ LED or 0.6″ LCD
  • 0.1% or 0.2% Accuracy
  • Presettable Decimal Point

Power: 5VDC ±5%, 200mA (6mA for X37)
Temperature: 0-50°C operating
Case Size: 4″W x 1.9″H x 1.1″D

Catalog Page 035                                  NLS-X34-Datasheet
