Description

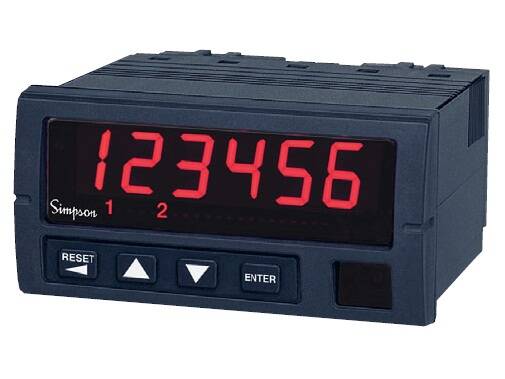

These four Simpson Counters (S660, S661, S662, S663) can take a variety of input types. The counter family has been designed to handle a broad range of your roughest industrial applications with the NEMA 4X rated front cover. They are programmed from the front panel by using large buttons that have tactile feedback to help prevent keystroke errors.
- NEMA-4X Front Panel
- Uses Words, Not Symbols for Easier Programming
- Bright Red LEDs for Easy Viewing
- Large, Tactile Buttons Can Be Pressed with Gloves On
- Standard 1/8 DIN Cutout
- Up to Two 5 Amp Relays Optional
- Optional Excitation Output 12 VDC
- Screw Terminals for Easy Installation
- CE & C-UL Approved, UL Listed
Show Advanced Filters
products found
| Item # | Basic Unit | Power Supply | Input Type | Output | Excitation Output |
|---|---|---|---|---|---|
| S661-1-1-1-0-0 | Preset Rate Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S661-1-2-1-0-0 | Preset Rate Counter | 120 VAC | Quadrature | 1 Mechanical Relay | None |
| S661-1-2-1-1-0 | Preset Rate Counter | 120 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S661-2-1-1-0-0 | Preset Rate Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S661-2-1-1-1-0 | Preset Rate Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S661-2-2-1-0-0 | Preset Rate Counter | 240 VAC | Quadrature | 1 Mechanical Relay | None |
| S661-2-2-1-1-0 | Preset Rate Counter | 240 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S660-1-1-1-0-0 | Preset Up/Down Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S660-1-2-1-0-0 | Preset Up/Down Counter | 120 VAC | Quadrature | 1 Mechanical Relay | None |
| S660-1-1-1-1-0 | Preset Up/Down Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S660-2-1-1-0-0 | Preset Up/Down Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S660-2-1-1-1-0 | Preset Up/Down Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S660-2-2-1-0-0 | Preset Up/Down Counter | 240 VAC | Quadrature | 1 Mechanical Relay | None |
| S660-2-2-1-1-0 | Preset Up/Down Counter | 240 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S660-1-2-1-1-0 | Preset Up/Down Counter | 120 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S663-1-1-1-0-0 | Preset Totalizing/Rate Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S663-1-1-1-1-0 | Preset Totalizing/Rate Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S663-1-2-1-0-0 | Preset Totalizing/Rate Counter | 120 VAC | Quadrature | 1 Mechanical Relay | None |
| S663-1-2-1-1-0 | Preset Totalizing/Rate Counter | 120 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S663-2-1-1-0-0 | Preset Totalizing/Rate Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S663-2-1-1-1-0 | Preset Totalizing/Rate Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S661-1-1-1-1-0 | Preset Rate Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S663-2-2-1-1-0 | Preset Totalizing/Rate Counter | 240 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S663-2-2-1-0-0 | Preset Totalizing/Rate Counter | 240 VAC | Quadrature | 1 Mechanical Relay | None |
| S662-1-1-1-0-0 | Preset Totalizing/Batch Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S662-1-2-1-0-0 | Preset Totalizing/Batch Counter | 120 VAC | Quadrature | 1 Mechanical Relay | None |
| S662-1-2-1-1-0 | Preset Totalizing/Batch Counter | 120 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S662-2-2-1-0-0 | Preset Totalizing/Batch Counter | 240 VAC | Quadrature | 1 Mechanical Relay | None |
| S662-2-1-1-0-0 | Preset Totalizing/Batch Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | None |
| S662-2-1-1-1-0 | Preset Totalizing/Batch Counter | 240 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S661-1-1-2-0-0 | Preset Rate Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S662-2-2-1-1-0 | Preset Totalizing/Batch Counter | 240 VAC | Quadrature | 1 Mechanical Relay | 12 VDC |
| S662-1-1-1-1-0 | Preset Totalizing/Batch Counter | 120 VAC | Standard Pulse Input | 1 Mechanical Relay | 12 VDC |
| S661-1-2-2-0-0 | Preset Rate Counter | 120 VAC | Quadrature | 2 Mechanical Relays | None |
| S660-2-2-2-1-0 | Preset Up/Down Counter | 240 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S660-2-2-2-0-0 | Preset Up/Down Counter | 240 VAC | Quadrature | 2 Mechanical Relays | None |
| S661-2-1-2-0-0 | Preset Rate Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S661-2-1-2-1-0 | Preset Rate Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S661-1-2-2-1-0 | Preset Rate Counter | 120 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S661-2-2-2-1-0 | Preset Rate Counter | 240 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S661-2-2-2-0-0 | Preset Rate Counter | 240 VAC | Quadrature | 2 Mechanical Relays | None |
| S660-1-2-2-1-0 | Preset Up/Down Counter | 120 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S660-1-1-2-1-0 | Preset Up/Down Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S660-1-1-2-0-0 | Preset Up/Down Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S660-1-2-2-0-0 | Preset Up/Down Counter | 120 VAC | Quadrature | 2 Mechanical Relays | None |
| S661-1-1-2-1-0 | Preset Rate Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S660-2-1-2-0-0 | Preset Up/Down Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S660-2-1-2-1-0 | Preset Up/Down Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S663-1-1-2-0-0 | Preset Totalizing/Rate Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S663-1-2-2-0-0 | Preset Totalizing/Rate Counter | 120 VAC | Quadrature | 2 Mechanical Relays | None |
| S663-1-1-2-1-0 | Preset Totalizing/Rate Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S663-2-1-2-0-0 | Preset Totalizing/Rate Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S663-2-1-2-1-0 | Preset Totalizing/Rate Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S663-1-2-2-1-0 | Preset Totalizing/Rate Counter | 120 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S663-2-2-2-0-0 | Preset Totalizing/Rate Counter | 240 VAC | Quadrature | 2 Mechanical Relays | None |
| S663-2-2-2-1-0 | Preset Totalizing/Rate Counter | 240 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S662-1-1-2-1-0 | Preset Totalizing/Batch Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S662-1-1-2-0-0 | Preset Totalizing/Batch Counter | 120 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S662-2-2-2-1-0 | Preset Totalizing/Batch Counter | 240 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S662-1-2-2-0-0 | Preset Totalizing/Batch Counter | 120 VAC | Quadrature | 2 Mechanical Relays | None |
| S662-1-2-2-1-0 | Preset Totalizing/Batch Counter | 120 VAC | Quadrature | 2 Mechanical Relays | 12 VDC |
| S662-2-1-2-0-0 | Preset Totalizing/Batch Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | None |
| S662-2-1-2-1-0 | Preset Totalizing/Batch Counter | 240 VAC | Standard Pulse Input | 2 Mechanical Relays | 12 VDC |
| S662-2-2-2-0-0 | Preset Totalizing/Batch Counter | 240 VAC | Quadrature | 2 Mechanical Relays | None |
| S661-2-1-0-1-0 | Preset Rate Counter | 240 VAC | Standard Pulse Input | None | 12 VDC |
| S662-1-1-0-0-0 | Preset Totalizing/Batch Counter | 120 VAC | Standard Pulse Input | None | None |
| S661-1-1-0-1-0 | Preset Rate Counter | 120 VAC | Standard Pulse Input | None | 12 VDC |
| S661-1-2-0-0-0 | Preset Rate Counter | 120 VAC | Quadrature | None | None |
| S661-1-2-0-1-0 | Preset Rate Counter | 120 VAC | Quadrature | None | 12 VDC |
| S661-2-1-0-0-0 | Preset Rate Counter | 240 VAC | Standard Pulse Input | None | None |
| S661-2-2-0-0-0 | Preset Rate Counter | 240 VAC | Quadrature | None | None |
| S661-2-2-0-1-0 | Preset Rate Counter | 240 VAC | Quadrature | None | 12 VDC |
| S660-1-1-0-0-0 | Preset Up/Down Counter | 120 VAC | Standard Pulse Input | None | None |
| S660-1-2-0-0-0 | Preset Up/Down Counter | 120 VAC | Quadrature | None | None |
| S660-1-1-0-1-0 | Preset Up/Down Counter | 120 VAC | Standard Pulse Input | None | 12 VDC |
| S661-1-1-0-0-0 | Preset Rate Counter | 120 VAC | Standard Pulse Input | None | None |
| S660-1-2-0-1-0 | Preset Up/Down Counter | 120 VAC | Quadrature | None | 12 VDC |
| S660-2-1-0-0-0 | Preset Up/Down Counter | 240 VAC | Standard Pulse Input | None | None |
| S660-2-1-0-1-0 | Preset Up/Down Counter | 240 VAC | Standard Pulse Input | None | 12 VDC |
| S660-2-2-0-0-0 | Preset Up/Down Counter | 240 VAC | Quadrature | None | None |
| S660-2-2-0-1-0 | Preset Up/Down Counter | 240 VAC | Quadrature | None | 12 VDC |
| S663-2-1-0-1-0 | Preset Totalizing/Rate Counter | 240 VAC | Standard Pulse Input | None | 12 VDC |
| S663-1-2-0-0-0 | Preset Totalizing/Rate Counter | 120 VAC | Quadrature | None | None |
| S663-1-1-0-1-0 | Preset Totalizing/Rate Counter | 120 VAC | Standard Pulse Input | None | 12 VDC |
| S663-1-2-0-1-0 | Preset Totalizing/Rate Counter | 120 VAC | Quadrature | None | 12 VDC |
| S663-1-1-0-0-0 | Preset Totalizing/Rate Counter | 120 VAC | Standard Pulse Input | None | None |
| S663-2-1-0-0-0 | Preset Totalizing/Rate Counter | 240 VAC | Standard Pulse Input | None | None |
| S663-2-2-0-0-0 | Preset Totalizing/Rate Counter | 240 VAC | Quadrature | None | None |
| S662-1-1-0-1-0 | Preset Totalizing/Batch Counter | 120 VAC | Standard Pulse Input | None | 12 VDC |
| S662-1-2-0-0-0 | Preset Totalizing/Batch Counter | 120 VAC | Quadrature | None | None |
| S662-1-2-0-1-0 | Preset Totalizing/Batch Counter | 120 VAC | Quadrature | None | 12 VDC |
| S663-2-2-0-1-0 | Preset Totalizing/Rate Counter | 240 VAC | Quadrature | None | 12 VDC |
| S662-2-1-0-0-0 | Preset Totalizing/Batch Counter | 240 VAC | Standard Pulse Input | None | None |
| S662-2-2-0-0-0 | Preset Totalizing/Batch Counter | 240 VAC | Quadrature | None | None |
| S662-2-2-0-1-0 | Preset Totalizing/Batch Counter | 240 VAC | Quadrature | None | 12 VDC |
| S662-2-1-0-1-0 | Preset Totalizing/Batch Counter | 240 VAC | Standard Pulse Input | None | 12 VDC |
