Description

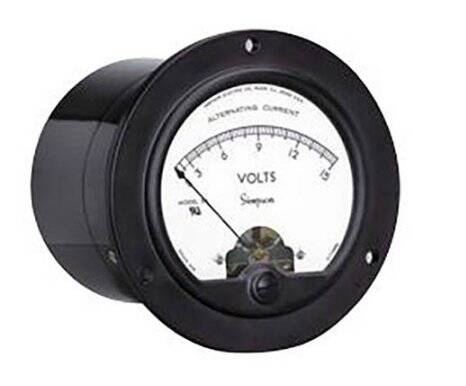

Two different sizes, 2½” and 3½”, are available in this popular style. Round meters are made of rugged high density black plastic cases with glass windows and are UL recognized. All AC meters listed have an iron-vane type movement and are calibrated at 60 Hz. Call for sizes and ranges not shown.

UL Recognized
2½” and 3½” Sizes
Black Plastic Case with Glass Window
Precise Spade Pointer
Custom Scales & Ranges Available

Catalog Page 058b Simpson-Round_datasheet

Model

Type

Range

Scale

Clear

SKU: N/A Categories: Ammeters, Analog Panel Meters, Simpson, Voltmeters

Show Advanced Filters

products found

Item #	Model	Type	Range	Scale	P/N
00950	55 - 3-1/2	AC Ammeters	0-1	0-1	950
02100	155 - 2-1/2	AC Ammeters	0-1	0-1	2100
00960	55 - 3-1/2	AC Ammeters	0-1.5	0-1.5	960
02150	155 - 2-1/2	AC Ammeters	0-10	0-10	2150
01060	55 - 3-1/2	AC Ammeters	0-5A	0-100	1060
01001	55 - 3-1/2	AC Ammeters	0-10	0-10	1001
02210	155 - 2-1/2	AC Ammeters	0-5A	0-100	2210
02160	155 - 2-1/2	AC Ammeters	0-15	0-15	2160
01010	55 - 3-1/2	AC Ammeters	0-15	0-15	1010
02220	155 - 2-1/2	AC Ammeters	0-5A	0-150	2220
01070	55 - 3-1/2	AC Ammeters	0-5A	0-150	1070
02120	155 - 2-1/2	AC Ammeters	0-2	0-2	2120
02170	155 - 2-1/2	AC Ammeters	0-25	0-25	2170
00970	55 - 3-1/2	AC Ammeters	0-2	0-2	970
01080	55 - 3-1/2	AC Ammeters	0-5A	0-200	1080
02130	155 - 2-1/2	AC Ammeters	0-3	0-3	2130
01020	55 - 3-1/2	AC Ammeters	0-25	0-25	1020
01090	55 - 3-1/2	AC Ammeters	0-5A	0-250	1090
02240	155 - 2-1/2	AC Ammeters	0-5A	0-250	2240
00980	55 - 3-1/2	AC Ammeters	0-3	0-3	980
01100	55 - 3-1/2	AC Ammeters	0-5A	0-300	1100
02180	155 - 2-1/2	AC Ammeters	0-30	0-30	2180
01030	55 - 3-1/2	AC Ammeters	0-30	0-30	1030
01040	55 - 3-1/2	AC Ammeters	0-50	0-50	1040
02190	155 - 2-1/2	AC Ammeters	0-50	0-50	2190
02140	155 - 2-1/2	AC Ammeters	0-5	0-5	2140
00990	55 - 3-1/2	AC Ammeters	0-5	0-5	990
02260	155 - 2-1/2	AC Ammeters	0-5A	0-500	2260
01110	55 - 3-1/2	AC Ammeters	0-5A	0-500	1110
02200	155 - 2-1/2	AC Ammeters	0-5A	0-75	2200
05410	55 - 3-1/2	AC Milliammeters	0-100	0-100	5410
06080	155 - 2-1/2	AC Milliammeters	0-250	0-250	6080
05420	55 - 3-1/2	AC Milliammeters	0-250	0-250	5420
35069	55 - 3-1/2	AC Milliammeters	0-150	0-150	35069
05380	55 - 3-1/2	AC Milliammeters	0-15	0-15	5380
08460	55 - 3-1/2	AC Voltmeters	0-100	0-100	8460
05400	55 - 3-1/2	AC Milliammeters	0-50	0-50	5400
05430	55 - 3-1/2	AC Milliammeters	0-500	0-500	5430
08420	55 - 3-1/2	AC Voltmeters	0-10	0-10	8420
09320	155 - 2-1/2	AC Voltmeters	0-250	0-200	9320
08470	55 - 3-1/2	AC Voltmeters	0-150	0-150	8470
08430	55 - 3-1/2	AC Voltmeters	0-15	0-15	8430
09310	155 - 2-1/2	AC Voltmeters	0-150	0-150	9310
08480	55 - 3-1/2	AC Voltmeters	0-250	0-200	8480
08440	55 - 3-1/2	AC Voltmeters	0-25	0-25	8440
09330	155 - 2-1/2	AC Voltmeters	0-300	0-300	9330
08490	55 - 3-1/2	AC Voltmeters	0-300	0-300	8490
08450	55 - 3-1/2	AC Voltmeters	0-50	0-50	8450
09340	155 - 2-1/2	AC Voltmeters	0-500	0-500	9340
08410	55 - 3-1/2	AC Voltmeters	0-5	0-5	8410
09290	155 - 2-1/2	AC Voltmeters	0-50	0-50	9290
08500	55 - 3-1/2	AC Voltmeters	0-500	0-500	8500
08510	55 - 3-1/2	AC Voltmeters	0-750	0-750	8510
