Pyromation Temperature Transmitters
Description

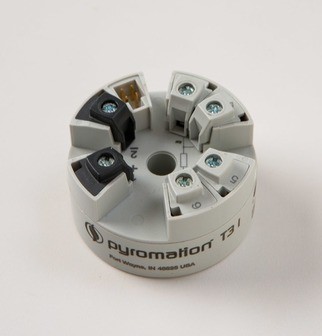

The T31 programmable RTD temperature transmitter is a two-wire transmitter with an analog output. It has measurement input for Pt100 and Pt1000 resistance thermometers (RTDs) in 2-, 3- or 4-wire connections. Setup of the transmitter is done using the communication cable and Pyromation PC software. These small units can be installed in Pyromation connection heads or surface mounted using a 35 mm DIN rail clip.
Temperature transmitters send a scalable (4 to 20) mA signal from a temperature sensor to a control device without long, expensive runs of thermocouple or RTD wire. All Pyromation RTD temperature and thermocouple transmitters are programmable using the TransComm Light downloadable software package.
T31 Features:
- Pt100 or Pt1000 input
- 2-wire 4-20mA output
- Sensor break or short circuit detection
- T/C head mounting
- CSA certified for use in specified Hazardous Locations
- PC programmable
- Operate in -40 to +85degC ambient temperature
Optional Accessories
Communication cable P/N 10303
DIN rail mounting clip P/N 10307
