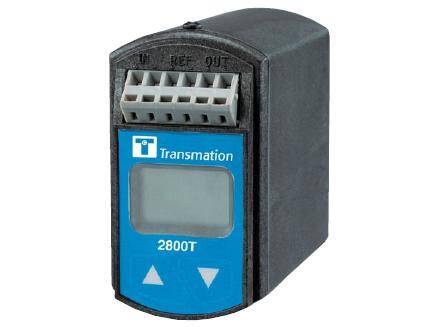

Pyragon Universal Temperature Transmitters


The Pyragon 2800T/2850T Temperature Transmitters have a built-in 5 digit display that indicates process inputs as well as °F, °C, Ω and %. They can be configured for virtually any application. In addition to millivolts and ohms, they accept both linearized and non-linearized inputs from B, E, J, K, N, R, S, T, thermocouples and 2,3,4 wire RTD’s with DIN 385 curve 100Ω, 200Ω, 500Ω, Pt., Burns 392 curve 100Ω, 200Ω, 500Ω, Pt., Nickel 110Ω, 120Ω, Copper 10Ω, and 50Ω Bulbs. All Pyragon Temperature Transmitters (formerly Transmation Transmitters) combine digital accuracy with a standard 4 to 20 mA output. They are available with both a standard 2wire mADC and HART Protocol.

    • Configurable for Eight T/Cs, 12 RTDs, Millivolts, Ohms
    • Unmatched Programmability: Input Type, Range, Zero, Span, Linear Output, Engineering Units; Calibration Runs
  • Exceptionally Economical: Reduces Inventory and Maintenance Costs
  • Built for Reliability: RFI Protected, Isolated, Environmentally Tough, Five-Year Warranty
Pyragon 2800T/2850T Temperature Transmitter Specs

Catalog-Page-86                        Pyragon-Series 2000 Brochure

products found
Item # Description Price
2800TUniversal Temperature Transmitter, Digital Display (NI FM Approved)$705.00
2800T-EXP2800T in Explosion Proof Housing$1,040.00
2850T2800T with HART Protocol$760.00
100665-65235 mm DIN Rail Adaptor—2800T$45.00
100665-65132 mm DIN Rail Adaptor—2800T$45.00
