PIE Multifunction Calibrator

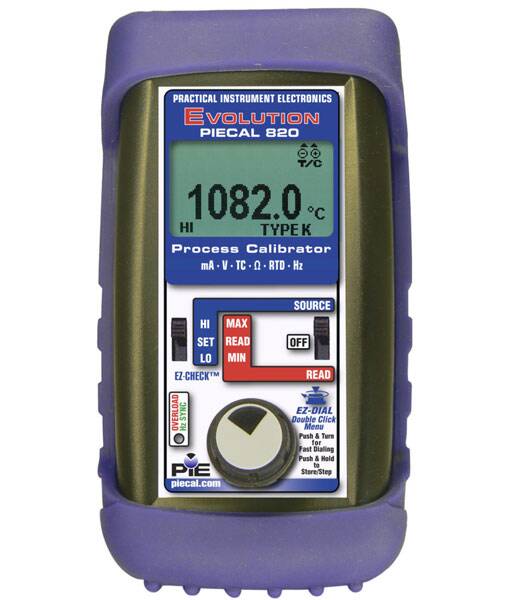

The rugged PIECAL 820 combines the functions of RTD, thermocouple, process voltage & loop calibrators in one handheld instrument. It will also source and measure resistance to 4kohms and frequency to 20kHz. Continuity check and DC voltage measurements aid system troubleshooting. The intuitive EZ-DIAL Double Click Menu makes it simple to set up. Icons on the display indicate where to plug in the test leads. Store any three output settings for instant recall with the EZ Check switch. Choose between 2, 3, 5 & 11 steps to automatically increment the output in 100%, 50%, 25% or 10% of span. Select RAMP to smoothly increase and decrease the output between Zero and Span. Set a step/ramp time of 5-60sec to match the system response. HART™ resistor included.

Multifunction Calibrator
• 6 Functions: Milliamps, Volts, Frequency, Thermocouples, RTDs, Ohms
• Calibrate Directly in °C/°F
• Power Transmitters & Loops
• Check Loop & Wiring Continuity
• Calibrate Flow Meters & Speed Sensors
• Simulate 2-Wire Transmitters
• 3 Saved Settings + MIN/MAX Recall
• Automatic Step & Ramp
• Easy Dial Operation & Backlit LCD

The PIECAL 820Elite adds pH sourcing and pressure calibration to the PIECAL 820 capabilities. It features an extra decade of resolution on mA, Volts & ohms, plus tighter accuracies on all functions. Loop problems are easier to troubleshoot with patented diagnostics for ground fault and current leakage detection.

High Accuracy Calibrator
• 8 Functions
• 0.02% Basic Accuracy
• Diagnose Ground Faults & Current Leakage
• Simulate pH Probes
• Check Pressure with Optional Modules

The deluxe PIECAL 830 expands the capabilities of the 820Elite by adding sophisticated troubleshooting tools. It displays the condition of a live loop by showing current, voltage & resistance on one screen. The isolated universal transmitter channel can substitute for a faulty transmitter to verify the loop operation. The 830 will simultaneously simulate the temperature, frequency, pH or pressure input to a transmitter while outputting 24V DC to power the transmitter & displaying the 2 Wire Transmitter output.

Two-Channel Calibrator
• 8 Functions + 5 Troubleshooting Tools
• Diagnose Ground Faults & Current Leakage
• Simultaneously Display Loop Current, Voltage & Resistance
• Isolated Transmitter for Millivolts, Temperature, Frequency, or Pressure
• 3 Saved Settings plus Step & Ramp

PIE Multifunction Calibrator Specs

Catalog Page_163c

This product is currently out of stock and unavailable.

products found
Item # Description
PIECAL820EliteHigh Accuracy Multifunction Process Calibrator
PIECAL830Two Channel Multifunction Process Calibrator
PIECAL820Multifunction Process Calibrator
