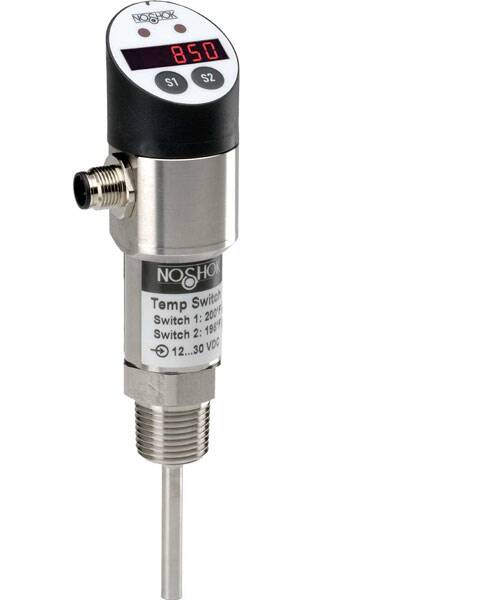

Noshok 850 Series Electronic Temperature Transmitter / Switch

Description

The NOSHOK 850 Series Electronic Indicating Temperature Switch/Transmitters deliver precision indicating and switching control. They utilize PT100 technology to provide continuous temperature monitoring, electronic temperature switching, and transmission of analog 4-20mA output while providing local digital indication. They allow for one or two switching outputs as well as an optional analog output. They are commonly used for mechanical engineering, heating & cooling circuits, air conditioning technology, plant construction, and environmental technology

  • Platinum RTD sensor
  • Switch and analog outputs
  • 4-digit LED display
  • Pushbuttons adjust set points, switch function & analog output span
  • Measuring insert replaceable without opening process connection
  • IP67 protection with optional cover

Two buttons on top allow simple adjustment of the temperature set points, reset points, switching functions and the measuring range of the optional analog output. These extensive features and wide measuring range (between -300°F and 1100°F/ -200°C and 600°C) cover the majority of temperature measuring and switching tasks.

A variety of stem lengths, which are also available with adjustable insertion lengths, add to the versatility of the NOSHOK 850 Series. All wetted parts as well as the housing are made of stainless steel for corrosion protection and durability.

Catalog-Page-109a                             Noshok-850-Datasheet

Configure Product

Reset Form
View Result
Model
Process Connection
Range
Stem Length
Stem Diameter
Options
Product #:
