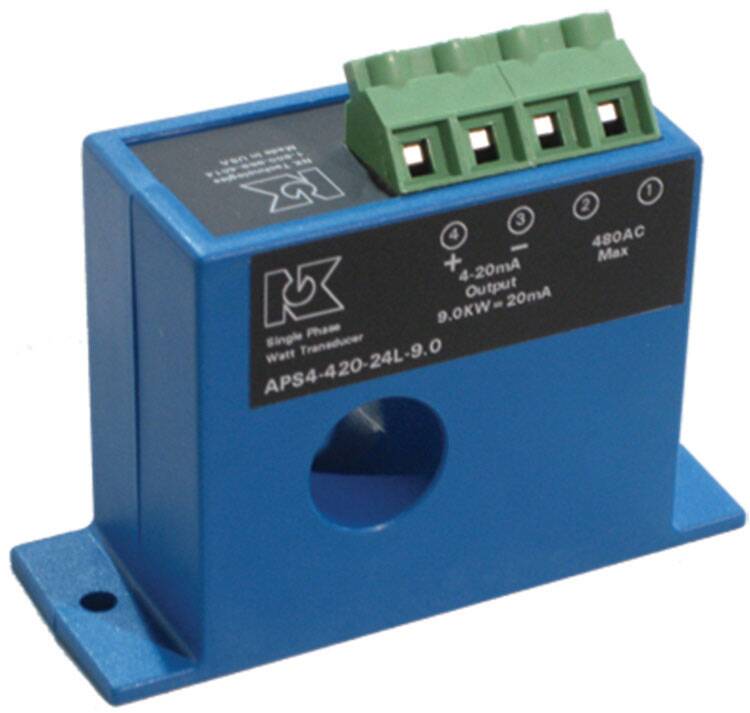

Single-Phase Power Transducers – APS Series – NK Technologies


The APS Series measures true power (HP or kW) on balanced loads. Ideal for mixing, grinding, machining and pumping applications where power measurement is needed, the APS Series includes a CT, voltage sensor and output signal conditioner in a single package designed for easy installation.

APS Series kWH Power Transducers offer an inexpensive way to measure kWH on single- and three-phase balanced loads. The APS Series constantly measures motor power consumption, which is proportional to the amount of work being done and an indication of the motor load. Available for input currents up to 180 A and voltages up to 600 VAC.

  • Also measures 3Ø balanced loads
  •  Direct connect to 120–600 VAC
  •  Input current to 180A
  •  4-20 mA output
  •  Loop powered
  •  Easy two-wire installation
  •  5 year warranty
NK Tech APS Specs

Catalog Page 101a              APS-Datasheet
