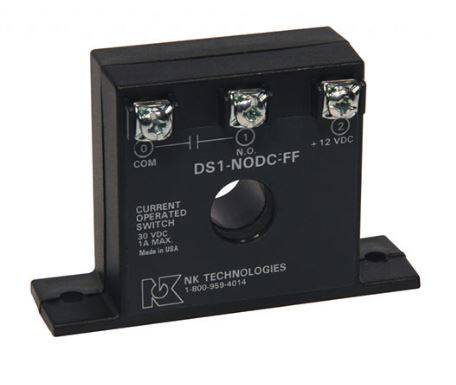

DC Current Switches – DS1 Series – NK Technologies

Description

The DS1 Series Current Sensing Switches are designed to trip a solid-state contact when there is DC current through the sensor window. The sensor can be used to interlock two operations for safety. When one load is energized, the contact will keep another from also energizing. The power supply voltage and the controlled circuit voltage can be derived from a single source or separate sources. The monitored circuit can be any DC voltage and any amount of current as long as the conductor will pass through the window. The monitored circuit is completely isolated from the control circuit. If there is 3/4 of one amp through the aperture, the output will change state.

  • Compact, one-piece design: Fits in easily amongst motor starters and power supplies in crowded control panels
  •  Input Isolation: Safer than shunt/relay combinations
  •  Unique power supply connection: Sensor power and switched load share a common point making installation easy
  • Built-in mounting feet: Simple, two-screw installation allows for secure mounting

Max. Current: 1000 A for 5 secs. or 500 ADC Continuous
Output: Normally Open (1 A @ 28 VDC) Solid-State Contact
Case Style: Solid-core, Front Terminals

DC Current Switches Specs

DS1 Datasheet                        DS1-Instructions

SKU: N/A Categories: , ,

products found
Item # Description Price
DS1-NODC-FFTrips at 0.75 ADC / Power Supply: 10–28 VDC / Aperture: 0.55″ dia.$110.00
