N30H Digital DC Volt / Amp Meter – Sifam Tinsley

Description

The Sifam Tinsley N30H series measure DC Current and Voltage up to 5 A and 600 V. They have a 5-digit three-color LED display (14 mm high), programmed in three intervals of the measured value. Meter programming is from the keyboard or through the RS-485  interface by means of the free delivered LPConfigprogram. They have four alarm outputs with signaling by LED diodes, in 6 different modes. Conversion of any measured value into a 0-4-20 mA or 0-10 V analog signal. Supply Voltage is 85-250V AC/DC or 20-40 VAC or 20-60 VDC. Dimensions are 3.78” (96mm) x 1.89” (48mm) x 3.67” (93mm).

  • 3-color, 5-digit LED Display
  • AC or DC Operation
  • Min/Max Storage
  • Up to 4 Alarm Outputs with 6 Alarm Modes
  • RS-485 Modbus & Analog Output Options
  • Galvanic Isolation – Inputs/Outputs/Power
  • Real Time Clock
  • IP65 Front

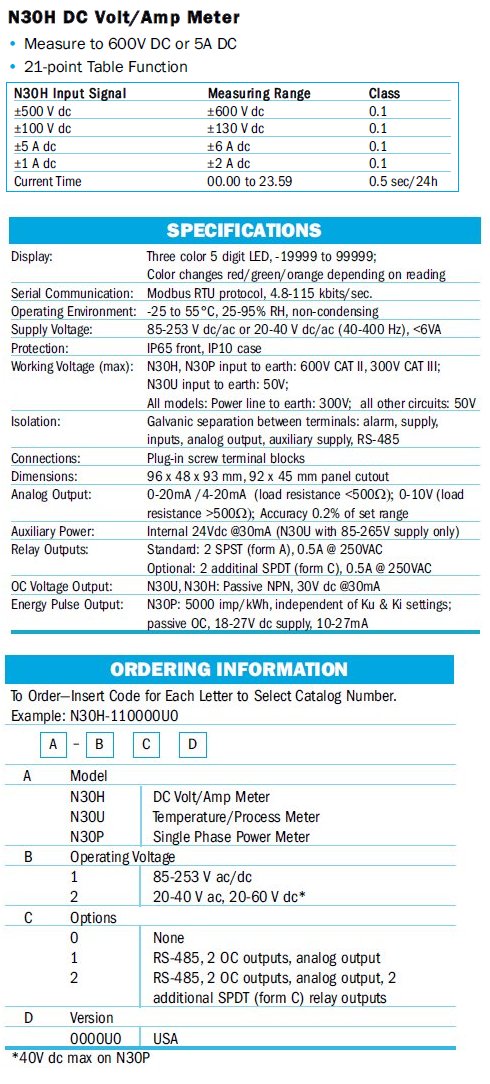

Catalog Page 023c                   Sifam-N30H-datasheet

This product is currently out of stock and unavailable.

Show Advanced Filters

products found
Item # Function Operating Voltage Options P/N
N30H-100000U0DC Volt/Amp Meter85-253 V ac/dcNoneN30H-100000U0
N30H-110000U0DC Volt/Amp Meter85-253 V ac/dcRS-485, 2 OC outputs, analog outputN30H-110000U0
N30H-120000U0DC Volt/Amp Meter85-253 V ac/dcRS-485, 2 OC outputs, analog output, 2 additional SPDT relay outputsN30H-120000U0
N30H-200000U0DC Volt/Amp Meter20-40 V ac, 20-60 V dcNoneN30H-200000U0
N30H-210000U0DC Volt/Amp Meter20-40 V ac, 20-60 V dcRS-485, 2 OC outputs, analog outputN30H-210000U0
N30H-220000U0DC Volt/Amp Meter20-40 V ac, 20-60 V dcRS-485, 2 OC outputs, analog output, 2 additional SPDT relay outputsN30H-220000U0
