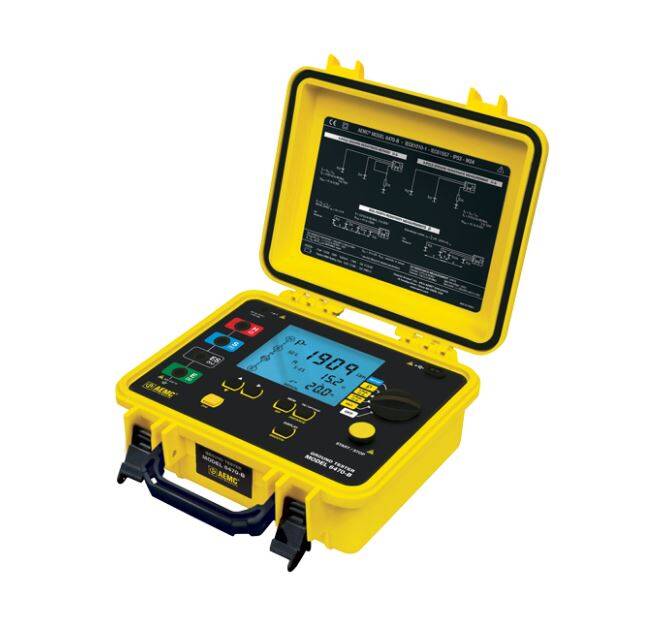

Multi-Function Ground Resistance Tester Models 6470B & 6472 – AEMC

Description

The AEMC Digital Ground Resistance Tester Model 6470-B and 6472 perform grounding resistance, earth coupling measurements, soil resistivity and bonding tests. These direct reading testers measure from 0.01 to 99,999Ω, and are auto-ranging, automatically seeking out the optimum measurement range test current and test frequency. Easy-to-use — simply connect the leads, select the test mode, Press-to-Measure and read the results. Up to 512 test results can be stored in internal memory for later recall to the display or download to a PC for analysis and hard copy reports.

  • 2- and 4-Wire Bond Resistance/Continuity measurement
  • 3-Point Fall-of-Potential measurement with manual/automatic frequency selection
  • 4-Point soil resistivity measurement with automatic calculation of Rho & user selection of Wenner or Schlumberger method
  • 3-Point earth coupling measurement
  • Frequency scan 40-513Hz for testing in electrically noisy environments
  • Selectable test voltage of 16 or 32V up to 250mA of test current
  • Automatic recognition of all electrode connections & resistance
  • Stores up to 512 complete test results
  • Optically isolated USB communication
  • Rechargeable NiMH batteries from wall charger or vehicle power
  • Rugged dustproof and rainproof field case
  • Includes DataView® software for remote operation, data storage, real-time display, analysis, report generation & system configuration

Model 6742 adds:

  • Manual and automatic frequency scan to 5078Hz
  • Measures Ground Resistance using the 2 clamp method (selective ground testing)
  • Measures Ground Impedance up to 5kHz to test lightning strike protection



Model 6470-B – Cat. #2135.01   &   Model 6472 – Cat. #2135.51:

Includes carrying bag, 110/240V power adapter with US power cord, optical USB cable, rechargeable NiMH battery pack, and a USB stick with DataView® software, ground tester workbook and user manual.



Model 6470-B – Cat. #2135.03   &   Model 6472 – Cat. #2135.53:  (300 ft Kit)

Includes meter, two carrying bags, two 300 ft color-coded leads on spools (red/blue), two 100 ft color-coded leads (hand-tied, green/black), two 5 ft color-coded leads (red/blue), 110/240V power adapter with US power cord, optical USB cable, four T-shaped auxiliary ground electrodes, set of five spaded lugs, one 100 ft tape measure, rechargeable NiMH battery pack, and a USB stick with DataView® software, ground tester workbook and user manual.



Model 6470-B – Cat. #2135.04   &   Model 6472 – Cat. #2135.54:  (500 ft Kit)

Includes meter, two carrying bags, two 500 ft color-coded leads on spools (red/blue), two 100 ft color-coded leads (hand-tied, green/black), one 30 ft lead (green), two 5 ft color-coded leads (red/blue), 110/240V power adapter with US power cord, optical USB cable, four T-shaped auxiliary ground electrodes, set of five spaded lugs, one 100 ft tape measure, rechargeable NiMH battery pack, and a USB stick with DataView® software, ground tester workbook and user manual.

Catalog-Page-159                   6470-B-DS                         5472-DS

Clear
SKU: N/A Categories: ,

products found
Item # Item Name Price
AE/2135.54Ground Resistance Tester Model 6472 4-point Kit – 500/100 ft leads$4,705.00
AE/2135.53Ground Resistance Tester Model 6472 4-point Kit – 300/100' leads, electrodes, lugs & case$4,545.00
AE/2135.03Ground Resistance Tester Model 6470B 4-point Kit – 300/100' leads, electrodes, lugs & case$2,965.00
AE/2135.04Ground Resistance Tester Model 6470B 4-point Kit – 500/100 ft leads$3,125.00
AE/2135.71AC Current Probe Model MN82 for use with Model 6472$304.00
AE/2135.72AC Current Probe Model SR182 for use with Model 6472$385.00
AE/2135.51Ground Resistance Tester Model 6472$3,960.00
AE/2135.01Ground Resistance Tester Model 6470B$2,380.00
