Moving Coil DC Ammeters and Voltmeters (DIN) – Crompton

Description

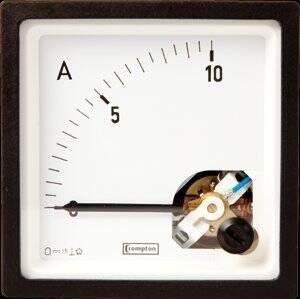

Crompton DIN analog Panel Meters – A range of 48, 72, 96 & 144mm DIN style panel meters measuring all electrical parameters and featuring moving coil or moving iron movements. All meters incorporate slide-in 90° short scales dials and terminal covers as standard. A range of customized options is available.

Moving Coil Meter

Centre cored, self shielding moving coil movement, using pivots, hairsprings and sprung jewels. Seven variations have been designed in movement ranges: all intermediate ranges are achieved by shunting the next lowest range. All DC voltmeters are 1000 ohms per volt, rectified product run at 900 ohms per volt. Millivolt meters use the 5 milliamp movement.

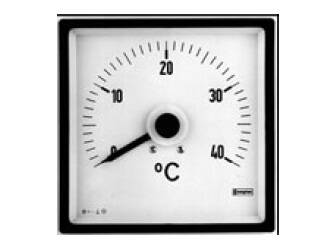

Short Scale (90°)    Long Scale (240°)

  • Model E242= 48 x 48 mm (90° short scale only)
  • Model E243= 72 x 72 mm (90°short or 240° long scale)
  • Model E244= 96 x 96 mm (90°short or 240° long scale)
  • Model E246= 144 x 144 mm (90°short or 240° long scale)
  • 1.5% Accuracy Class

The linear scale is calibrated down to zero & accuracy maintained down to 10%.

Standard dials are white matte with black printed scales and bar knife-edge pointers. Black dials with white or yellow scales and pointers are also available.

Suppressed zero (e.g. 4-20mA, 1-5V) models also available.

Catalog Page 072                        Crompton-DIN-analog-DS
