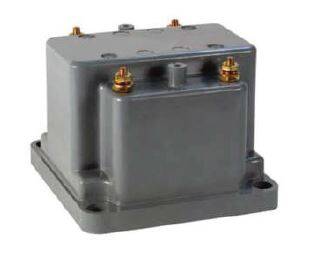

Model 460 AC Voltage Transformers – Weschler

Description

Weschler Model 460 Voltage Transformers: Single Phase; Accuracy: 0.6W, 1.2 X ; Thermal Rating:150VA. These transformers are encased in a thermoplastic case with the core and windings encapsulated in resin. They are designed for line to line operation but may also be used in line to neutral or line to ground configuration at 58% of rated voltage.

It is recommended that a 1.6 Amp fuse be used in the secondary to protect the transformer

  • 600V Insulation Level, 10kV BIL
  • Accuracy Class 0.6W, 1.2x at 60Hz
  • 150VA at 30°C, 100VA at 55°C
  • 60Hz
  • CSA & UR Approved

Terminals are brass studs No. 10-32 with one lockwasher, flatwasher and regular nut.

Weschler 460 specs

Catalog-Page-92                        Weschler-460-Datasheet

This product is currently out of stock and unavailable.

Show Advanced Filters

products found
Item # Voltage Rating (line to line) Ratio
460-600600:1205:1
460-480480:1204:1
460-300300:1202.5:1
460-288288:1202.4:1
460-240240:1202:1
460-208208:1201.73:1
460-120120:1201:1
460-06969.3:1200.58:1
460-380380:1203.15:1 for 50 Hz
