Insulation Resistance Testers – MIT515, MIT525, MIT1025, MIT1525 5kV-15kV – Megger
MIT515 (5 kV), MIT525 (5 kV), MIT1025 (10 kV) & MIT1525 (15 kV) are the newest in Megger’s line of insulation testers >1 kV. These instruments are designed based on Megger’s extensive knowledge of insulation testing (100+ years of experience) and significant feedback from actual end users. Megger has taken the best insulation testers in the world and improved them to add functionality, make them easier to use and easier to transport. They include Megger’s patented digital/analog display (real-time pointer movement), a CATIV safety rating at all terminals and a unique dual case design.
• Industry best guard terminal accuracy
• Compact and lightweight for easy transport and use
• PI, DAR, DD, SV and ramp test
• Unique dual case design provides additional user protection
• Lithium-ion battery – extended capacity, rapid charge
• Advanced memory with time/date stamp
• CATIV 600 V safety rating on all terminals
If you need basic insulation testing, this Megger meter is suitable. It has a variable voltage of 50 Volts to 5 kiloVolts which allow it to measure resistance from 10 kΩ to 10 TΩ.
This Megger insulation meter is similar to the MIT515 but with additional features. The MIT525 can conduct automatic Step Voltage, Ramp and Dielectric Discharge tests. It also features a real-time clock and PC connectivity through USB and RS232 ports. The PC connectivity allows advanced results analysis using the PowerDB Lite software.

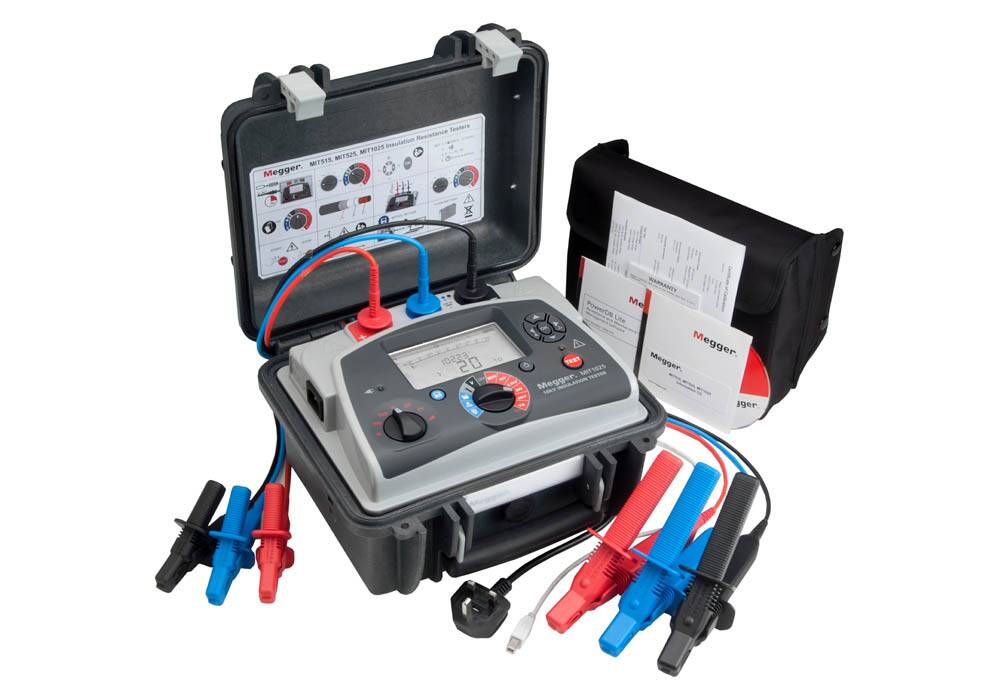

The MIT1025 is like the MIT525 when it comes to features but has a higher test voltage output and a wider range of resistance measurement
The top of the new range MIT1525 performs insulation resistance tests up to 15 kV with a 30 TΩ maximum resistance and an accuracy of ±5 % from 1 MΩ up to 3 TΩ
|Item #||Item Name||Test Voltage (V dc)||Resistance||Digital||Tests|
|ME/MIT515-EN||Megger MIT515 (1001-936)||250 500 1000 2500 5000||10 kohm – 10Tohm||IR,PI,DAR|
|ME/MIT1525-EN||Megger MIT1525 (1002-909)||1000 2500 5000 10000 15000||10 kohm - 30 Tohm||USB, RS232||IR,PI,DAR,SV,DD,Ramp|
|ME/MIT1025-EN||Megger MIT1025 (1001-944)||500 1000 2500 5000 10000||10 kohm - 20 Tohm||USB, RS232||IR,PI,DAR,SV,DD,Ramp|
|ME/MIT525-EN||Megger MIT525 (1001-940)||250 500 1000 2500 5000||10 kohm – 10Tohm||USB, RS232||IR,PI,DAR,SV,DD,Ramp|
