MINI Series Digital Panel Meters – Texmate
Description

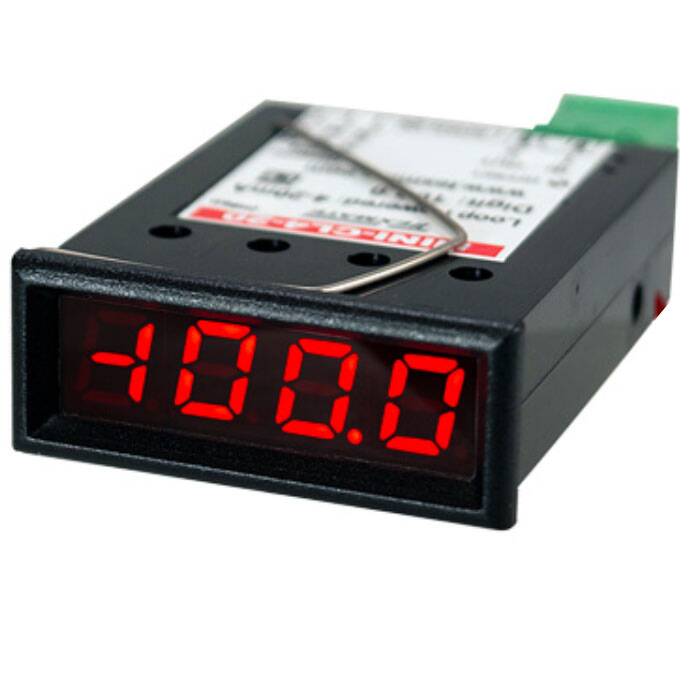

The Texmate MINI Series are miniature digital panel meters with a 7mm (0.276) LED display. They are designed for applications where panel space is limited. Choose from Voltmeter and Process Ammeter models with:
- 3½ digit red LED display
- Fits 0.54″ x 1.4″ panel cutout
- Case depth only 1.8″

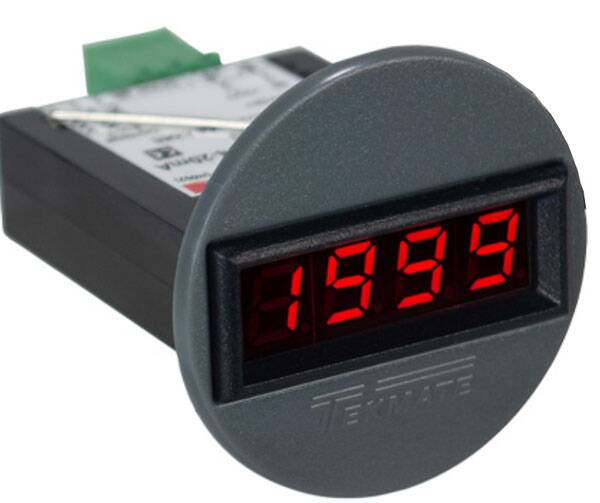

- Adapter for a 30mm round panel cutout is available (P/N MINIDISKG)
The MINI-CL4-20 is a loop powered meter with 4-20mA input. The standard display scaling is 0 to 100.0. Decimal position is user-selectable via external jumper.
The MINI-5VDIM is 5V DC-powered voltmeter with ±200mV/2V/20V/200V input ranges. Requires only 41mA. The display intensity is externally dimmable using a potentiometer.
products found
| Item # | Power | Description |
|---|---|---|
| MINI-CL4-20 | Loop Powered | 4 to 20 mA, 3.5-Digit DPM |
| MINI-5VDIM | 5VDC | 200mV/2V/20V/200V, 3.5-Digit DPM |
