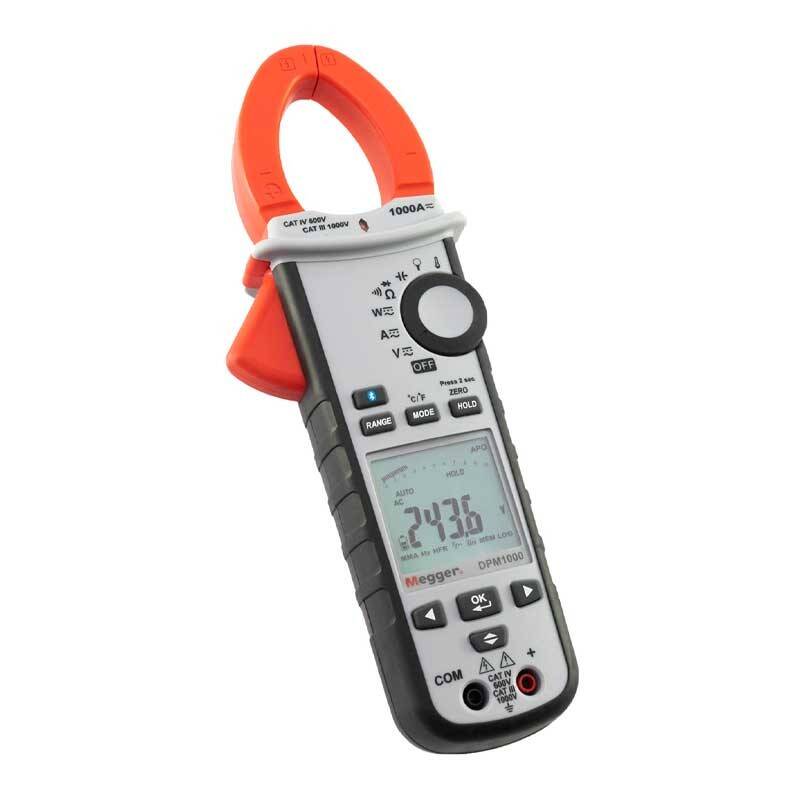

Megger Power Clamp Meter – DPM1000

Description

The new Megger DPM1000 power clamp meter combines the functionality of power meter, harmonics meter and data logger in one easy-to-use package. The design meets the requirements of BSEN 61010-1 CAT IV 600 V for supply-side applications. A large, backlit LCD clearly displays all measurements that can be selected at the touch of a button or when rotating the selection dial. With clamping jaws and test leads, it offers automatic non-contact voltage detection and accurately measures AC/DC currents and voltages up to 1000 A and 1000 V.

It is ideally suited to measure DC, AC, pulsed and mixed currents up to 1000 A, the power clamp meter comes complete with test leads and thermocouple probe. By either clamping the jaws around the appropriate conductor, using the supplied test leads or working with a combination of both techniques, power measurements are made easy with the ergonomic and easy-to-use unit. With auto-ranging and three-phase rotation indication, this meter detects all power-related parameters, including energy consumption, frequency, total harmonic distortion, distortion factor, and capacitance.

Features

  • 10000 count digital display

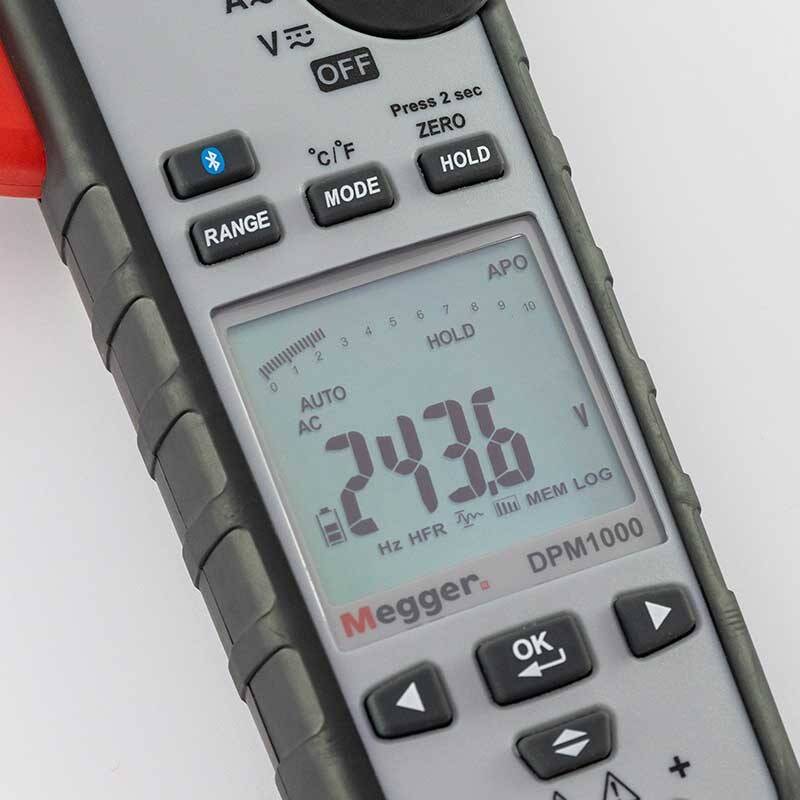

  • Active backlight with large scale display
  • VoltSeek (non-contact voltage detection)
  • Analog bar graph
  • True RMS reading on AC and AC+DC mode
  • Memory save/load (up to 1000 records)
  • Data logger (up to 9999 sample values)
  • Bluetooth communication
  • Torch turns on when clamp jaws open
  • Auto selecting 1000 A AC/DC current measurement
  • Auto selecting 1000 V AC/DC voltage measurement
  • 100 kΩ resistance measurement
  • Continuity beeper
  • Frequency counter
  • Power and power factor measurement
  • Total harmonics distortion
  • Harmonics measurement: 1st to 25th
  • Capacitance capability
  • °F/°C temperature function
  • Inrush current
  • Smart data hold
  • Phase rotation
  • CAT IV 600 V/CAT III 1000 V safety standard

Applications

  • Power electronics
  • Power engineering

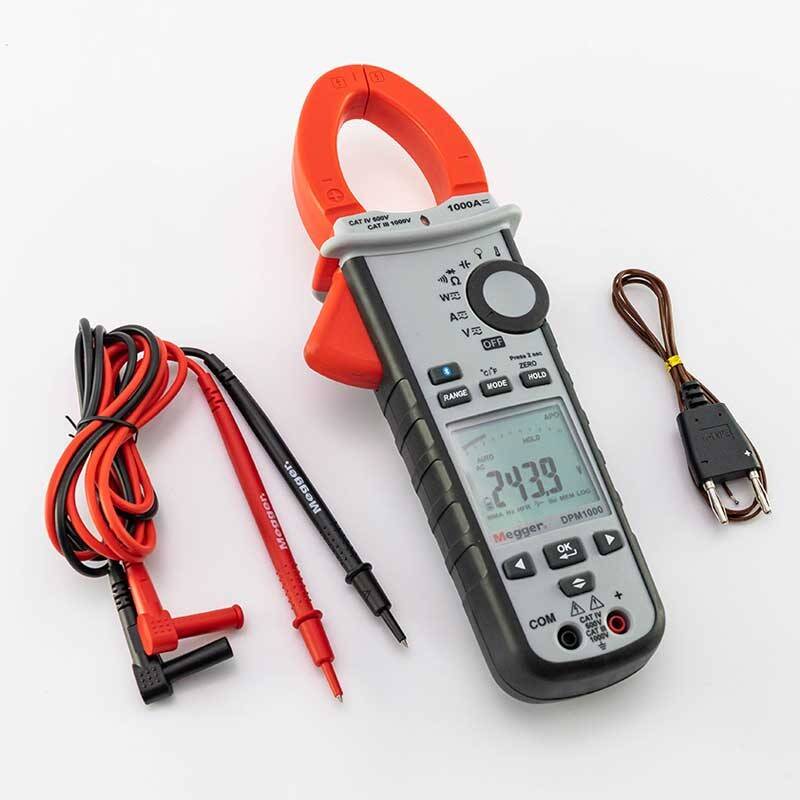

What’s included

  • Megger DPM1000 Power Clamp Meter
  • Test Lead Set (Black, Red)
  • Test Probes (Black, Red)
  • Crocodile Clips (Black, Red)
  • Temperature Probe
  • Carrying Case
  • 6 x AAA Batteries
  • User Manual



Megger-DPM1000-Datasheet

This product is currently out of stock and unavailable.


products found
Item # Model Description
1013-356DPM1000Megger Power Clamp Meter
