Lascar WIFI Temperature Loggers
The Lascar EL-WiFi-T series in the EasyLog WiFi range of sensors measures the temperature and humidity (TH models) of the environment in which it is situated. Data is streamed wirelessly over any compatible WiFi network and can be viewed on a PC using free software or on the EasyLog Cloud or App.
To configure the sensor for use on a given wireless network, either connect it via USB to a PC running EasyLog WiFi software on the network or configure wirelessly using the EasyLog Cloud app on mobile phone with access to the network. The sensor can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application or EasyLog Cloud (max 30 days at 10-second sample interval).
The sensor is IEEE 802.11bgn* (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST). The EL-WiFi-T series have a protection rating of IP55. The units are freestanding but can be attached to a wall or surface using the bracket provided. The unit can be clipped in and out of the bracket as required.
- Temperature, Humidity or Temperature Probe Data Logging available
- WiFi capability and integrated display
- Wireless connectivity to PC via WiFi
- View and analyze multiple sensors using the PC application, including immediate graphing of historic data
- Rechargeable internal lithium polymer battery
EL-WiFi-T EL-WiFi-TH EL-WiFi-TP
|Item #||Description||Temperature Range|

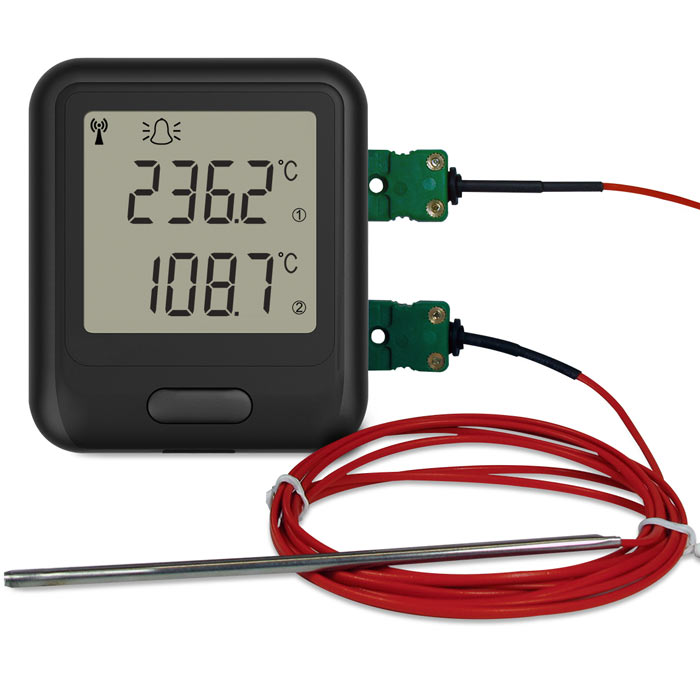

|EL-WiFi-DTC||Dual Channel Thermocouple Logger||0 to 200°C (32 to 392°F)|
|EL-WiFi-TC||Thermocouple Logger||0 to 200°C (32 to 392°F)|
|EL-WiFi-TP||Temperature Logger with external probe||-40 to 125°C (-40 to 257°F)|
|EL-WiFi-TH||Temperature, Humidity & Dew Point Logger||-20 to +60°C (-4 to +140°F)|

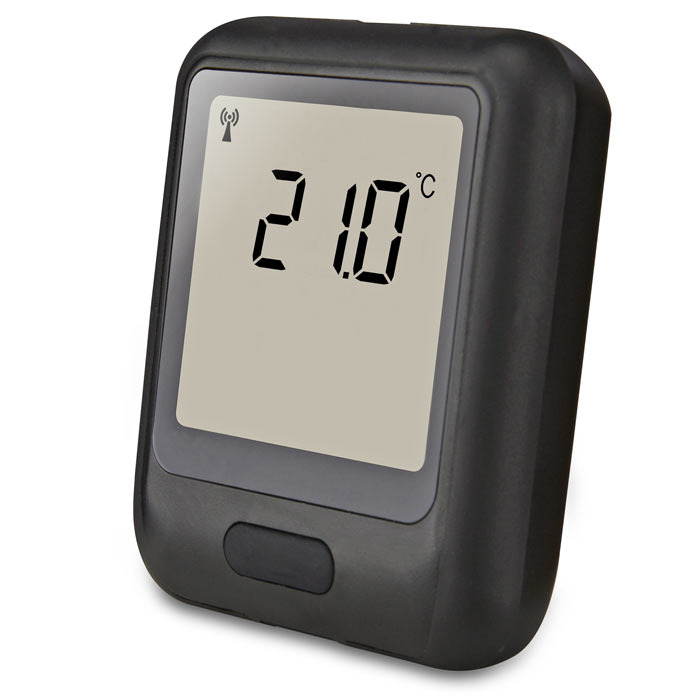

|EL-WiFi-T||Temperature Logger||-20 to +60°C (-4 to +140°F)|
